ATSAMR21G18

Status: In Production

Features:

  • Single-chip ARM® Cortex®-M0+ based 32-bit Microcontroller
  • Low power 2.4GHz transceiver for IEEE 802.15.4 and zigbee applications
  • 256KB Flash
  • Maximum Operating Frequency: 48 MHz
  • 128-bit AES crypto engine
  • 32-bit MAC symbol counter
  • Temperature sensor
  • Automatic transmission modes
  • AT45DB041E 4-Mbit DataFlash
  • ATECC508A CryptoAuthentication Device
  • Secure Hardware-based Key Storage
  • Performs High-Speed Public Key Algorithms
  • NIST Standard P256 Elliptic Curve Support
  • SHA-256 Hash Algorithm with HMAC Option
  • Guaranteed Unique 72-bit Serial Number
  • High-quality FIPS Random Number Generator (RNG)
  • Intrusion Latch for External Tamper Switch
  • Single 1.8V - 3.6V supply
  • Radio module with a link budget of 103dBm
  • FCC / ETSI compliant RF front end with harmonic filter
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

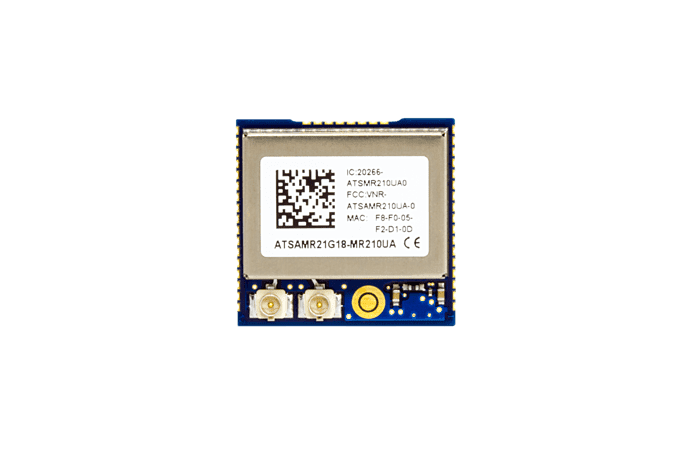

The ATSAMR21G18-MR210UA is a 19 x 20mm wireless module with a solder mount footprint. It integrates an ATSAMR21G18 IC together with a serial flash and a crypto authentication device. The ATSAMR21G18-MR210UA is based on the ATSAMR21G18A, a IEEE 802.15.4 compliant single chip that combines an ARM® Cortex®-M0+ based 32-bit microcontroller and best-in-class 2.4GHz RF transceiver. It offers an excellent RF performance, with a link budget of 103dBm while consuming 50% less active current than existing offerings.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • Single-chip ARM® Cortex®-M0+ based 32-bit Microcontroller
    • Low power 2.4GHz transceiver for IEEE 802.15.4 and zigbee applications
    • 256KB Flash
    • Maximum Operating Frequency: 48 MHz
    • 128-bit AES crypto engine
    • 32-bit MAC symbol counter
    • Temperature sensor
    • Automatic transmission modes
    • AT45DB041E 4-Mbit DataFlash
    • ATECC508A CryptoAuthentication Device
    • Secure Hardware-based Key Storage
    • Performs High-Speed Public Key Algorithms
    • NIST Standard P256 Elliptic Curve Support
    • SHA-256 Hash Algorithm with HMAC Option
    • Guaranteed Unique 72-bit Serial Number
    • High-quality FIPS Random Number Generator (RNG)
    • Intrusion Latch for External Tamper Switch
    • Single 1.8V - 3.6V supply
    • Radio module with a link budget of 103dBm
    • FCC / ETSI compliant RF front end with harmonic filter
Parametrics
Name
Value
Type
RF MCU Modules
Output Power (dBm)
+3.5 dBm
Host Interface
I2C, SPI, UART
Package
Module
IO Pins
17
RF Module
Yes
RF Transceiver
Yes
Operating Temperature Range
-40C to +125C
Frequency Range
2.4 GHz
Rx Input Sensitivity (dB)
-98 dBm
Encryption
ECC508A
Antenna
U.FL
Antenna Diversity
Yes
Operating Voltage Range
1.8V to 3.6V
Flash
256
CPU
Cortex-M0+
Crypto Engine
ECC508A

Documents

Jump to:

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATZB-SAMR21-XPRO
ATZB-SAMR21-XPRO ( ATZB-SAMR21-XPRO )

The ZB SAM R21 Xplained Pro evaluation kit is an extension board to evaluate and develop using the ATSAMR21G18-MR210UA ZigBee module. Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAMR21G18-MR210UA module. The Xplained Pro extension kits offers additional peripherals to extend the features of the board and ease the development

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMR21G18A-MF
0.120600
0.752404
48
VQFN
7x7x1mm
Matte Tin
e3
ATSAMR21G18A-MFT
0.120600
1.281000
48
VQFN
7x7x1mm
Matte Tin
e3
ATSAMR21G18A-MU
0.120600
0.752404
48
VQFN
7x7x1mm
Matte Tin
e3
ATSAMR21G18A-MUT
0.120600
1.281000
48
VQFN
7x7x1mm
Matte Tin
e3
ATSAMR21G18A-MUTA6
0.120600
1.281000
48
VQFN
7x7x1mm
Matte Tin
e3
ATSAMR21G18-MR210UA
0.150000
48
MODULE
xxmm
ENIG
b4
ATSAMR21G18-MR210UAT
4.000000
48
MODULE
xxmm
ENIG
b4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
