ATSAMR21B18

Status: In Production

Features:

  • ATSAMR21 Single-chip ARM® Cortex®-M0+ based 32-bit Microcontroller with Low Power 2.4GHz Transceiver for IEEE 802.15.4 and ZigBee Applications with 256KB Flash and 16 I/O’s
  • Maximum operating frequency 48 MHz
  • 128-bit AES crypto engine
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

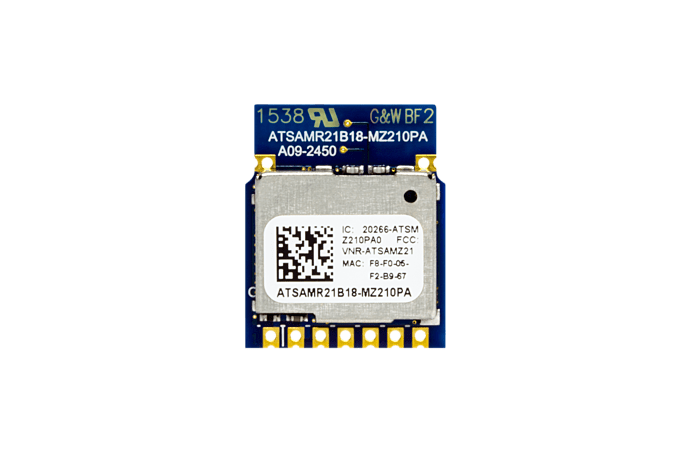

The ATSAMR21B18-MZ210PA is a 19.7mm x 16.3mm wireless module. It integrates an ATSAMR21E18 IC together with a serial data flash. The design allows a variety of mounting positions with SMT as well as TH mounting. The extended temperature range with operation up to 125°C is a distinguishing feature. The ATSAMR21B18-MZ210PA is based on the ATSAMR21E18, a IEEE 802.15.4 compliant single chip that combines an ARM® Cortex®-M0+ based 32-bit microcontroller and best-in-class 2.4GHz RF transceiver. It offers an excellent RF performance, with a link budget of 103dBm while consuming 50% less active current than existing offerings.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • ATSAMR21 Single-chip ARM® Cortex®-M0+ based 32-bit Microcontroller with Low Power 2.4GHz Transceiver for IEEE 802.15.4 and ZigBee Applications with 256KB Flash and 16 I/O’s
  • Maximum operating frequency 48 MHz
  • 128-bit AES crypto engine
  • 32-bit MAC symbol counter
  • Temperature sensor
  • Automatic transmission modes
  • MX25L2006EZUK-12G 2-Mbit DataFlash
  • Lowest cost RF front end design with PCB antenna
  • FCC / ETSI compliant harmonic filter
  • Single 2.7V - 3.6V supply
  • Extended industrial temperature range -40°C to 125°C
  • Easy access 2mm pin header with several alternative functions
  • High precision 16MHz crystal oscillator
Parametrics
Name
Value
Type
RF MCU Modules
Package
Module
RF Module
Yes
RF Transceiver
Yes
Operating Temperature Range
-40C to 125C
Operating Voltage Range
2.7V to 3.6V
Max Operating Frequency
48 MHz

Documents

Jump to:

Supporting Collateral

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMR21B18-MZ210PA
0.150000
9
MODULE
xxmm
ENIG
b4
ATSAMR21B18-MZ210PAT
3.000000
9
MODULE
xxmm
ENIG
b4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
