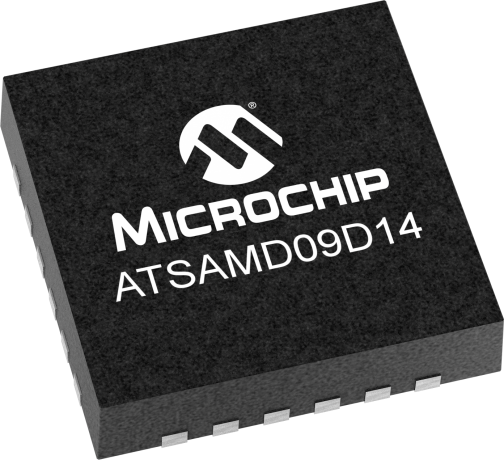

product primary image

ATSAMD09D14

Status: In Production

Features:

  • Single-cycle hardware multiplier
  • Micro Trace Buffer
  • 16KB in-system self-programmable Flash
  • 4KB SRAM Memory
  • Power-on reset (POR) and brown-out detection (BOD)
  • Internal and external clock options with 48MHDigital Frequency Locked Loop (DFLL48M) and 48MHto 96MHFractional
  • Digital Phase Locked Loop (FDPLL96M)
  • External Interrupt Controller (EIC)
  • 8 external interrupts
  • One non-maskable interrupt
  • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface
  • Idle and standby sleep modes
  • SleepWalking peripherals
  • 6-channel Direct Memory Access Controller (DMAC)
  • 6-channel Event System
  • One 16-bit TC with compare/capture channels
  • One 8-bit TC with compare/capture channels
  • One 32-bit TC with compare/capture channels, by using two TCs
  • 32-bit Real Time Counter (RTC) with clock/calendar function
  • Watchdog Timer (WDT)
  • CRC-32 generator
  • USART with full-duplex and single-wire half-duplex configuration
  • I2C Bus
  • SMBUS/PMBUS
  • SPI
  • LIN slave
  • Differential and single-ended input
  • 1/2x to 16x programmable gain stage
  • Automatic offset and gain error compensation
  • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution
  • 22 GPIO pins
  • 24-pin QFN
  • 2.4V – 3.63V
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The low-power Microchip's ATSAMD09D14 ARM® Cortex®-M0+ based Flash microcontroller is ideal for a wide range of home automation, consumer, metering and industrial applications. It features:

  • 16KB of Flash memory and 4KB of SRAM
  • Up to 48MHz operating frequency
  • Two serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, two 16-bit timer/counters, 32-bit Real-Time Clock and calendar, and one 10-channel 12-bit ADC
  • 2.4V to 3.63V power supply
  • Easy pin migration to Microchip's SAMD10D devices
  • Support from Atmel Studio, ASF

Supported by MPLAB X IDE and MPLAB Harmony.

Additional Features

    Processor

    • ARM Cortex-M0+ CPU running at up to 48MHz
      • Single-cycle hardware multiplier
      • Micro Trace Buffer

    Memories

    • 16KB in-system self-programmable Flash
    • 4KB SRAM Memory

    System

    • Power-on reset (POR) and brown-out detection (BOD)
    • Internal and external clock options with 48MHDigital Frequency Locked Loop (DFLL48M) and 48MHto 96MHFractional
    • Digital Phase Locked Loop (FDPLL96M)
    • External Interrupt Controller (EIC)
    • 8 external interrupts
    • One non-maskable interrupt
    • Two-pin Serial Wire Debug (SWD) programming, test and debugging interface

    Low Power

    • Idle and standby sleep modes
    • SleepWalking peripherals

    Peripherals

    • 6-channel Direct Memory Access Controller (DMAC)
    • 6-channel Event System
    • Two 16-bit Timer/Counters (TC), configurable as either:
      • One 16-bit TC with compare/capture channels
      • One 8-bit TC with compare/capture channels
      • One 32-bit TC with compare/capture channels, by using two TCs
    • 32-bit Real Time Counter (RTC) with clock/calendar function
    • Watchdog Timer (WDT)
    • CRC-32 generator
    • Two Serial Communication Interfaces (SERCOM), each configurable to operate as either:
      • USART with full-duplex and single-wire half-duplex configuration
      • I2C Bus
      • SMBUS/PMBUS
      • SPI
      • LIN slave
    • 12-bit, 350ksps Analog-to-Digital Converter (ADC) with up to 10 channels
      • Differential and single-ended input
      • 1/2x to 16x programmable gain stage
      • Automatic offset and gain error compensation
      • Oversampling and decimation in hardware to support 13-, 14-, 15- or 16-bit resolution

    I/O

    • 22 GPIO pins

    Packages

    • 24-pin QFN

    Operating Voltage

    • 2.4V – 3.63V
Parametrics
Name
Value
Part Family
SAMD09
Max CPU Speed MHz
48
Program Memory Size (KB)
16
SRAM (KB)
4
Auxiliary Flash (KB)
0.064
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
2.4 to 3.6
Direct Memory Access Channels
6
SPI
2
I2C
2
Peripheral Pin Select / Pin Muxing
Yes
ADC Input
5
Max ADC Resolution (Bits)
12
Max ADC Sampling Rate (ksps)
350
Input Capture
3
Motor Control PWM Channels
6
Max 16-bit Digital Timers
2
Parallel Port
GPIO
Internal Oscillator
32khz, 32Khz ULP, 8Mhz
Hardware RTCC/RTC
Yes
Max I/O Pins
22
Pincount
14
