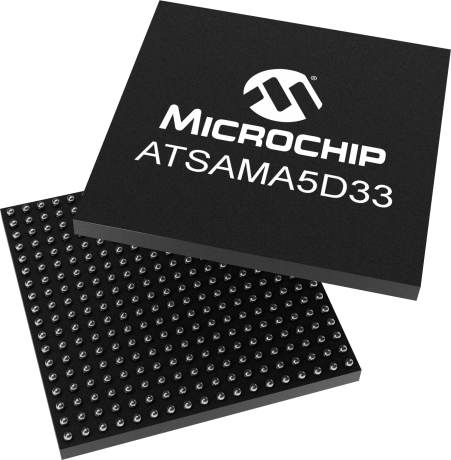

ATSAMA5D33

Status: In Production

Features:

  • Low System Cost and High Value Integration:
  • Gigabit EMAC and 10/100 EMAC
  • 0.8mm ball pitch package reduces PCB design complexity
  • Simple power management scheme
  • Ultra-Low Power Consumption:
  • Ultra-low-power architecture for extensive battery life
  • <200uA retention mode with fast wake-up
  • Application Security:
  • Hardware encryption engine
  • Extensive Ecosystem:
  • Free Linux® and Qt SDK
  • Complete set of C examples for non-OS users
  • Low-Cost Development board
  • Multiple third-party software and hardware partners
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAMA5D3 series is a high-performance, ultra-low-power ARM Cortex-A5 processor-based MPU.  The Cortex-A5 runs up to 536MHz and features a 128KB L2 cache and a floating-point unit.  It supports multiple memories, including DDR2 and LPDDR2.  It integrates powerful peripherals for connectivity:  Gigabit EMAC and/or 10/100 EMAC, 3 HS USB ports, up to 2 CAN ports, up to 3 SDIO/SD/MMC, up to 7 UARTs; and for user interface applications:  TFT LCD controller, touch controller, and a CMOS sensor (camera) interface.  These devices offer application security functions to protect against hacking such as a hardware encryption engine supporting AES, 3DES, as well as secure Hash Algorithm (SHA) and True Random Number Generator (TRNG) and a secure boot loader.  These devices come with a free main-lined Linux distribution.

Additional Features
    • Low System Cost and High Value Integration:

    - Gigabit EMAC and 10/100 EMAC

    - 0.8mm ball pitch package reduces PCB design complexity

    - Simple power management scheme

    - 4-layer PCB

    • Ultra-Low Power Consumption:

    - Ultra-low-power architecture for extensive battery life

    - <200uA retention mode with fast wake-up

    - 5uA in backup mode

    • Application Security:

    - Hardware encryption engine

    - Secure boot

    • Extensive Ecosystem:

    - Free Linux® and Qt SDK

    - Complete set of C examples for non-OS users

    - Low-Cost Development board

    - Multiple third-party software and hardware partners

Parametrics
Name
Value
Part Family
SAMA5D3
Core
Cortex-A5
FPU
Yes
Max CPU Speed (MHz)
536
Core Voltage Range (V)
1.08 to 1.32
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32kHz, 12MHz
SRAM (KB)
128
L1 Cache Memory (Instructions) (KB)
32
L1 Cache Memory (Data) (KB)
32
DRAM Interface
LPDDR/DDR2/LPDDR2
DRAM Bus Size (Bits)
32
NAND Interface
Yes
ECC Bits on NAND Interface
24
Number of EBIs
1
SDIO/SD-CARD/eMMC
2
Direct Memory Access Channels
39
Max I/O Pins
160
Pincount
324
UART
4
ISO 7816
4
SPI
6
I2C
3
SSC
2
CAN
2
Type of CAN Module
CAN
USB Device and Host Ports
1 HS
USB Host Only Ports
2 HS
10/100/1000 Ethernet MAC
1
Ethernet PTP & AVB Support
Ethernet PTP
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Camera Interface
Yes
Secure Bootloader
Yes
Crypto Engine
Yes
ADC Input
12
Max ADC Resolution (bits)
12
Max ADC Sampling Rate (ksps)
1000
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
4
Max 32-Bit Digital Timers
5
Input Capture
5
Standalone Output Compare/Standard PWM
5
Temperature Range (C)
-40 to 85

Documents

Jump to:

Data Sheets


8052KB

Application Notes

Download All

Development Environment

  • Integrated Development Environments
  • Configurators
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

The SAM-ICE catalog part number (CPN) is now End of Life (EOL) and can no longer be offered.

For MPU and SAM developers, SAM-ICE has been replaced by the J-32 Debug Probe (DV164232)

Alternatively, SAM developers can use either Atmel ICE (

...

Learn More
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Configurators
Linux4SAM.org
Linux4SAM (Linux software and tools) ( Linux4SAM.org )

Microchip has created and supports a free-of-charge Linux OS offering for our entire portfolio of microprocessors (MPUs). We are committed to the open-source Linux community and provide full coverage of System-on-Chip (SoC) peripherals in the Linux kernel. We also offer AT91Bootstrap and U-Boot bootloaders.

The Linux4SAM website contains links to

...

Learn More
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

SAM-BA software provides an open set of tools for in-system programming of internal and external memories connected to our 32-MCUs and MPUs. You can program your device through the JTAG, debug UART or USB interfaces. If you use the MPU’s secure boot feature, you should use the Secure SAM-BA edition.

The latest generations of MPUs are supported on SAM-BA v3 available on the

...

Learn More
Software Package
Software Package ( Software Package )

These software packages deliver a set of C drivers that run on the evaluation kits and exercise all peripherals. They are also very useful for board bring up as well as quick prototyping. They consist of drivers, software services and libraries.

Each software module for a Microchip MPU includes full source code, application examples, rich HTML documentation and ready-to-use projects for

...

Learn More
Demo & Evaluation Boards
High-Performance WVGA Display Module with Max-Touch(r)
High-Performance WVGA Display Module with Max-Touch(r) ( AC320005-5 )

The High-Performance WVGA LCD Display Module with maXTouch® Technology (AC320005-5) is designed for evaluating the Microchip's graphics display solution and graphics library for 32-bit microcontrollers and microprocessors. This board is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation

...

Learn More
Add To Cart
SAMA5D3-XPLD
SAMA5D3-XPLD ( ATSAMA5D3-XPLD )

The SAMA5D3 Xplained is a fast prototyping and evaluation platform for microprocessor-based design. The board comes with a rich set of ready to use connectivity and storage peripherals and expansion headers for easy customization. A Linux distribution and software package gets you evaluating fast. A USB device connector can be used to power the board as well as programming and debugging it.

Learn More
Add To Cart
KSZ9477 Managed Switch Evaluation Board with SAMA5D36 MPU
KSZ9477 Managed Switch Evaluation Board with SAMA5D36 MPU ( EVB-KSZ9477-1 )

This is the evaluation board for the KSZ9477S 7-Port Gigabit Ethernet Switch (also KSZ9567 and KSZ8567). The SAMA5D3 processor manages the switch and includes the ATECC508A security encoder. The DSC1101 is the reference clock for GigE communication. The EVB can be used to implement IEEE 1588v2, AVB and DLR/HSR (available on KSZ9477 only) network redundancy. Combine multiple boards to implement

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATSAMA5D33A-CU
0.508300
1.515873
324
LFBGA
15x15x1.4mm
SAC105
e8
ATSAMA5D33A-CUR
0.508300
1.450000
324
LFBGA
15x15x1.4mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
