Status: In Production

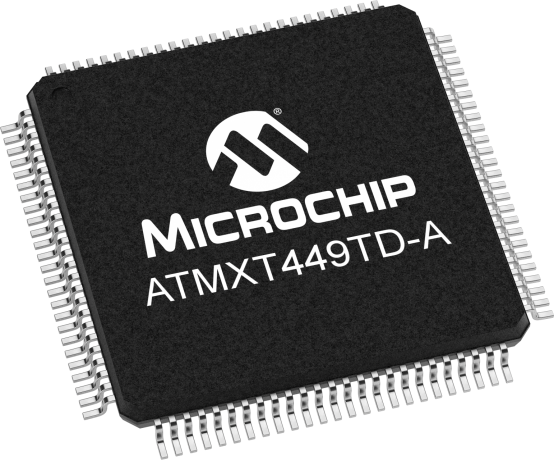

The ATMXT449TD-A Automotive touchscreen controller is aimed at display sizes up to 8” used in center stacks, navigation systems or rear seat entertainment systems. This family of automotive touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Automotive market. It enables dynamic touch classification, a feature that automatically and intelligently switches between self- and mutual-capacitance sensing to provide users a seamless transition between a finger touch and glove touch. Adaptive Sensing is also resistant to water and moisture and ensures superior touch performance even in these harsh conditions.
In addition, the ATMXT449TD-A supports Hover operation, which tracks the position of the finger when it floats within 20mm of the touchscreen. Hover allows user interaction without making a physical contact, and brings a more dynamic interface to user applications.
Please contact your local Microchip sales office for pricing information and to place an order.
Fully automotive-qualified (Grade 2), operating within the temperature range of -40 to +105 deg C
Supports up to 16 concurrent touches in real time with touch size reporting
Communication via a serial interface (I2C or SPI)
Integrated voltage doubler option to increase the signal to noise ratio (SNR)
Adaptive Sensing (Self and Mutual cap)
Supports thick glove (5mm) touch
Support thick lenses (up to 3mm plastic)
Superior moisture performance
Hover tracking up to 20mm
This maXTouch USB Bridge product provides an interface to connect the I2C or SPI compatible based maXTouch devices to PC-based applications through a USB port.
The D21 bridge board significantly improves data throughput, increasing test and production efficiency. This board is twice as fast as other maXTouch bridge boards (ATUSB-PCB-80146 and ATUSB-I2C-AUTO-PCB).
For pricing and availability, contact Microchip Local Sales.
