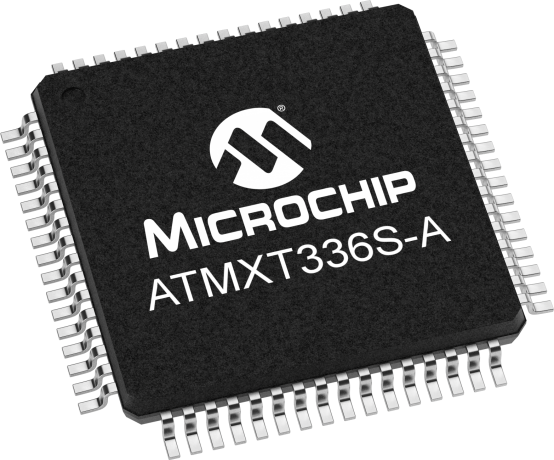

product primary image

ATMXT336S-A

Status: In Production

Features:

  • Fully automotive-qualified (Grade 3), operating temperature range of -40 to +85 deg C
  • Supports up to 10 concurrent touches in real time with touch size reporting
  • Communication via I2C serial interface
  • Integrated voltage doubler option to increase the signal to noise ratio (SNR)
  • Supports glove (2mm) touch
  • Support thick lenses (up to 2mm plastic)
  • Package: TQFP64
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The Microchip's maXTouch® family, known for its superior performance and rich feature set, is now qualified for automotive applications. The mXT336S-A is optimized for 7-inch touchscreens and enables single-layer shieldless designs. In addition to its superior performance, multi-touch functionality, faster response time, robust operation and lower power consumption, the new mXT336S-A also provides embedded functionalities such as gesture calculation and filter algorithms that meet current automotive design requirements. Dedicated firmware and a high signal-to-noise ratio makes the device ideally suited for very noisy environments and provide full support for gloved-hand operation on automotive touchscreens.

Automotive Applications

  • Center stacks
  • Navigation systems
  • Radio interfaces
  • Rear seat entertainment systems
  • Touchpads

Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features

Fully automotive-qualified (Grade 3), operating temperature range of -40 to +85 deg C

Supports up to 10 concurrent touches in real time with touch size reporting

Communication via I2C serial interface

Integrated voltage doubler option to increase the signal to noise ratio (SNR)

Supports glove (2mm) touch

Support thick lenses (up to 2mm plastic)

Package: TQFP64

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
7
Touch Response
>200 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 85
Number of Touches
10
Max Nodes Supported
336

Documents

Jump to:

Data Sheet

04/16/2019
526KB

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT336S-AT
0.286700
2.487500
64
TQFP
10x10x1mm
Matte Tin
e3
ATMXT336S-ATR
0.286700
0.574667
64
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
