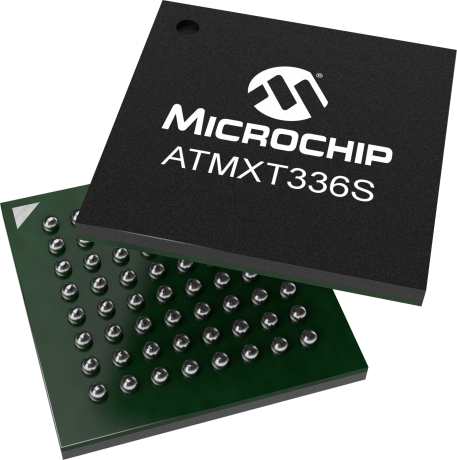

product primary image

ATMXT336S

maXTouch Touchscreen Controller

Status: In Production

Features:

  • Communication via I2C serial interface
  • Integrated voltage doubler option to increase the signal to noise ratio (SNR)
  • Packages: UQFN56 and UFBGA64
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The recommended alternative touch controller is ATMXT336U.

The mXT336S uses Microchip's patented capacitive touch technology for the highest-performance smart phones.
With 336 nodes, the mXT336S touchscreen controller supports 2.0mm passive stylus, moisture robustness and superior noise immunity.

Additional Features
  • Supports up to 10 concurrent touches in real time with touch size reporting
  • Communication via I2C serial interface
  • Integrated voltage doubler option to increase the signal to noise ratio (SNR)
  • Support thick lenses (up to 1.2mm plastic)
  • Packages: UQFN56 and UFBGA64
Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
5
Operating Voltage range (Vcc)
3.3 to 3.47
Touch Response
>200 Hz
Temperature Range (degC)
-40 to 85
Number of Touches
10
Max Nodes Supported
336

Documents

Jump to:

Data Sheets

05/23/2019
1639KB
05/23/2019
1568KB
05/23/2019
1590KB
05/23/2019
699KB

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT336S-AT
0.286700
2.487500
64
TQFP
10x10x1mm
Matte Tin
e3
ATMXT336S-ATR
0.286700
0.574667
64
TQFP
10x10x1mm
Matte Tin
e3
ATMXT336S-CCUR048
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR027
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR032
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR034
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR035
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR037
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR040
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR041
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR049
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR056
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR058
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR062
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR063
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR020
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR036
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR038
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR053
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR046
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR051
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-CCUR054
0.026500
0.242000
64
UFBGA
5x5x0.6mm
LF35
e8
ATMXT336S-MAUR048
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR058
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR020
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR032
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR034
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR035
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR037
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR040
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR041
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR049
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR056
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR062
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR063
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR036
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR038
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR046
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR051
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
ATMXT336S-MAUR053
0.071900
0.071750
56
UQFN
6x6x0.6mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
