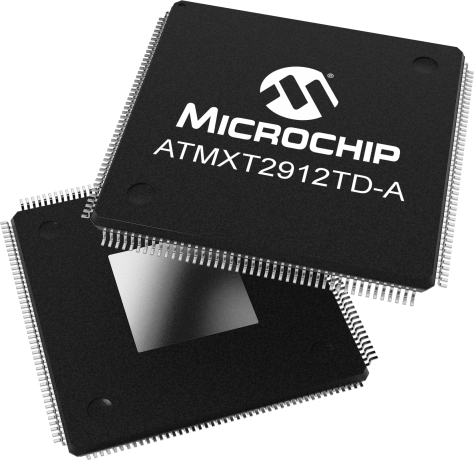

ATMXT2912TD-A

Status: In Production

Features:

  • Communication via a serial interface (I2C or SPI) up to 8MHz
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 3mm plastic)
  • Support 1D multi touch slider
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The ATMXT2912TD-A Automotive touchscreen controller is aimed at display sizes up to 20” and larger; used in center stacks, navigation systems or rear seat entertainment systems. This brand new family of automotive touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Automotive market. Microchip’s latest solution offers superior signal-to-noise capability to address the requirements of thick lens and thick glove support; supporting multiple thick gloved touches and operation when fingers or surfaces are wet or moist, whilst preventing the water from being detected as a false touch event. This technology also enables adaptive touch utilizing self-capacitance and mutual-capacitance measurements so all touches are recognized and false touch detections are avoided.
Microchip’s new signal shaping technology is lowering emissions significantly and ensures that large touchscreen solutions based on the ATMXT2912TD-A meet the CISPR-25 Level 5 requirements for electromagnetic interference in Automobiles.
The controllers also incorporate a new self and sensor diagnostic function, which constantly monitors the integrity of the touch system. The new ATMXT2912TD-A device brings these smart diagnostic features in support of the Automotive Safety Integrity Level as specified in ISO26262.
Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features
  • Fully automotive-qualified (Grade 2), operating temperature range of -40 to +105 deg C
  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Communication via a serial interface (I2C or SPI) up to 8MHz
  • External high voltage option to increase the signal to noise ratio (SNR)
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 3mm plastic)
  • Superior moisture performance
  • Support 1D multi touch slider
  • Up to 32 touch keys
  • Package: LQFP176
Parametrics
Name
Value
Interface Type
I2C and SPI
Max Screen Size (Inch)
20
Touch Response
>250 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 105
Number of Touches
16
Max Nodes Supported
2911

Documents

Jump to:

Brochures

Product Brief

Software

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
mXT2912TDAT EVK A
mXT2912TDAT EVK A ( ATEVK-MXT2912TDAT-A )

This kit (ATEVK-MXT2912TDAT-A) is the I2C version for the evaluation and development of Microchip maXTouch applications using the ATMXT2912TD Touchscreen Sensor IC.

Learn More
Add To Cart
mXT2912TDAT EVK C
mXT2912TDAT EVK C ( ATEVK-MXT2912TDAT-C )

This kit (ATEVK-MXT2912TDAT-C) is the I2C version including 1D slider PCB for the evaluation and development of Microchip maXTouch applications using the ATMXT2912TD Touchscreen Sensor IC.

Learn More
Add To Cart
mXT2912TDAT EVK D
mXT2912TDAT EVK D ( ATEVK-MXT2912TDAT-D )

This kit (ATEVK-MXT2912TDAT-D) is the SPI version including 1D slider PCB for the evaluation and development of Microchip maXTouch applications using the ATMXT2912TD Touchscreen Sensor IC.

Learn More
Add To Cart
mXT2912TDAT EVK B
mXT2912TDAT EVK B ( ATEVK-MXT2912TDAT-B )

This kit (ATEVK-MXT2912TDAT-B) is SPI version for the evaluation and development of Microchip maXTouch applications using the ATMXT2912TD Touchscreen Sensor IC.

Learn More
Add To Cart
mXT2912TDAT PCB
mXT2912TDAT PCB ( ATMXT2912TDAT-I2C-PCB )

This PCB (ATMXT2912TDAT-I2C-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT2912TD Touchscreen Sensor IC.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT2912TD-ATVAO
1.961000
5.000000
176
LQFP
24x24x1.4mm
Matte Tin
e3
ATMXT2912TD-ABRVAO
1.961000
0.000000
176
LQFP
24x24x1.4mm
Matte Tin
e3
ATMXT2912TD-ATRVAO
1.961000
0.000000
176
LQFP
24x24x1.4mm
Matte Tin
e3
ATMXT2912TD-ABVAO
1.961000
5.000000
176
LQFP
24x24x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
