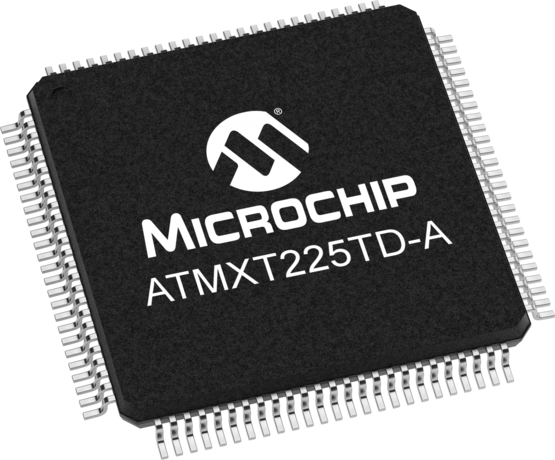

ATMXT225TD-A

Status: In Production

Features:

  • Fully automotive-qualified (Grade 2), operating within the temperature range of -40 to +105 deg C
  • Supports up to 10 concurrent touches in real time with touch size reporting
  • Communication via a serial interface (I2C or SPI)
  • Integrated voltage doubler option to increase the signal to noise ratio (SNR)
  • Adaptive Sensing (Self and Mutual cap)
  • Supports thick glove (5mm) touch
  • Support thick lenses (up to 3mm plastic)
  • Superior moisture performance
  • Hover tracking up to 20mm
  • Package: TQFP100
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

In Production
The ATMXT225TD-A Automotive touchscreen controller is aimed typically at touchpads and display sizes up to 5”. This family of automotive touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Automotive market. It enables dynamic touch classification, a feature that automatically and intelligently switches between self- and mutual-capacitance sensing to provide users a seamless transition between a finger touch and glove touch. Adaptive Sensing is also resistant to water and moisture and ensures superior touch performance even in these harsh conditions.

In addition, the ATMXT225TD-A supports Hover operation, which tracks the position of the finger when it floats within 20mm of the touchscreen. Hover allows user interaction without making a physical contact, and brings a more dynamic interface to user applications.

Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features

Fully automotive-qualified (Grade 2), operating within the temperature range of -40 to +105 deg C

Supports up to 10 concurrent touches in real time with touch size reporting

Communication via a serial interface (I2C or SPI)

Integrated voltage doubler option to increase the signal to noise ratio (SNR)

Adaptive Sensing (Self and Mutual cap)

Supports thick glove (5mm) touch

Support thick lenses (up to 3mm plastic)

Superior moisture performance

Hover tracking up to 20mm

Package: TQFP100

Parametrics
Name
Value
Interface Type
I2C and SPI
Max Screen Size (Inch)
5
Touch Response
>250 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 105
Number of Touches
10
Max Nodes Supported
224

Documents

Jump to:

Brochures

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Evaluation Kit with I2C PCB
Evaluation Kit with I2C PCB ( ATEVK-MXT225TDAT-A )

This kit (ATEVK-MXT225TDAT-A) is for the evaluation and development of Microchip maXTouch applications using the ATMXT225TDAT Touchscreen Sensor IC.

Learn More
Add To Cart
Evaluation Kit with HSBB & SPI Cable
Evaluation Kit with HSBB & SPI Cable ( ATEVK-MXT225TDAT-B )

This kit (ATEVK-MXT225TDAT-B) is for the evaluation and development of Microchip maXTouch applications using the ATMXT225TDAT Touchscreen Sensor IC.

Learn More
Add To Cart
Development PCB
Development PCB ( ATMXT225TDAT-I2C-PCB )

This PCB (ATMXT225TDAT-I2C-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT225TD Touchscreen Sensor IC.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT225TD-AB
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMXT225TD-ABR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMXT225TD-AT
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMXT225TD-ATR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
