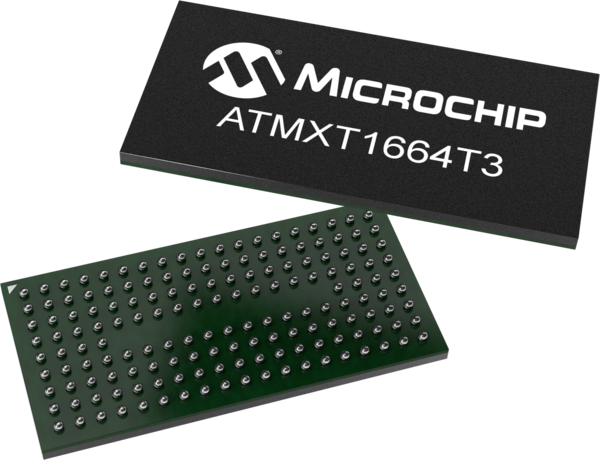

ATMXT1664T3

Status: In Production

Features:

  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Communication via I2C and HID-I2C for Windows interfaces
  • Supports thick glove (5mm) touch
  • Adaptive Sensing (Self and Mutual cap)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The ATMXT1664T3 touchscreen controller is aimed at display sizes up to 15.6” used in Industrial designs. This family of touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Industrial market. It enables dynamic touch classification, a feature that automatically and intelligently switches between self-capacitance and mutual-capacitance sensing to provide users a seamless transition between a finger touch and glove touch. Adaptive Sensing is also highly resistant to moisture.  Proprietary differential touch sensing delivers unparalleled noise immunity ensuring superior touch performance even in harsh environments.

Additional Features
  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Communication via I2C and HID-I2C for Windows interfaces
  • Supports thick glove (5mm) touch
  • Support thick lenses (up to 4.5mm glass)
  • Adaptive Sensing (Self and Mutual cap)
  • Superior moisture performance
  • High voltage option via internal voltage pump to increase the signal to noise ratio (SNR)
  • Operating temperature range of -40 to +85 deg C
  • Packages: 136-ball UFBGA / 162-ball UFBGA
Parametrics
Name
Value
Interface Type
I2C and USB
Max Screen Size (Inch)
15.6
Touch Response
>200 Hz
Temperature Range (degC)
-40 to 85
Number of Touches
16
Max Nodes Supported
1664

Documents

Jump to:

Brochures

Software Libraries/Firmware

08/17/2018
282KB
