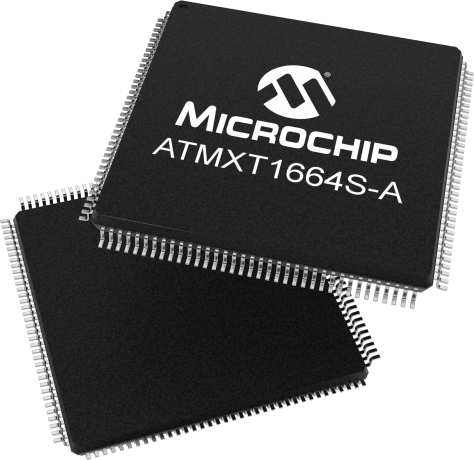

product primary image

ATMXT1664S-A

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The recommended alternative touch controller is ATMXT1665TD-A.

With 1664 nodes, the single-chip, high noise immunity Microchip's maXTouch® mXT1664S-A provides optimized performance for touchscreens up to 14".

As with the other devices in the S Series, the mXT1664S-A includes:

    Our thinner sensors, which enable the thinnest touchscreen stacks with the noisiest displays

    Superior noise suppression technology

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
14
Touch Response
>250 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 85
Number of Touches
16
Max Nodes Supported
1664

Documents

Jump to:

Data Sheets

05/23/2019
637KB

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT1664S-AUR
1.392800
2.285714
144
LQFP
20x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
