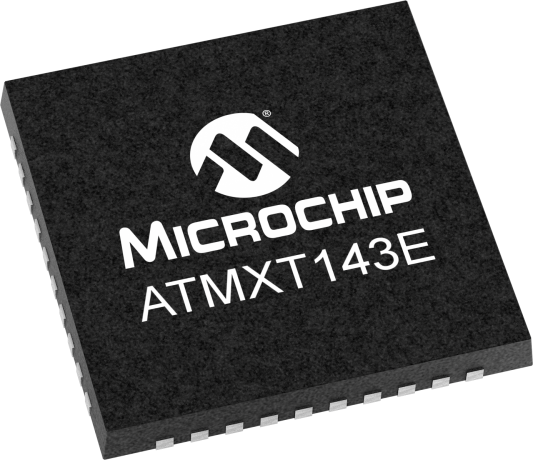

product primary image

ATMXT143E

Status: Not Recommended for new designs

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip's maXTouch® family, known for its superior performance and rich feature set, is now qualified for automotive applications, such as automotive touchscreens and touchpads (supporting 2 inches up to 12 inches in diameter) used in center stack displays, navigation systems, radio human-machine interfaces (HMIs) and rear-seat entertainment systems.
??
maXTouch devices provide unlimited touch identification, fast response time, exacting precision, robust operation and low power consumption to touch-based designs.

The automotive-qualified maXTouch family member mXT143E provides dedicated functionalities that meet specific automotive requirements such as high-temperature behavior and reliable operation in harsh environments.

Embedded filters realized in hardware and firmware enable touchscreens supporting gloved finger operation???a key requirement in modern automotive HMI interfaces. Embedded single- and dual-gesture algorithms and the palm suppression functionality allow detection and suppression of unintended touches, such as a resting hand on the screen.

The mXT143E addresses small-sized touchscreens and pads. Qualified for automotive from -40°C to +85°C, it supports configurable X- and Y-lines, as well as gloved operation.

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
5
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 85
Max Nodes Supported
143

Documents

Jump to:

Brochures

12/11/2016
1504KB
12/11/2016
3116KB
12/11/2016
5255KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT143E-MA5HR036
0.047000
0.000000
40
UQFN
5x5x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
