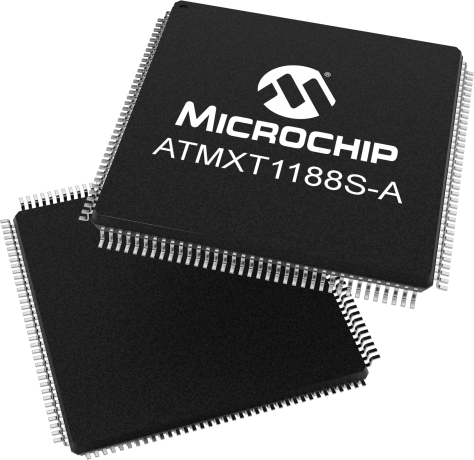

product primary image

ATMXT1188S-A

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The recommended alternative touch controller is ATMXT1189TD-A.

With 1188 nodes, the single-chip, high noise immunity Microchip's maXTouch® mXT1188S-A provides optimized performance for touchscreens up to 10.1".

As with the other devices in the S Series, the mXT1188S-A includes:

    Our thinner sensors, which enable the thinnest touchscreen stacks with the noisiest displays

    Superior noise suppression technology

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
10.1
Touch Response
>250 Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 85
Number of Touches
16
Max Nodes Supported
1188

Documents

Jump to:

Data Sheets

05/23/2019
670KB

Brochures


Development tools data is currently unavailable.


Rohs data is currently unavailable.
