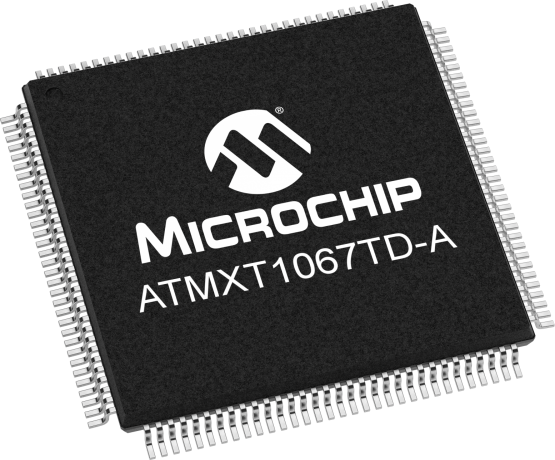

ATMXT1067TD-A

Status: In Production

Features:

  • Communication via a I2C serial interface up to 1MHz or SPI interface up to 8MHz
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 3mm plastic)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary


The ATMXT1067TD-A Automotive touchscreen controller is aimed at display sizes up to 10.5”; used in center stacks, navigation systems or rear seat entertainment systems. This brand new family of automotive touchscreen controller brings Microchip’s unmatched Adaptive Sensing technology to the Automotive market. Microchip’s latest solution offers superior signal-to-noise capability to address the requirements of thick lens and thick glove support; supporting multiple thick gloved touches and operation when fingers or surfaces are wet or moist, whilst preventing the water from being detected as a false touch event. This technology also enables adaptive touch utilizing self-capacitance and mutual-capacitance measurements so all touches are recognized and false touch detections are avoided.
Microchip’s new signal shaping technology is lowering emissions significantly and ensures that large touchscreen solutions based on the ATMXT1067TD-A meet the CISPR-25 Level 5 requirements for electromagnetic interference in Automobiles.
The controllers also incorporate a new self and sensor diagnostic function, which constantly monitors the integrity of the touch system. The new ATMXT1067TD-A device brings these smart diagnostic features in support of the Automotive Safety Integrity Level as specified in ISO26262.
Please contact your local Microchip sales office for pricing information and to place an order.

Additional Features
  • Supports up to 16 concurrent touches in real time with touch size reporting
  • Fully automotive-qualified (Grade 2), operating temperature range of -40 to +105 degC
  • Communication via a I2C serial interface up to 1MHz or SPI interface up to 8MHz
  • Internal voltage doubler option to increase the signal to noise ratio (SNR)
  • Support multiple thick glove (5mm) touches
  • Support thick lens (up to 3mm plastic)
  • Superior moisture performance
  • Up to 16 touch keys
  • Package: TQFP128
Parametrics
Name
Value
Interface Type
I2C and SPI
Max Screen Size (Inch)
10.5
Touch Response
>150Hz
Automotive Qualified
Yes
Temperature Range (degC)
-40 to 105
Number of Touches
16
Max Nodes Supported
1066

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATEVK-MXT1665TDAT-C
ATEVK-MXT1665TDAT-C ( ATEVK-MXT1665TDAT-C )

This kit (ATEVK-MXT1665TDAT-C) is the SPI version for the evaluation and development of Microchip maXTouch applications using the ATMXT1665TDAT Touchscreen Sensor IC.

Learn More
ATMXT1067TD Development PCB
ATMXT1067TD Development PCB ( ATMXT1067TDAT-I2C-PCB )

This PCB (ATMXT1067TDAT-I2C-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT1067TD Touchscreen Sensor IC.

Learn More
Add To Cart
ATMXT1067TD SPI Development PCB
ATMXT1067TD SPI Development PCB ( ATMXT1067TDAT-SPI-PCB )

This PCB (ATMXT1067TDAT-SPI-PCB) is for the evaluation and development of Microchip maXTouch applications using the ATMXT1067TD Touchscreen Sensor IC.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT1067TD-ABRI2CVAO
0.557500
1.030000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ATI2CVAO
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ATRI2CVAO
0.557500
1.030000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ABI2CVAO
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ATSPIVAO
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ABSPIVAO
0.557500
1.800000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ABRSPIVAO
0.557500
1.030000
128
TQFP
14x14x1mm
Matte Tin
e3
ATMXT1067TD-ATRSPIVAO
0.557500
1.030000
128
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
