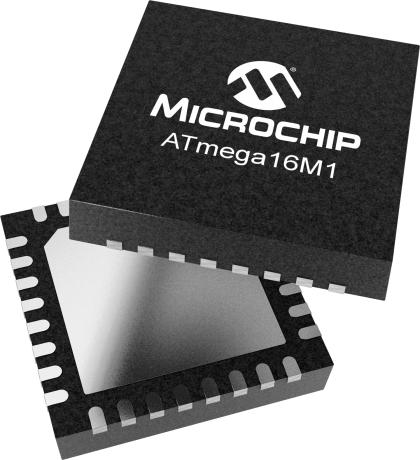

ATmega16M1

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

8-bit AVR Microcontroller with 16KB self-programming Flash Program Memory, 1KB SRAM, 512B EEPROM, CAN Controller with 6 message-objects, LIN Controller, Power Stage Controller, 8 Channel 10-bit A/D-converter. JTAG interface for on-chip-debug. Up to 16 MIPS throughput at 16 MHz. 2.7 - 5.5 Volt operation.

Note: all of our kits use industrial product versions.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
16
CPU Speed (MIPS/DMIPS)
16
SRAM (KB)
1,024
Data EEPROM/HEF (bytes)
512
Digital Communication Peripherals
1-UART, 1-SPI,
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 14PWM
Timers
1 x 8-bit, 1 x 16-bit
Number of Comparators
4
Number of CAN Modules
1 CAN
Temperature Range (°C)
-40 to 150
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
32
