ATF750LVC

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

A high-performance CMOS (electrically-erasable) complex programmable logic device (CPLD) that uses Atmel's proven electrically-erasable technology. The Microchip's "750" architecture is twice as powerful as most other 24-pin programmable logic devices. Increased product terms, sum terms, flip-flops and output logic configurations translate into more usable gates. High-speed logic and uniform, predictable delays guarantee fast in-system performance.

Parametrics
Name
Value
Power Options
STANDARD
Operating Voltage range (V)
3 to 5.5
Inputs and I/O Pins
22
Registers
20
Macrocells
10
tPD Min
15
Max Clock Freq
90
Temp# Range (deg C)
-40 to 85

Documents

Jump to:

Data Sheet

Getting Started


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

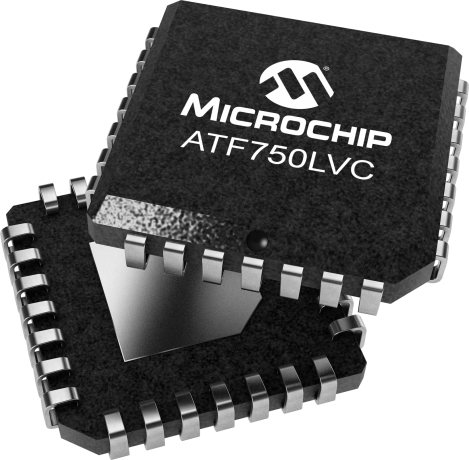

ATF750LVC-15JU
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3

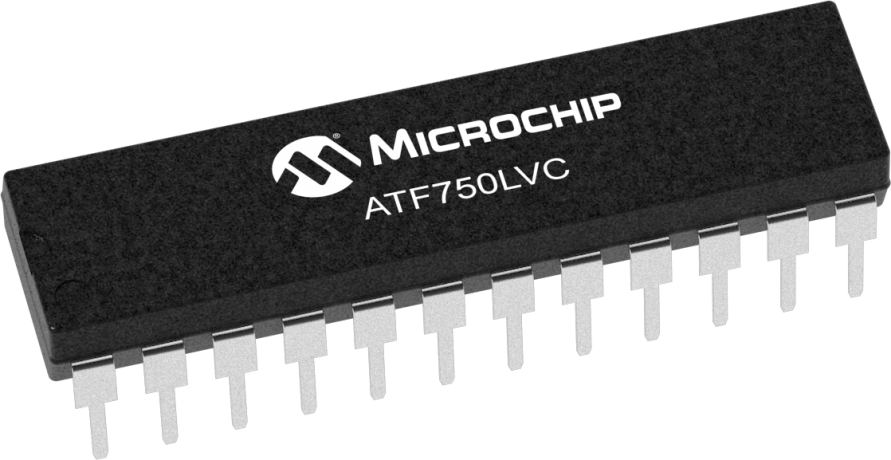

ATF750LVC-15PU
1.769700
1.800000
24
PDIP
.300In
Matte Tin
e3

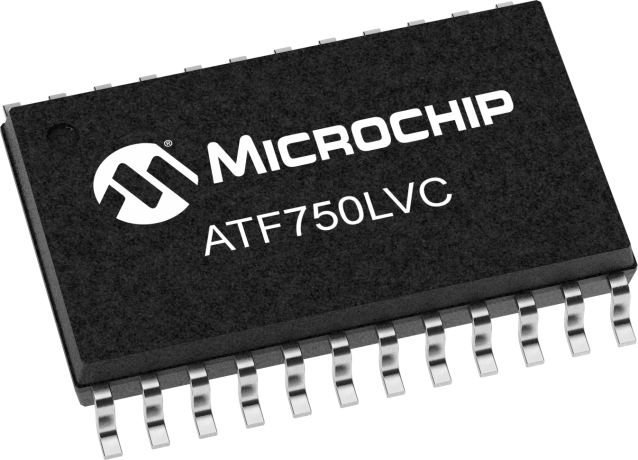

ATF750LVC-15XU
0.091800
0.096774
24
TSSOP
4.4mm
Matte Tin
e3
ATF750LVC-15SU
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
