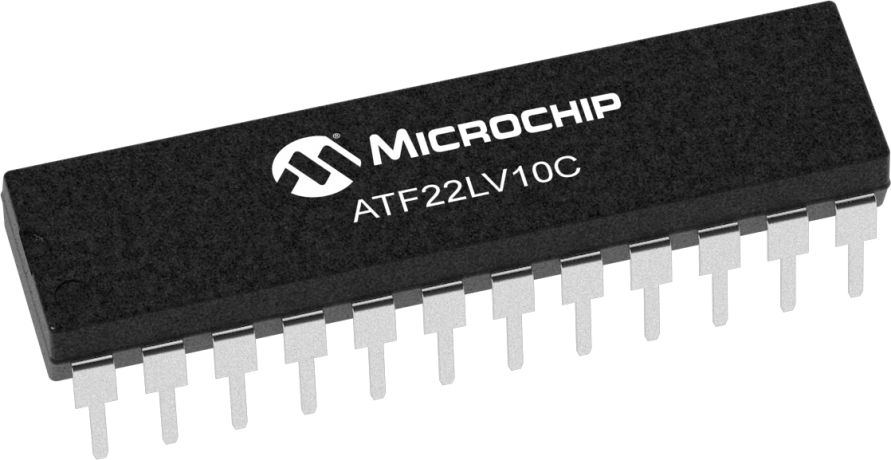

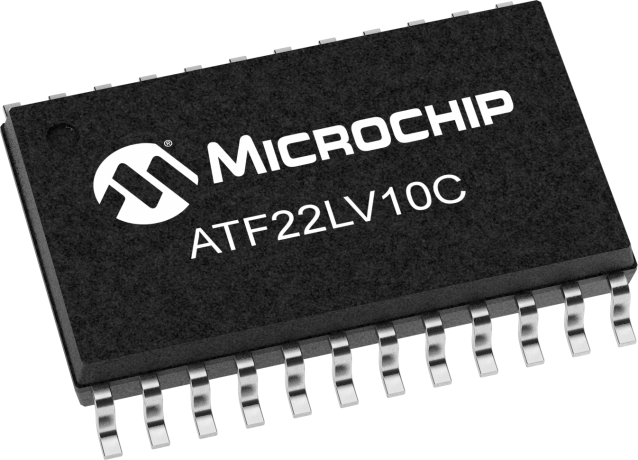

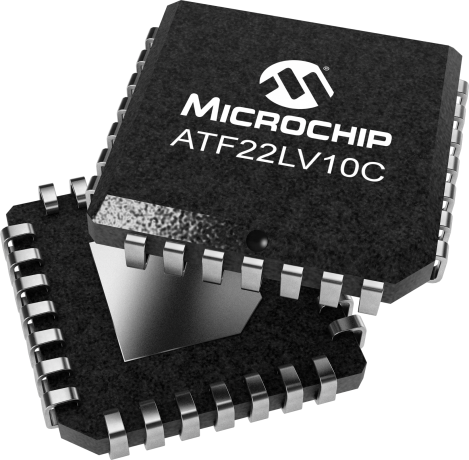

ATF22LV10C

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The high-performance CMOS programmable logic device (PLD) with proven Microchip electrically erasable flash memory supports speeds down to 25ns. All speed ranges are specified over the 3.0V to 5.5V range for industrial and commercial temperature ranges. The device provides a low-voltage and edge-sensing "zero" power CMOS PLD solution with "zero" standby power (5??A typical). When the device is idle it powers down automatically to the zero power mode through the Microchip patented Input Transition Detection (ITD) circuitry.

Parametrics
Name
Value
Power Options
STANDARD
Operating Voltage range (V)
3 to 5.5
Inputs and I/O Pins
22
Registers
10
Macrocells
10
tPD Min
10
Max Clock Freq
83
Temp# Range (deg C)
-40 to 85

Documents

Jump to:

Data Sheet

Application Notes

Download All

Quality-Reliability-ISOs

Getting Started


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATF22LV10CQZ-30JU
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
ATF22LV10C-10JU
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
ATF22LV10C-10SU
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
ATF22LV10CQZ-30SU
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
ATF22LV10C-10PU
1.769700
1.800000
24
PDIP
.300In
Matte Tin
e3
ATF22LV10CQZ-30PU
1.769700
1.800000
24
PDIP
.300In
Matte Tin
e3
ATF22LV10C-10XU
0.091800
0.096774
24
TSSOP
4.4mm
Matte Tin
e3
ATF22LV10CQZ-30XU
0.091800
0.096774
24
TSSOP
4.4mm
Matte Tin
e3
ATF22LV10CQZ-30XU-T
0.091800
0.091750
24
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
