ATF1508ASL

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low Power, Vcc-5V, 128 MC, ISP, Fully Green CPLD

Parametrics
Name
Value
Power Options
LOW
Operating Voltage range (V)
4.5 to 5.5
Inputs and I/O Pins
84
Registers
128
Macrocells
128
tPD Min
25
Max Clock Freq
33
Temp# Range (deg C)
-40 to 85

Documents

Jump to:

Data Sheet

07/01/2005
690KB

BSDL Files

12/16/2011
35KB

Brochures

Getting Started

Code Examples

01/01/2001
1621KB

White Papers

01/01/2001
285KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
CPLD Dev kit with USB cable
CPLD Dev kit with USB cable ( ATF15XX-DK3-U )

The development/programmer kit supports the ATF15xxAS/ASL/ASV/ASVL family of 3.3V, and 5.0V industry-standard, pin-compatible CPLDs with Logic Doubling. This kit includes a USB Based ISP cable (ATDH1150USB), a 44-TQFP adapter module, and ATF15xxAS/ASV samples in a 44-TQFP package. Adapter modules that support the 44-PLCC, 84-PLCC, and 100-TQFP packages are available separately.

Learn More
Add To Cart
USB ISP CABLE for ATF15xx CPLD
USB ISP CABLE for ATF15xx CPLD ( ATDH1150USB )

The ATF15xx CPLD USB-based JTAG ISP Download Cable connects to a standard USB 2.0 port on a PCand to a 10-pin or 14-pin JTAG header on the programming circuit board. It transfers the JTAG instructions and data generated by the ATMISP software running on a PC to the ATF15xx series CPLDs on the target circuit board. With this In-System Programming (ISP) download cable, design changes can easily be...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

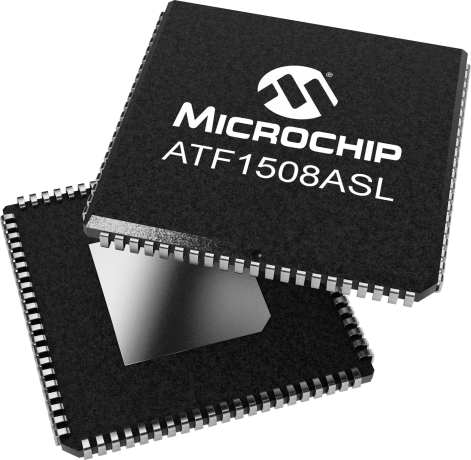

ATF1508ASL-25JU84
7.087500
10.500000
84
PLCC
29.3x29.3x4.4mm
Matte Tin
e3

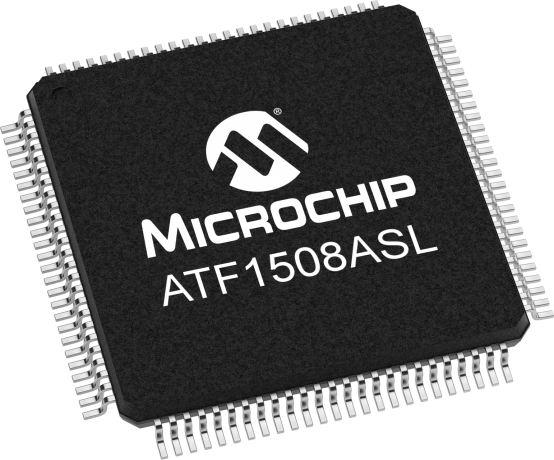

ATF1508ASL-25AU100
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
