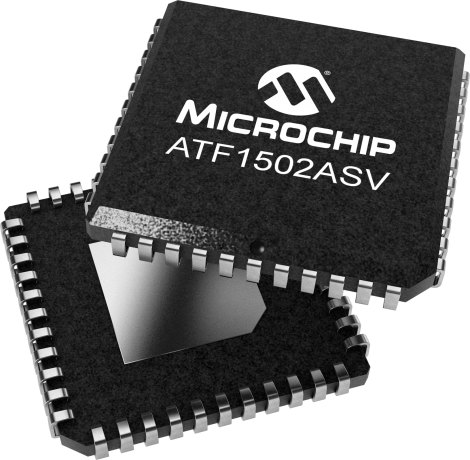

ATF1502ASV

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

A high-performance, high-density complex programmable logic device (CPLD) with Atmel's proven electrically-erasable technology. With 32 logic macrocells and up to 36 inputs, the device easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. Enhanced routing switch matrices increase usable gate count and the odds of successful pin-locked design modifications. The device has up to 32 bi-directional I/O pins and four dedicated input pins, depending on the type of device package selected. Each dedicated pin can also serve as a global control signal, register clock, register reset or output enable. Each of these control signals can be selected individually within each macrocell.

Parametrics
Name
Value
Power Options
STANDARD
Operating Voltage range (V)
3 to 3.6
Inputs and I/O Pins
36
Registers
32
Macrocells
32
tPD Min
15
Max Clock Freq
100
Temp# Range (deg C)
-40 to 85

Documents

Jump to:

Data Sheet

01/01/2006
361KB

Brochures

Getting Started

Code Examples

01/01/2001
1621KB

White Papers

01/01/2001
285KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
CPLD Dev kit with USB cable
CPLD Dev kit with USB cable ( ATF15XX-DK3-U )

The development/programmer kit supports the ATF15xxAS/ASL/ASV/ASVL family of 3.3V, and 5.0V industry-standard, pin-compatible CPLDs with Logic Doubling. This kit includes a USB Based ISP cable (ATDH1150USB), a 44-TQFP adapter module, and ATF15xxAS/ASV samples in a 44-TQFP package. Adapter modules that support the 44-PLCC, 84-PLCC, and 100-TQFP packages are available separately.

Learn More
Add To Cart
USB ISP CABLE for ATF15xx CPLD
USB ISP CABLE for ATF15xx CPLD ( ATDH1150USB )

The ATF15xx CPLD USB-based JTAG ISP Download Cable connects to a standard USB 2.0 port on a PCand to a 10-pin or 14-pin JTAG header on the programming circuit board. It transfers the JTAG instructions and data generated by the ATMISP software running on a PC to the ATF15xx series CPLDs on the target circuit board. With this In-System Programming (ISP) download cable, design changes can easily be...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATF1502ASV-15JU44
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
ATF1502ASV-15AU44
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATF1502ASV-15AU44-T
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
