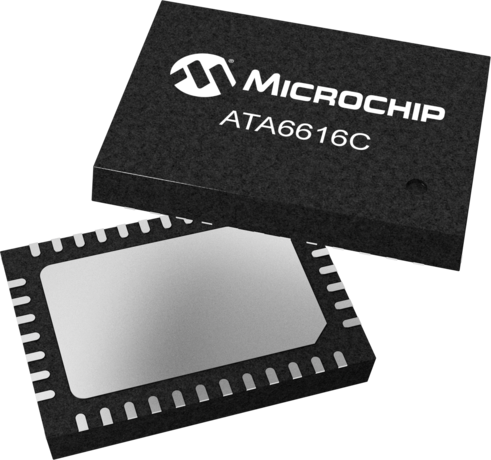

ATA6616C

Status: In Production

Features:

  • Single-package High Performance, Low Power AVR 8-bit Microcontroller with LIN Transceiver, 5V Regulator (85mA Current Capability) and Watchdog
  • Very Low Current Consumption in Sleep Mode
  • 8Kbytes Flash Memory for Application Program
  • Supply Voltage Up to 40V
  • Operating Voltage: 5V to 27
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The multi-chip LIN System-in-Package (SiP) is designed for LIN-bus node applications, supporting highly integrated solutions for in-vehicle LIN networks. The first LIN-system-basis-chip (LIN-SBC), ATA6624C has an integrated LIN transceiver, 5V regulator and window watchdog. The second chip contains the Microchip AVR ATtiny87 8-bit automotive microcontroller with advanced RISC architecture with 8 Kbytes of flash memory. All pins of the LIN-SBC and AVR microcontroller are bonded out to provide customers the same flexibility for their applications as they do with discrete devices.

Additional Features
    • Single-package High Performance, Low Power AVR 8-bit Microcontroller with LIN Transceiver, 5V Regulator (85mA Current Capability) and Watchdog
    • Very Low Current Consumption in Sleep Mode
    • 8Kbytes Flash Memory for Application Program
    • Supply Voltage Up to 40V
    • Operating Voltage: 5V to 27
Parametrics
Name
Value
Description
LIN System-in-Package (SiP) Solution
Vreg Output Voltage Options (V)
5.0 -
Vreg Output Current (mA)
85
Max. Baud Rate (kBaud)
20
Vcc Range (V)
5 to 27
Integrated VREG
Yes
Integrated WWDT
Yes

Documents

Jump to:

Data Sheets

Brochures

08/01/2015
3116KB
11/01/2013
5255KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
ATA6616-EK
ATA6616-EK ( ATA6616-EK )

Development board for ATA6616/17 ICs. It is designed to accelerate programming, prototyping and testing of new LIN designs.

Learn More
Add To Cart

Similar Devices

Product
Vcc Range
Vreg Output Voltage V
LIN Spec Supported
Price5K
5 - 27
5.0 -
2.0, 2.1, 2.2, SAE J2602-2
$2.16
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.37
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.58
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.14
5 - 27
5.0 -
1.3, 2.0, 2.1, 2.2, SAE J2602-2
$2.06
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.08
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.91
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2

5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$1.13
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.96
5 - 28
3.3 -

$0.41
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.41
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.35
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 -
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.52
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
5 - 28
5.0 -
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.57
-
5 -


5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.48
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.53
5 - 28
-
2.0, 2.1, 2.2, 2.2A, SAEJ2602-2
$0.93
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.90
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.93
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2
$1.99
5 - 28
3.3 -
2.0, 2.1, 2.2, 2.2A and SAEJ2602-2

6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.59
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.55
6 - 30
-
1.3, 2.0, 2.1, SAEJ2602, ISO17987
$0.44
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.59
6 - 27

1.3, 2.0, 2.1, SAEJ2602
$0.55
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$0.84
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.81
5.5 - 18
3.3 - 5.0
Rev 1.3, 2.0, 2.1, SAE J2602
$1.01
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$0.89
6 - 18
3.3 - 5.0
1.3, 2.0, 2.1, SAE J2602
$1.05

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA6616C-P3QW-1
0.098200
0.275000
38
VQFN
5x7x1mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
