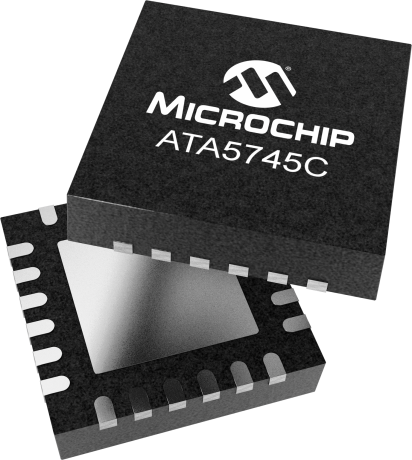

A low power UHF ASK/FSK transparent receiver device in a small QFN24 package. The transmitting frequency range is 433MHz to 435MHz band. The device combines the functions of remote keyless entry (RKE), a low bit rate ASK and tire pressure monitoring (TPM), a high bit rate FSK, into one receiver controled by an external microcontroller, such as an AVR® ATmega48. Works with PLL ATA5756 and ATA5757 transmitters. It supports Manchester bit rates of 1-10Kbits/s in ASK and 1-20Kbits/s in FSK mode with four selectable, discrete bit rate passbands. The receiver contains an RSSI output to indicate received signal strength and a SENSE input to select thresholds below which the DATA signal is gated off.
Development tools data is currently unavailable.
Rohs data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
