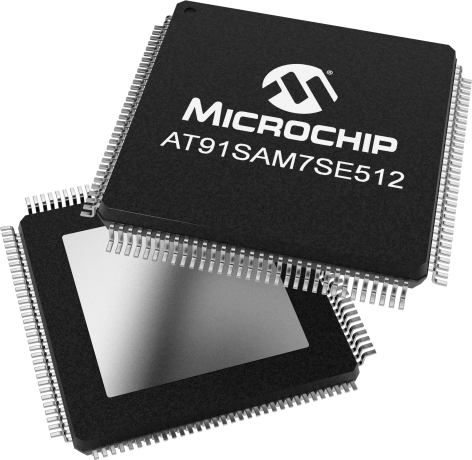

product primary image

AT91SAM7SE512

Status: Not Recommended for new designs

Features:

  • ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture
  • High-density 16-bit Instruction Set
  • EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
  • 512 Kbytes embedded Flash
  • 32 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed
  • Memory Controller (MC), External Bus Interface
  • Memory Protection Unit
  • Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
  • Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL
  • Power Management Controller (PMC)
  • Advanced Interrupt Controller (AIC)
  • Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
  • 20-bit Programmable Counter plus 12-bit Interval Counter
  • Windowed Watchdog (WDT)
  • Real-time Timer (RTT)
  • Three Parallel Input/Output Controllers (PIO)
  • Eleven Peripheral DMA Controller (PDC) Channels
  • Four High-current Drive I/O lines, Up to 16 mA Each
  • 128-lead LQFP Green Package
  • 144-ball LFBGA RoHS-compliant Package
  • One Synchronous Serial Controller (SSC)
  • Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
  • One Master/Slave Serial Peripheral Interfaces (SPI)
  • One USB 2.0 Full Speed (12 Mbits per second) Device Port
  • One Three-channel 16-bit Timer/Counter (TC)
  • One Four-channel 16-bit PWM Controller (PWMC)
  • One Two-wire Interface (TWI)
  • One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
  • Up to 55 MHz at 1.8V and 85⋅ C Worst Case Conditions
  • Up to 48 MHz at 1.65V and 85⋅ C Worst Case Conditions
  • SAM-BA - Interface with SAM-BA Graphic User Interface
  • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Microchip's ARM®-based SAM7SE512 is a member of the SAM7SE series of flash microcontrollers based on the 32-bit ARM7TDMI RISC processor.

It operates at a maximum speed of 55MHz and features 512KB of dual-bank flash memory and 32KB of SRAM.

The peripheral set includes an external bus interface (EBI) supporting static memory, ECC-enabled NAND, CompactFlash and SDRAM, UART, two USARTs, TWI (I2C), SPI, SSC, four 16-bit PWM controllers, three 16-bit timers, an RTT and one 8x10-bit ADC.

It achieves single-cycle instruction access from embedded flash at 27 MIPS. The multi-layer bus matrix, multiple SRAM banks, PDC, and DMA support parallel tasks and maximize data throughput.

The SAM7SE512 operates from 1.65V to 3.6V and is available in 144-pin LFBGA and LQFP 128-pin package.

Additional Features

    Microcontroller Features

    Core

    • ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture

    • High-density 16-bit Instruction Set

    • EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support

    Memories

    • 512 Kbytes embedded Flash

    • 32 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed

    • Memory Controller (MC), External Bus Interface

    • Memory Protection Unit

    System

    • Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector

    • Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL

    • Power Management Controller (PMC)

    • Advanced Interrupt Controller (AIC)

    • Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention

    • 20-bit Programmable Counter plus 12-bit Interval Counter

    • Windowed Watchdog (WDT)

    • Real-time Timer (RTT)

    • Three Parallel Input/Output Controllers (PIO)

    • Eleven Peripheral DMA Controller (PDC) Channels

    • Four High-current Drive I/O lines, Up to 16 mA Each

    Package

    • 128-lead LQFP Green Package

    • 144-ball LFBGA RoHS-compliant Package

    Peripheral Features

    • One Synchronous Serial Controller (SSC)

    • Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)

    • One Master/Slave Serial Peripheral Interfaces (SPI)

    • One USB 2.0 Full Speed (12 Mbits per second) Device Port

    • One Three-channel 16-bit Timer/Counter (TC)

    • One Four-channel 16-bit PWM Controller (PWMC)

    • One Two-wire Interface (TWI)

    Analog Features

    • One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os

    Fully Static Operation

    • Up to 55 MHz at 1.8V and 85⋅ C Worst Case Conditions
    • Up to 48 MHz at 1.65V and 85⋅ C Worst Case Conditions

    Debugger Development Support

    • SAM-BA - Interface with SAM-BA Graphic User Interface

    • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins

Parametrics
Name
Value
Part Family
AT91SAM7SE512
Max CPU Speed MHz
48
Program Memory Size (KB)
512
SRAM (KB)
32
DRAM Interface
sdram
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
3 to 3.6
SPI
1
I2C
1
Peripheral Pin Select / Pin Muxing
Yes
Number of USB Modules
1
ADC Input
8
Max ADC Resolution (Bits)
10
Max ADC Sampling Rate (ksps)
384
Input Capture
3
Max 16-bit Digital Timers
3
Parallel Port
EBI
Max I/O Pins
88
Pincount
144

Documents

Jump to:

Data Sheet

Application Notes

Download All

Product Document

01/01/2010
411KB

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
144
512
32,768
$8.94


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT91SAM7SE512B-CUR
0.214700
0.217000
144
LFBGA
10x10x1.4mm
LF35
e8
AT91SAM7SE512B-CU
0.214700
1.130435
144
LFBGA
10x10x1.4mm
LF35
e8
AT91SAM7SE512B-AUR
1.016800
1.017333
128
LQFP
14x20x1.4mm
Matte Tin
e3
AT91SAM7SE512B-AU
1.016800
2.708333
128
LQFP
14x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
