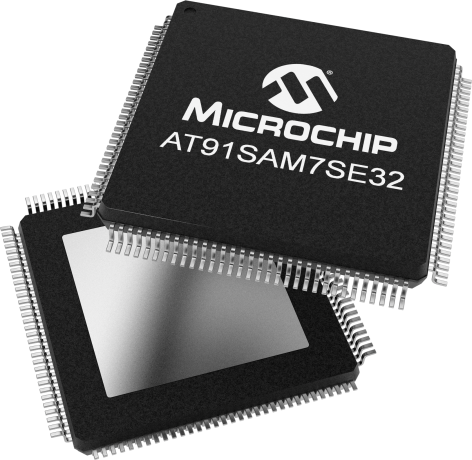

AT91SAM7SE32

Status: In Production

Features:

  • ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture
  • High-density 16-bit Instruction Set
  • EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
  • 32 Kbytes embedded Flash
  • 8 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed
  • Memory Controller (MC), External Bus Interface
  • Memory Protection Unit
  • Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
  • Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL
  • Power Management Controller (PMC)
  • Advanced Interrupt Controller (AIC)
  • Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
  • 20-bit Programmable Counter plus 12-bit Interval Counter
  • Windowed Watchdog (WDT)
  • Real-time Timer (RTT)
  • Three Parallel Input/Output Controllers (PIO)
  • Eleven Peripheral DMA Controller (PDC) Channels
  • Four High-current Drive I/O lines, Up to 16 mA Each
  • 128-lead LQFP Green Package
  • 144-ball LFBGA RoHS-compliant Package
  • One Synchronous Serial Controller (SSC)
  • Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
  • One Master/Slave Serial Peripheral Interfaces (SPI)
  • One USB 2.0 Full Speed (12 Mbits per second) Device Port
  • One Three-channel 16-bit Timer/Counter (TC)
  • One Four-channel 16-bit PWM Controller (PWMC)
  • One Two-wire Interface (TWI)
  • One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
  • Up to 55 MHz at 1.8V and 85⋅ C Worst Case Conditions
  • Up to 48 MHz at 1.65V and 85⋅ C Worst Case Conditions
  • SAM-BA - Interface with SAM-BA Graphic User Interface
  • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

Microchip's ARM®-based SAM7SE32 is a member of the SAM7SE series of flash microcontrollers based on the 32-bit ARM7TDMI RISC processor.

It operates at a maximum speed of 55MHz and features 32KB of flash memory and 8KB of SRAM.

The peripheral set includes an external bus interface (EBI) supporting static memory, ECC-enabled NAND, CompactFlash and SDRAM, UART, two USARTs, TWI (I2C), SPI, SSC, four 16-bit PWM controllers, three 16-bit timers, an RTT and one 8x10-bit ADC.

It achieves single-cycle instruction access from embedded flash at 27 MIPS. The multi-layer bus matrix, multiple SRAM banks, PDC, and DMA support parallel tasks and maximize data throughput.

The SAM7SE32 operates from 1.65V to 3.6V and is available in 144-pin LFBGA and LQFP 128-pin packages.

Additional Features

    Microcontroller Features

    Core

    • ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture

    • High-density 16-bit Instruction Set

    • EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support

    Memories

    • 32 Kbytes embedded Flash

    • 8 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed

    • Memory Controller (MC), External Bus Interface

    • Memory Protection Unit

    System

    • Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector

    • Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL

    • Power Management Controller (PMC)

    • Advanced Interrupt Controller (AIC)

    • Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention

    • 20-bit Programmable Counter plus 12-bit Interval Counter

    • Windowed Watchdog (WDT)

    • Real-time Timer (RTT)

    • Three Parallel Input/Output Controllers (PIO)

    • Eleven Peripheral DMA Controller (PDC) Channels

    • Four High-current Drive I/O lines, Up to 16 mA Each

    Package

    • 128-lead LQFP Green Package

    • 144-ball LFBGA RoHS-compliant Package

    Peripheral Features

    • One Synchronous Serial Controller (SSC)

    • Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)

    • One Master/Slave Serial Peripheral Interfaces (SPI)

    • One USB 2.0 Full Speed (12 Mbits per second) Device Port

    • One Three-channel 16-bit Timer/Counter (TC)

    • One Four-channel 16-bit PWM Controller (PWMC)

    • One Two-wire Interface (TWI)

    Analog Features

    • One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os

    Fully Static Operation

    • Up to 55 MHz at 1.8V and 85⋅ C Worst Case Conditions
    • Up to 48 MHz at 1.65V and 85⋅ C Worst Case Conditions

    Debugger Development Support

    • SAM-BA - Interface with SAM-BA Graphic User Interface

    • IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins

Parametrics
Name
Value
Part Family
AT91SAM7SE32
Max CPU Speed MHz
48
Program Memory Size (KB)
32
SRAM (KB)
8
DRAM Interface
sdram
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
3 to 3.6
Direct Memory Access Channels
11
SPI
1
I2C
1
Peripheral Pin Select / Pin Muxing
Yes
Number of USB Modules
1
ADC Input
8
Max ADC Resolution (Bits)
10
Max ADC Sampling Rate (ksps)
384
Input Capture
3
Max 16-bit Digital Timers
3
Parallel Port
EBI
Internal Oscillator
32Khz
Max I/O Pins
88
Pincount
144
