Status: In Production
Microchip's ARM®-based SAM7S64 is a member of the SAM7S series of flash microcontrollers based on the 32-bit ARM7TDMI RISC processor.
It operates at a maximum speed of 55MHz and features 32KB of flash memory and 16KB of SRAM.
The peripheral set includes a Full Speed USB device and PHY at 12Mbps, UART, two USARTs, TWI I2C), SPI, SSC, two PWM timers, three 16-bit timers, RTT, 8x10-bit ADC and 32 IO lines.
It achieves single-cycle instruction access from embedded flash at 27 MIPS.
The multi-layer bus matrix, multiple SRAM banks, PDC, and DMA support parallel tasks and maximize data throughput.

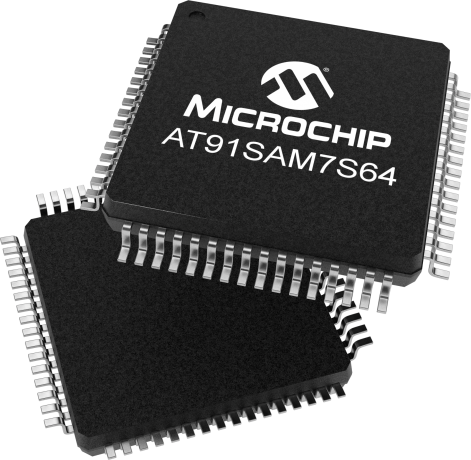

The SAM7S64 operates from 1.65V to 3.6V and is available in 64-pin LQFP and QFN packages.
ARM7TDMI® ARM® Thumb® Processor 32-bit RISC Architecture
High-density 16-bit Instruction Set
EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
64 Kbytes, Organized in 512 Pages of 128 Bytes (Single Plane)
16 Kbytes embedded SRAM, Single-cycle Access at Maximum Speed
Memory Controller (MC)
Memory Protection Unit
Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
Based on Power-on Reset Cells and Low-power Factory-calibrated Brownout Detector
Low-power RC Oscillator, 3 to 20 MHz On-chip Oscillator and One PLL
Power Management Controller (PMC)
Advanced Interrupt Controller (AIC)
Two-wire UART and Support for Debug Communication Channel interrupt, Programmable ICE Access Prevention
20-bit Programmable Counter plus 12-bit Interval Counter
Windowed Watchdog (WDT)
Real-time Timer (RTT)
32 Parallel Input/Output Controllers (PIO)
Eleven Peripheral DMA Controller (PDC) Channels
Four High-current Drive I/O lines, Up to 16 mA Each
One Synchronous Serial Controller (SSC)
Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
One Master/Slave Serial Peripheral Interfaces (SPI)
One USB 2.0 Full Speed (12 Mbits per second) Device Port
One Three-channel 16-bit Timer/Counter (TC)
One Four-channel 16-bit PWM Controller (PWMC)
One Two-wire Interface (TWI)
One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
Fully Static Operation
Debugger Development Support
SAM-BA - Interface with SAM-BA Graphic User Interface
IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
