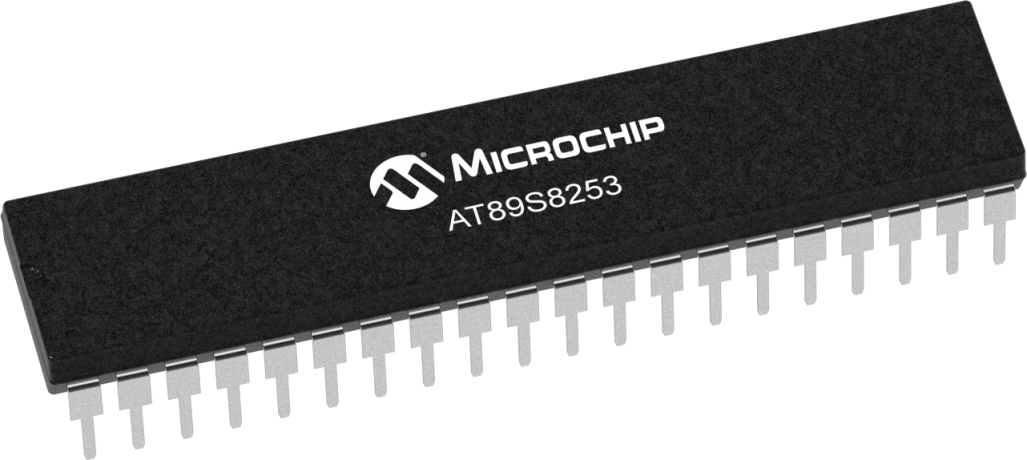

product primary image

AT89S8253

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low-power, high-performance, CMOS 8-bit microcontroller with 12KB of ISP flash program memory and 2KB of EEPROM data memory. The device is manufactured using Microchip high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51?? instruction set and pinout. On-chip downloadable flash allows the program memory to be reprogrammed in-system through an SPI serial interface or by a conventional nonvolatile memory programmer. This versatile 8-bit CPU with downloadable flash provides a highly-flexible and cost-effective solution for many embedded control applications.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
12
CPU Speed (MIPS/DMIPS)
4
Data EEPROM/HEF (bytes)
2048
Digital Communication Peripherals
1-UART, 1-SPI,
Temperature Range (C)
0 to 0
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
44

Documents

Jump to:

Data Sheets

Application Notes

Download All
03/01/2007
255KB

Brochures

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89S8253-24PU
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
AT89S8253-24JU
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89S8253-24JUR
2.375500
3.400000
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89S8253-24AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
