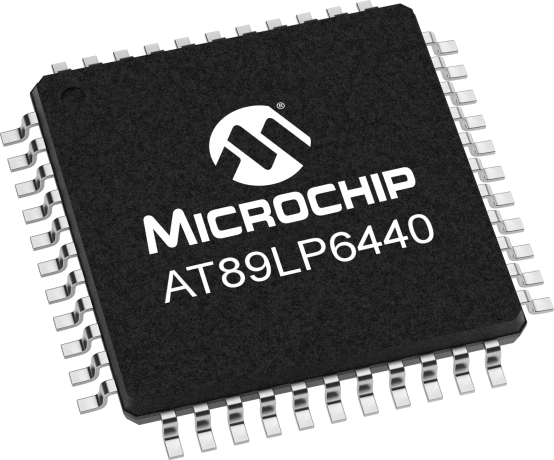

product primary image

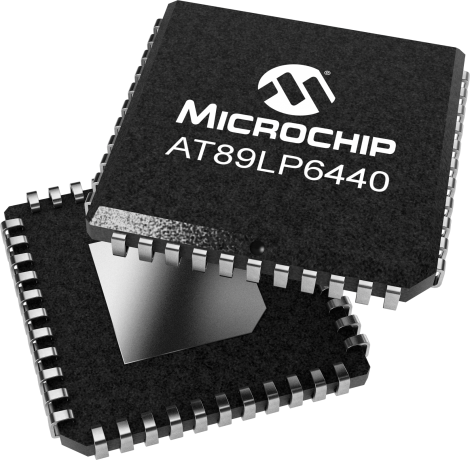

AT89LP6440

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Single-cycle microcontroller with 64KB ISP flash. It includes 8192 bytes flash data memory, 4352 bytes RAM, PWM, UART, TWI, SPI, up to 38 I/Os, 10-bit A/D, an internal RC oscillator, and on-chip debug.

Key Features:

  • 100% compatible with 80C51 instruction set, with on average 9 times more throughput than standard 12-clock 8051s, up to 1 MIPs per MHz.
  • Hardware acceleration of DSP routines like FIR/IIR filters using the 16x16+40 Multiply-Accumulate Unit and circular buffer addressing.
  • Enhanced PWM modes for advanced waveform generation.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
20
SRAM (B)
4
Data EEPROM/HEF (bytes)
8192
Digital Communication Peripherals
1-UART, 1-SPI, 1-I2C
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
2.4 to 3.6
Pin Count
44

Documents

Jump to:
×

Data Sheets

AT89LP3240/6440 - Complete Datasheet

6046KB

Supporting Collateral

Single Cycle 8051 Core - AT89LP Family of High Performance & Low Power Flash Mi

284KB

Application Notes

Download All
AN_0507 - Interfacing AT24CXX Serial EEPROMs with AT89LP MCUs

128KB
AN_0508 - Controlling FPGA Configuration with a Flash-based Microcontroller

44KB
AN_0510 - Programming the Family of Flash Memories

33KB
AN_0521 - Interfacing AT93CXXX Serial EEPROMs with AT89LP MCUs

112KB
AN_0524 - Analog-to-Digital Conversion Utilizing AT89LP MCU without ADC

168KB
AN_0593 - Two-Wire Peripheral Expansion for the AT89LP2052 MCU

205KB
AN_0597 - A Digital Thermometer Using the AT89LP2052 MCU

136KB
AN_0628 - Interfacing AT25CXXX Serial EEPROMs with AT89LP MCUs

113KB
AN_1489 - PC-Interfaced Data Aquisition System with the AT89C2051 Microcontroller

194KB
AN_3310 - AT89ISP Programmer Cable

98KB
AN_3573 - Migrating from AT89C2051/C4051 to AT89LP2052/LP4052

150KB
AN_3593 - AT89LP In-System Programming Specification

593KB
AN_3617 - Migrating from Philips P89LPC913 to AT89LP214

100KB
AN_3658 - AT89LP2052/4052 Primer

219KB
AN_3707 - Emulating EEPROM Using AT89LP On-Chip Flash Data Memory

341KB
AN_3708 - AT89LP Flash Data Memory API

229KB
AN_3713 - Digital Filtering with AT89LP6440

508KB
AN_3715 - Migrating from AT89S52 to AT89LP52

376KB
AN_3718 - AT89LP52 Drop-In Replacement of AT89S52

141KB
AN_4214 - Driving Unipolar Stepper Motors Using 8051

449KB
AN_4279 - EMC Improvement Guidelines

318KB
AN_4284 - How to Calculate the Capacitor of the Reset Input of an 8051 Microcontroller

855KB
AN_4345 - Program Examples for 8051 Timers

664KB
AN_4346 - Program Examples for 8051 UART

190KB
AN_4363 - Analyzing the Behavior of an Oscillator and Ensuring Good Start-up

246KB
AN_7764 - Design Guide for 8051 Standard Devices

239KB
AN_8128 - AVR186: Best practices for the PCB layout of Oscillators

139KB
AN_AT89LP - AT89LP ADC Implementation

384KB
AN2468 - Production Programming of Microchip AVR and SAM Microcontrollers

333KB

Board Design Files

AT89LP ISP Studio Dongle Board

74KB
AT89LP ISP Studio Dongle USB Board

70KB
AT89LP OCD Programming Board - This contains the schematic and firmware necessary to build the OCD Programming board hardware compatible with the AT89LP Developer Studio and ISP Studio software. In addition, the PCB board layout files are included as a reference design.

115KB
AT89LP OCD Programming USB Board - This contains the schematic and firmware necessary to build the OCD Programming board hardware compatible with the AT89LP Developer Studio and ISP Studio software. In addition, the PCB board layout files are included as a reference design.

895KB

Brochures

8051 Single Cycle Core Microcontrollers - AT89LP family consists of high performance 8-bit microcontrollers that execute most instructions in a single clock cycle, whereas the classic 8051CPU requires 12 clock cycles.

162KB
Atmel Flash Microcontroller Product Portfolio

3582KB

MISC

Calculation tool for setting Timers, UART, parameters in 80C51 Microcontrollers - This Excel file allows a user to determine register values for PCA, UART and Timers in order to obtain a specific signal (period and duty cycle) according to the application`s oscillator frequency and internal clock mode (X1 or X2).

18KB
Hardware Connections for C51 Microcontrollers - This document provides schematics that outline the hardware connections to C51 microcontrollers from USB, CAN, UART, and UART Auto interfaces.

43KB
NXP Flash MCU to Atmel Flash MCU Cross Reference - This cross reference table helps you choose the right pin-to-pin compatible Atmel 8051 Flash MCU to replace an end-of-life NXP 8051 device.

86KB
NXP Flash MCU to Atmel Flash MCU Devices, Non-Direct Replacements - This cross reference table helps you choose Atmel Flash MCUs to replace NXP Flash MCUs (these are non-direct replacements that are not pin-to-pin compatible).

40KB
Package Adapters of 80C51 Devices - This Excel spreadsheet list available package adapters for Atmel 80C51 microcontrollers

32KB
Tables for setting UART parameters in 80C51 Microcontrollers - This Excel file provides configuration tables to allow a user to determine register values for UART according to the application`s oscillator frequency and internal clock mode (X1 or X2).

27KB

User Guides

8051 Microcontroller Instruction Set

1128KB
8051 Microcontrollers Hardware Manual

1767KB
AT89LP Developer Studio User Manual

830KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
maXTouch Xplained Pro
maXTouch Xplained Pro ( ATMXT-XPRO )
(Not Recommended for new design)

maXTouch Xplained Pro is an extension board in the Xplained Pro evaluation platform. The board enables the user to experiment with user interface applications with maXTouch and LCD.
Xplained Pro evaluation kits that can communicate with maXTouch Xplained Pro can be purchased individually.

For compatible Xplained Pro Evaluation kits see the Related Tools tab.

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
AT89LP2052
20
2
0
$0.99

AT89LP213
14
2
0
$0.96

AT89LP214
14
2
0
$0.96

AT89LP216
16
2
0
$0.97

AT89LP3240
44
32
4
$2.22

AT89LP4052
20
4
0
$1.11

AT89LP428
32
4
0
$1.34

AT89LP51
44
4
0
$0.55

AT89LP51ED2
44
64
2
$2.83

AT89LP51IC2
44
32
1
$2.38

AT89LP51ID2
44
64
2
$3.04

AT89LP51RB2
44
0
1
$1.94

AT89LP51RC2
44
32
1
$2.03

AT89LP51RD2
44
64
2
$2.57

AT89LP52
44
8
0
$0.62

AT89LP6440
44
64
4
$2.57

AT89LP828
32
8
0
$1.43


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89LP6440-20AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
AT89LP6440-20MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
AT89LP6440-20JU
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89LP6440-20PU
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
