AT89LP214

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Low-power, high-performance CMOS 8-bit microcontroller with 2KB of ISP flash memory. The device uses Microchip high-density nonvolatile memory technology and is compatible with the industry-standard MCS??-51 instruction set.

An enhanced CPU core can fetch a single byte from memory every clock cycle and is capable of 20 MIPS throughput. The new CPU core runs at a much lower speed, greatly reducing power consumption.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
2
CPU Speed (MIPS/DMIPS)
20
Digital Communication Peripherals
1-UART, 1-SPI,
Temperature Range (C)
0 to 0
Operating Voltage Range (V)
2.4 to 5
Pin Count
14

Documents

Jump to:

Data Sheet

Application Notes

Download All

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
maXTouch Xplained Pro
maXTouch Xplained Pro ( ATMXT-XPRO )
(Not Recommended for new design)

maXTouch Xplained Pro is an extension board in the Xplained Pro evaluation platform. The board enables the user to experiment with user interface applications with maXTouch and LCD.
Xplained Pro evaluation kits that can communicate with maXTouch Xplained Pro can be purchased individually.

For compatible Xplained Pro Evaluation kits see the Related Tools tab.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP

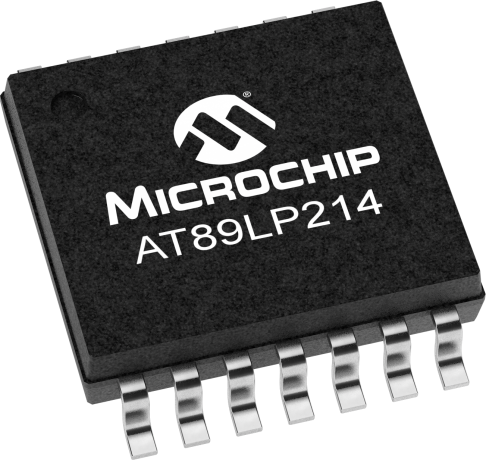

AT89LP214-20XU
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3

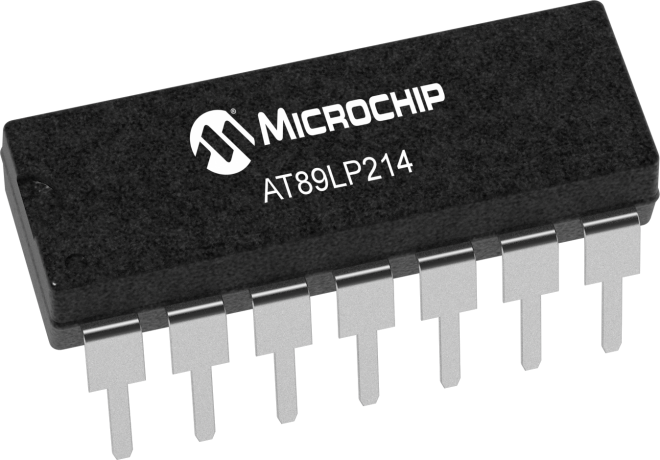

AT89LP214-20PU
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
