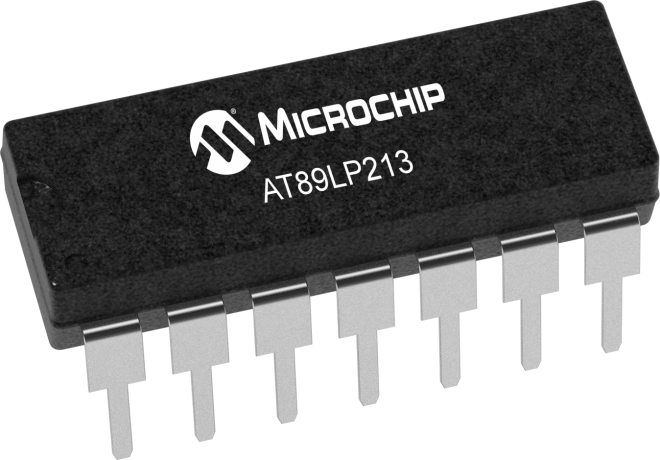

product primary image

AT89LP213

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

Low-power, high-performance CMOS 8-bit microcontroller with 2KB of ISP flash memory. The device uses Microchip high-density nonvolatile memory technology and is compatible with the industry-standard MCS??-51 instruction set.

An enhanced CPU core can fetch a single byte from memory every clock cycle and is capable of 20 MIPS throughput. The new CPU core runs at a much lower speed, greatly reducing power consumption.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
2
CPU Speed (MIPS/DMIPS)
20
Digital Communication Peripherals
1-SPI,
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
2.4 to 5.5
Pin Count
14

Documents

Jump to:

Data Sheets

Application Notes

Download All

Development tools data is currently unavailable.

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
20
2
0
$1.04

14
2
0
$1.06

14
2
0
$1.06

16
2
0
$1.02

44
32
4
$2.33

20
4
0
$1.22

32
4
0
$1.41

44
4
0
$0.58

44
64
2
$2.97

44
32
1
$2.50

44
64
2
$3.19

44
0
1
$2.04

44
32
1
$2.25

44
64
2
$2.70

44
8
0
$0.65

44
64
4
$2.70

32
8
0
$1.57


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89LP213-20XU
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
AT89LP213-20PU
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
