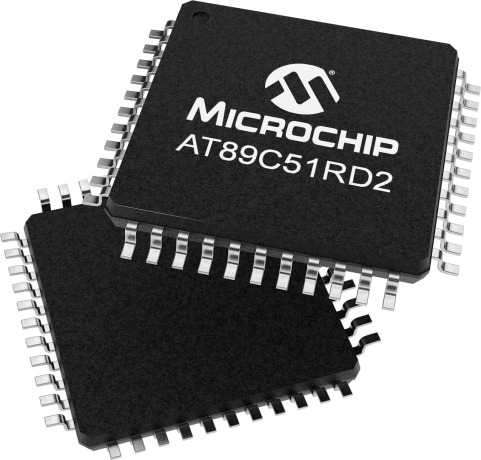

product primary image

AT89C51RD2

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

High performance CMOS flash version of the 80C51 CMOS single-chip 8-bit microcontroller with a 64-KB flash memory block for code and for data. The flash memory can be programmed in parallel or serial mode using ISP or software. The programming voltage is internally generated from the standard VCC pin.

This device retains all of the features of the Microchip 80C52 and adds a programmable counter array, 1792 bytes of XRAM, hardware watchdog timer, SPI interface, keyboard, versatile serial channel that facilitates multiprocessor communication (EUART), and a speed improvement mechanism (X2 Mode).

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
10
SRAM Bytes
2
Digital Communication Peripherals
1-UART, 1-SPI,
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
44

Documents

Jump to:

Data Sheets

Application Notes

Download All
12/10/2016
47KB
12/11/2016
255KB

Brochures

MISC


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89C51RD2-RLRUM
0.341100
0.340667
44
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51RD2-RLTUM
0.341100
1.418750
44
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51RD2-RDTUM
0.368300
1.087500
64
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51RD2-SLRUM
2.375500
3.400000
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
AT89C51RD2-SLSUM
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
