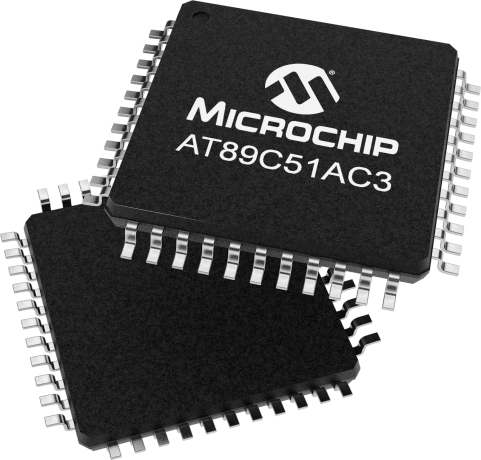

product primary image

AT89C51AC3

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Highperformance flash version of the 80C51 single-chip 8-bit microcontrollers. It provides 64K Bytes of flash memory including ISP and IAP, 2KB boot flash memory, 2KB EEPROM and 2048 bytes of ERAM.

In X2 mode a maximum external clock rate of 20MHz reaches a 300ns cycle time. Primary attention is paid to reducing the device's electro-magnetic emissions.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
10
SRAM Bytes
2
Data EEPROM/HEF (bytes)
2048
Digital Communication Peripherals
1-UART, 1-SPI,
Temperature Range (C)
0 to 0
Operating Voltage Range (V)
3 to 5.5
Pin Count
64

Documents

Jump to:

Data Sheet

Application Notes

Download All
03/01/2007
255KB

Brochures

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89C51AC3-RLTUM
0.341100
1.418750
44
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51AC3-S3SUM
3.222200
3.217391
52
PLCC
19.1x19.1x4.4mm
Matte Tin
e3
AT89C51AC3-RDTUM
0.368300
1.087500
64
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51AC3-SLSUM
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
