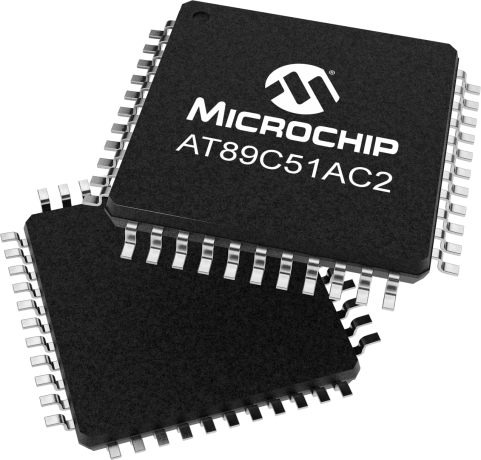

product primary image

AT89C51AC2

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

High-performance flash version of the 80C51 single-chip, 8-bit microcontroller with a 32-KB flash memory block for program and data. Flash memory can be programmed in parallel or serial mode using ISP or software. The programming voltage is internally generated from the standard VCC pin.

The device retains all features of the 80C51 and adds a 10-bit A/D converter, 2KB boot flash memory, 2KB EEPROM for data, a programmable counter array, 1024 bytes of XRAM, a hardware watch-dog timer, and a more versatile serial channel that facilitates multiprocessor communication (EUART). A fully-static design reduces system power consumption by reducing the clock frequency without data loss.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
32
CPU Speed (MIPS/DMIPS)
6.66666666666667
SRAM (KB)
1
Data EEPROM/HEF (bytes)
2048
Digital Communication Peripherals
1-UART,
Temperature Range (°C)
0 to 0
Operating Voltage Range (V)
3 to 5.5
Pin Count
44

Documents

Jump to:

Application Notes

Download All

MISC


Development tools data is currently unavailable.

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
44
0
1
$0.98

32
0
1


32
0
1


64
0
1


20
0
0


20
2
0
$0.69

20
4
0
$0.73

32
16
0
$4.42

64
16
1
$3.09

64
32
1
$3.91

64
32
1
$3.81

44
32
1
$4.72

64
64
2
$4.91

44
32
1
$4.58

32
16
0
$4.12

64
64
2
$5.39

44
64
2
$4.72

44
32
1
$4.03

44
64
2
$5.80

44
16
1
$3.44

44
32
0
$1.39

44
32
1
$3.93

44
20
0
$1.39

20
4
0


44
4
0
$1.03

44
8
0
$1.12

20
2
0
$1.26

20
4
0
$1.08

44
4
0
$1.03

44
8
0
$1.11

44
12
0
$1.30


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT89C51AC2-RLTUM
0.341100
1.418750
44
LQFP
10x10x1.4mm
Matte Tin
e3
AT89C51AC2-SLSUM
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
