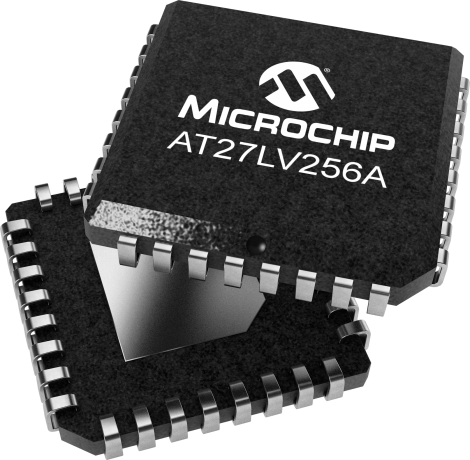

product primary image

AT27LV256A

Status: In Production

Features:

  • 256-Kbit (32-Kbit x 8)
  • Dual voltage range operation
  • Low voltage, 3.0V to 3.6V, or
  • Standard power supply range, 5V +/-10%
  • Low-power CMOS operation
  • 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
  • 29 mW max active at 5 MHz for VCC = 3.6V
  • Parallel Interface
  • 90 ns access time
  • High-reliability CMOS technology
  • 2,000V ESD protection
  • 200 mA latchup immunity
  • Rapid programming algorithm – 100 μs/byte (typical)
  • CMOS and TTL compatible inputs and outputs
  • JEDEC standard for LVTTL
  • Integrated product identification code
  • Industrial Temperature Range: -40°C to 85°C
  • Available in Green (Pb/Halide-free) Packaging Only

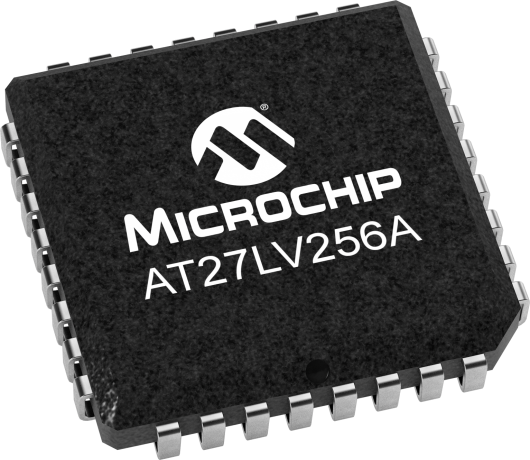

  • 32-lead, Plastic J-leaded Chip Carrier (PLCC)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip AT27LV256A is a high-performance, low-power, low-voltage 256-Kbit One Time Programmable EPROM organized as 32-Kbit x 8. Requiring a single power supply in the range of 3.0V to 3.6V in normal read mode operation any byte can be accessed in less than 90 ns. Typical power consumption of only 18 mW at 5 MHz and VCC = 3.3V, the AT27LV256A consumes less than one-fifth the power of a standard, 5V EPROM. Standby mode supply current is typically less than 1 μA at 3.3V making it ideal for fast, portable systems using battery power.

Additional Features
    • 256-Kbit (32-Kbit x 8)

    • Dual voltage range operation

      • Low voltage, 3.0V to 3.6V, or
      • Standard power supply range, 5V +/-10%
    • Low-power CMOS operation
      • 20 μA max standby (less than 1 μA, typical) for VCC = 3.6V
      • 29 mW max active at 5 MHz for VCC = 3.6V
    • Parallel Interface
      • 90 ns access time
    • High-reliability CMOS technology
      • 2,000V ESD protection
      • 200 mA latchup immunity
    • Rapid programming algorithm – 100 μs/byte (typical)
    • CMOS and TTL compatible inputs and outputs
      • JEDEC standard for LVTTL
    • Integrated product identification code
    • Industrial Temperature Range: -40°C to 85°C
    • Available in Green (Pb/Halide-free) Packaging Only
      • 32-lead, Plastic J-leaded Chip Carrier (PLCC)
Parametrics
Name
Value
Density
256Kb
Read Access Time
90 ns
Temp Range (°C)
-40°C to +85°C

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price5K


PLCC-32
$1.46


PDIP-28, PLCC-32
$1.04


PLCC-32
$1.16

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT27LV256A-90JU
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
Rohs icon
efup china icon
AT27LV256A-90JU-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
