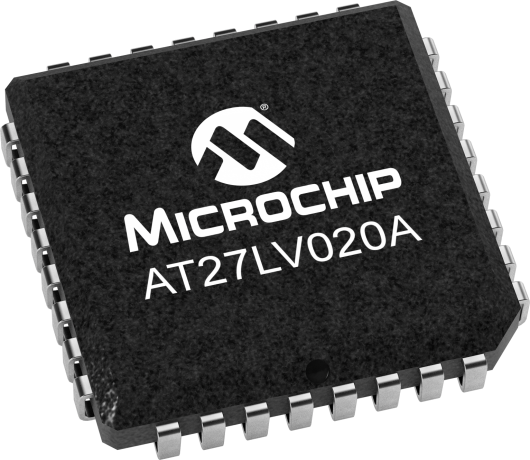

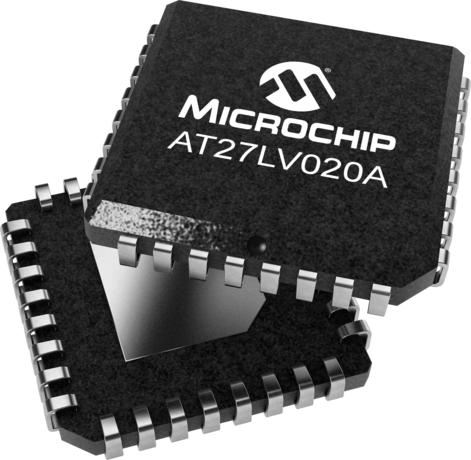

The Microchip AT27LV020A is a high-performance, low-power, low-voltage 2-megabit One Time Programmable EPROM organized as 256-Kbit x 8. Requiring a single power supply in the range of 3.0V to 3.6V in normal read mode operation any byte can be accessed in less than 120 ns. With typical power consumption of only 18 mW at 5 MHz and VCC = 3.3V, the AT27LV020A consumes less than one-fifth the power of a standard, 5V EPROM. Standby mode supply current is typically less than 1 μA at 3.3V making it ideal for fast, portable systems using battery power.
2-Mbit (256-Kbit x 8)
Dual voltage range operation
