The Microchip AT24C08D is an 8 Kb Serial EEPROM utilizing an I²C (2-wire) serial interface. The device is organized as one block of 1,024 x 8 and is optimized for use in industrial and consumer applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options and operates from 1.7V to 3.6V.

• 1024 x 8 (8 Kbit)
• 2-Wire Serial Interface, I²C Compatible
  • 400 kHz (1.7V) and 1 MHz (>2.5V) clock compatibility
  • Supports up to 2 devices on the bus
• Self-Timed Erase and Write Cycles (5 ms max.)
• Low Power Consumption
  • Read current 0.15 mA (Typ), 0.5 mA (Max)
  • Write current 0.2 mA (Typ), 1 mA (Max)
  • Standby current 0.1 uA (Typ), 0.8 uA (Max)
• Hardware Write-Protect Pin
• More than 1 million erase/write cycles
• Data retention > 100 years
• Factory Programming Available

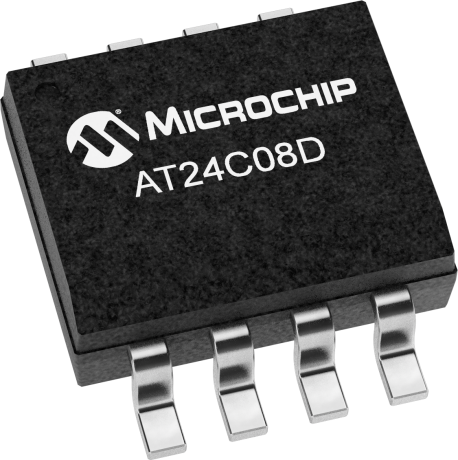

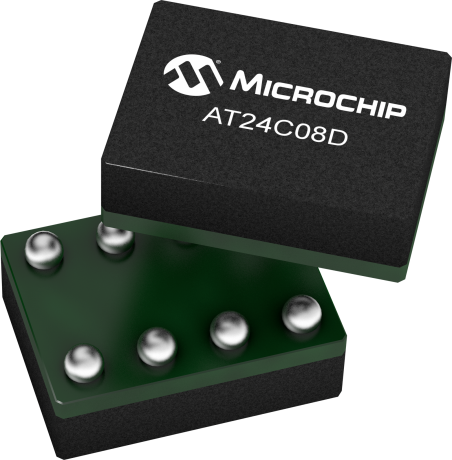

• Available in 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-lead PDIP, 5-lead SOT23, 8-ball VFBGA, and 4-ball WLCSP
