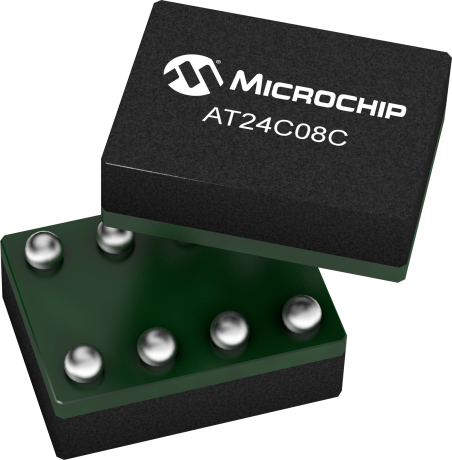

product primary image

AT24C08C

8Kb I2C compatible 2-wire Serial EEPROM

Status: In Production

Features:

  • 1024 x 8 (8 Kbit)
  • 400 kHz (1.7V) and 1 MHz (>2.5V) clock compatibility
  • Supports up to 2 devices on the bus
  • Self-Timed Erase and Write Cycles (5 ms max.)
  • Read current 0.4 mA (Typ), 1 mA (Max)
  • Write current 2 mA (Typ), 3 mA (Max)
  • Standby current 6 uA (Max)
  • Hardware Write-Protect Pin
  • More than 1 million erase/write cycles
  • Data retention > 100 years
  • Grade 1 Temperature Range: -40°C to 125°C
  • Grade 2 Temperature Range: -40°C to 105°C
  • Grade 3 Temperature Range: -40°C to 85°C
  • Qualified for Automotive Applications
  • Factory Programming Available
  • Available in 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The Microchip AT24C08C is an 8 Kb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 1,024 x 8 and is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.

Additional Features
  • 1024 x 8 (8 Kbit)
  • 2-Wire Serial Interface, I2C Compatible
    • 400 kHz (1.7V) and 1 MHz (>2.5V) clock compatibility
    • Supports up to 2 devices on the bus
  • Self-Timed Erase and Write Cycles (5 ms max.)
  • Low Power Consumption
    • Read current 0.4 mA (Typ), 1 mA (Max)
    • Write current 2 mA (Typ), 3 mA (Max)
    • Standby current 6 uA (Max)
  • Hardware Write-Protect Pin
  • More than 1 million erase/write cycles
  • Data retention > 100 years
  • Extended Temperature Ranges Available (Grade 1, 2, and 3 as defined in AEC-Q100)
    • Grade 1 Temperature Range: -40°C to 125°C
    • Grade 2 Temperature Range: -40°C to 105°C
    • Grade 3 Temperature Range: -40°C to 85°C
  • Qualified for Automotive Applications
  • Factory Programming Available
  • Available in 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
Parametrics
Name
Value
Density
8K bits
Op. Volt Range (V)
1.7 to 5.5
Max. Clock Freq.
1 MHz
Page Size (bytes)
16
Write Protect
Whole Array
Temp Range (°C)
-40°C to +125°C
Endurance
1,000,000

Documents

Jump to:

Brochures


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
8K
400 kHz
CSP-4, DFN-8, MSOP-8, PDIP-8, SOIC-8, SOT-23-5, TDFN-8, TSSOP-8
$0.19
8K
400 kHz
MSOP-8, PDIP-8, SOIC-8, SOT-23-5, TDFN-8, TSSOP-8
$0.19
8K
400 kHz
DFN-8, MSOP-8, PDIP-8, SOIC-8, SOT-23-5, TDFN-8, TSSOP-8
$0.19
8K
400 kHz
MSOP-8, PDIP-8, SOIC-8, SOT-23-5, TDFN-8, TSSOP-8
$0.19

1 MHz
PDIP-8, SOIC-8, SOT-23-5, TSSOP-8, UDFN-8
$0.16

1 MHz
PDIP-8, SOIC-8, SOT-23-5, TSSOP-8, UDFN-8
$0.14

1 MHz
SOIC 150mil-8, SOIC-8, TSOT-5, TSSOP-8, UDFN-8
$0.20

1 MHz
WLCSP-4
$0.26

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT24C08C-MAHM-T
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
AT24C08C-STPD-TVAO
0.011900
0.199200
5
TSOT
1.6x2.9x1.1mm
Matte Tin
e3
AT24C08C-XHM-T
0.035800
0.199200
8
TSSOP
4.4mm
NiPdAu
e4
AT24C08C-XHM-B
0.035800
0.190000
8
TSSOP
4.4mm
NiPdAu
e4
AT24C08C-MAHM-E
0.009600
0.084000
8
UDFN
2x3x0.6mm
NiPdAu
e4
AT24C08C-SSHM-T
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C08C-SSHM-B
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
AT24C08C-STUM-T
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
AT24C08C-PUM
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
