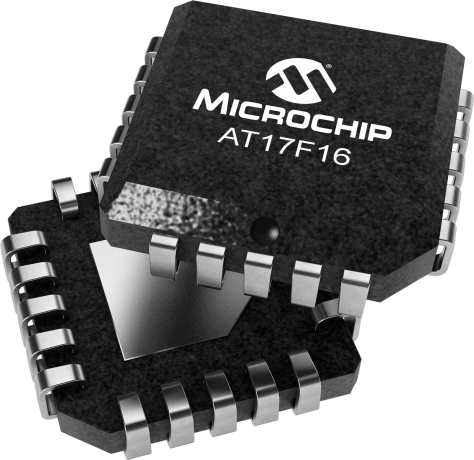

product primary image

AT17F16

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip 16-Mb in-system programmable configuration PROM provides easy-to-use, cost-effective configuration memory for FPGAs. It comes in 8-lead LAP and 20-lead PLCC packages. This PROM can configure one or more FPGA devices using a simple serial-access procedure. It can be programmed with industry-standard programmers, the Microchip ATDH2200E programming kit, or the Microchip ATDH2225 ISP cable.

Parametrics
Name
Value
Interface Type
Xilinx
Density
16Mb
Temperature Range (V)
-40 to 85
Max# Operating Freq# (MHz)
33
Operating Voltage Range (V)
2.97 to 3.63

Documents

Jump to:

Data Sheets

Software Libraries/Firmware


6590KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT17F16-30CU
0.074800
0.070000
8
CASON
6x6x1.04mm
Matte Tin
e3
AT17F16A-30CU
0.074800
0.070000
8
CASON
6x6x1.04mm
Matte Tin
e3
AT17F16-30JU
0.751700
1.428571
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
AT17F16A-30JU
0.751700
1.428571
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
