Device Accessory Kits

ASB

Accessories for Gate Drivers

Status: Samples Available

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

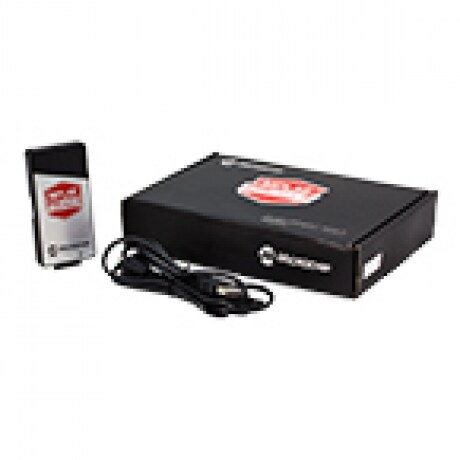

ASBK-014 kits include a programmer, adapter board and cables that enable connecting a PC to an AgileSwitch Digital Programmable gate driver core or board. These kits are required to change configuration parameters using the Intelligent Configuration Tool (ICT).

ASBK-015 kits are hardware only and include all of the mechanical components required to connect SP6LI SiC Modules and Module Adapter Boards. This combination offers a Total SiC Solution for most power conversion applications.

Additional Features
  • ASBK-014 Kits include:
    • 1x Microchip PICKIT4 programmer
    • 1x AgileSwitch ASB-014 adapter
    • 2x programming cables
  • ASBK-015 Kits include:
    • 2x SP6LI Board Mounting Brackets
    • 2x NTC Cables
    • 1x VDC Link Cable
    • Assembly Hardware
    • T-10 Torx tool
Parametrics
Name
Value
Software Configurable
Yes
Usable Device Voltage(V)
1200-1700
Short-Circuit Protection
N/A
Short-Circuit Response Time
N/A
Integrated DC-DC Converter
N/A

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ASB-014
0.006000
0.102000
N/A
N/A
1.05x0.8x0.5 cm
N/A
N/A
ASBK-014
0.203000
0.203000
N/A
N/A
19.6x13.3x3.2 cm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
