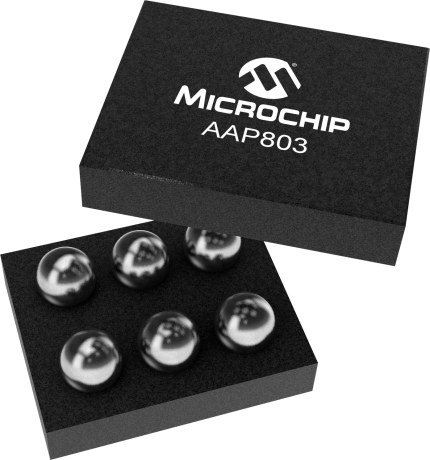

product primary image

AAP803

ECM Microphone Preamplifier

Status: In Production

Features:

  • Adjustable Voltage Gain up to 27dB, 100Hz to 10kHz
  • Quiescent Current 125µA
  • Low Voltage Operation 1.5V with 450Ω Load
  • Low Input Capacitance 0.7pF
  • Low Output Impedance <30Ω
  • Low Noise <1.3µV RMS Input Noise (A-weighted, input shorted)
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The AAP803AX ECM microphone preamplifier is a chip-scale device developed specifically for integrating in small form factor two terminal electret condenser microphones.
The AAP803Ax preamplifier provides reduced input capacitance, improved noise performance and larger output swing at a lower supply voltage.
The AAP803Ax is offered in two versions with the part numbers AAP803A1 and AAP803A3.  The AAP803A1 has 3 gain settings (low, mid and high and the A3 has 2 gain settings (mid and max) both are designed with low quiescent current consumption for use in lower power typically battery powered applications. The gain setting is done by selecting the proper FB pin for the signal path (1, 2, or 1 and 2).
The AAP803Ax is provided in a chip scale SMD package.  The package size is 820µm x 550µm; with an overall height of 315µm including solder bumps.  This extremely small package size and aspect ratio is optimum for use in small diameter microphones.

Additional Features
  • Adjustable Voltage Gain up to 27dB, 100Hz to 10kHz
  • Quiescent Current 125µA
  • Low Voltage Operation 1.5V with 450Ω Load
  • Low Input Capacitance 0.7pF
  • Low Output Impedance <30Ω
  • Low Noise <1.3µV RMS Input Noise (A-weighted, input shorted)
  • ESD Protection 7.5kV Minimum at Output
  • High Pass, Low Pass and Band Pass Filtering with External Components
  • RoHS Compliant & Halogen Free
  • Microphone Preamplifiers
Parametrics
Name
Value
Supply Voltage
1.6V to 5V,3.5V to 10V
Typical Supply Voltage
1.6V, 5V
Input Capacitance
0.7pF
Gain (dB)
11 to 18,16 or 26
Input Referred Noise
1.5
THD
<1.1% @Vout=-24dBV,<0.85% @Vout=-24dBV
Quiescent current(uA)
107, 127
Output Impedance
20
ESD (HBM)
+/-7.5kV
Applicable Microphone
ECM

Documents

Jump to:

Data Sheets


356KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AAP803A3
0.000620
0.026571
6
WLCSP
0.84x0.57x0.355mm
SnAg4Cu0.5
e1
AAP803A1
0.000620
0.026571
6
WLCSP
0.84x0.57x0.355mm
SnAg4Cu0.5
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
