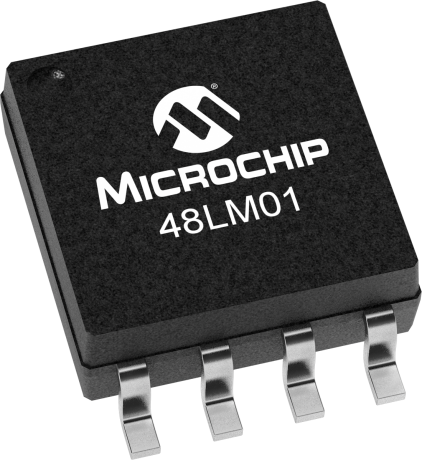

48LM01

1 Mb SPI Serial EERAM

Status: In Production

Features:

  • 131,072 x 8 bit Serial SRAM with internal nonvolatile data backup
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

EERAM is an SRAM that doesn't lose its content on a power disruption.  Inside each memory cell, transparent to the user, are nonvolatile transistors that capture the SRAM content and hold it through power loss events. On power restore, the SRAM is reloaded with its last content and SRAM operation can continue.

For product comparison, please consider: 48L512

Additional Features
  • 131,072 x 8 bit Serial SRAM with internal nonvolatile data backup
  • High-Speed SPI Interface: Up to 66MHz with Schmitt trigger inputs for noise suppression
  • Low-Power CMOS Technology: Active current: 5 mA (maximum); Standby current: 500 μA (maximum); Hibernate current: 3 μA (maximum)
  • Cell-Based Nonvolatile Backup mirrors SRAM array cell-for-cell and transfers all data to/from SRAM cells in parallel (all cells at same time)
  • Invisible-to-User Data Transfers: VCC level monitored inside device, SRAM automatically saved on power disrupt, and SRAM automatically restored on VCC return
  • 100,000 Backups Minimum (at 20°C)
  • 100 years retention (at 20°C)
  • Operating Voltage Range: 2.7V-3.6V
  • Temperature Range Industrial (I) -40 to 85ºC, Extended (E) -40 to 125ºC
  • 8-SOIJ (208mil wide) package
Parametrics
Name
Value
Density
1 Mb
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
66MHz
Page Size (bytes)
1
Temp Range (°C)
-40°C to +85°C
Endurance
100000
Data Retention (Years)
100
Bus Modes
SPI

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K

66MHz
SOIJ-8
$3.09

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
48LM01-I/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
48LM01T-I/SM
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
