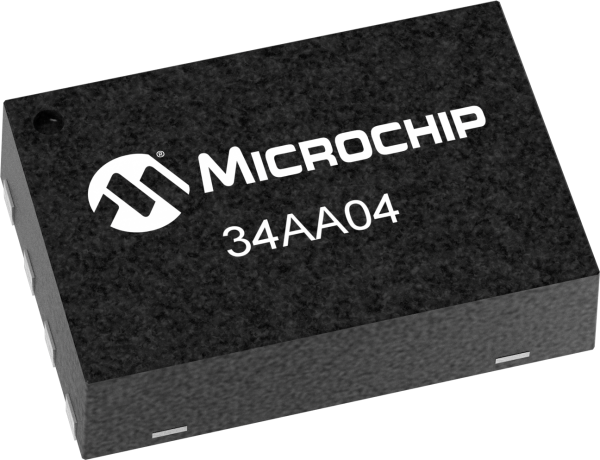

34AA04

4Kb I2C compatible Serial Present Detect (SPD) Serial EEPROM for DDR4 DIMM modules

Status: In Production

Features:

  • 4 Kbit I2C EEPROM
  • Internally organized as two 256 x 8-bit banks
  • Byte or page writes (up to 16 bytes)
  • Byte or sequential reads within a single bank
  • JEDEC® JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant for DRAM (DDR4) modules
  • Industry standard 1 MHz, 400 kHz, and 100 kHz
  • SMBus-compatible bus time out
  • Cascadable up to eight devices
  • Reversible software write protection for four individual 128-byte blocks
  • Voltage range: 1.7V to 3.6V
  • Write current: 1.5 mA at 3.6V
  • Read current: 200 μA at 3.6V, 400 kHz
  • Standby current: 1 μA at 3.6V
  • More than one million erase/write cycles
  • Data retention: > 200 years
  • 8-lead PDIP, SOIC, TSSOP, TDFN, and UDFN Packages
  • Industrial (I): -40°C to +85°C
  • Automotive (E): -40°C to +125°C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip Technology Inc. 34AA04 is a 4 Kbit Electrically Erasable PROM which utilizes the I2C serial interface and is capable of operation across a broad voltage range (1.7V to 3.6V). This device is JEDEC JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant and is designed to be compatible with DDR4 SDRAM modules. The 34AA04 includes reversible software write protection for each of four independent 128 x 8-bit blocks and supports an SMBus compatible bus time out. The device features a page write capability of up to 16 bytes of data. Address pins allow up to eight devices on the same bus. The 34AA04 is available in the 8-lead PDIP, SOIC, TSSOP, TDFN, and UDFN packages.

Additional Features
    • 4 Kbit I2C EEPROM
    • Internally organized as two 256 x 8-bit banks
    • Byte or page writes (up to 16 bytes)
    • Byte or sequential reads within a single bank
    • JEDEC® JC42.4 (EE1004-v) Serial Presence Detect (SPD) compliant for DRAM (DDR4) modules
    • Industry standard 1 MHz, 400 kHz, and 100 kHz
    • SMBus-compatible bus time out
    • Cascadable up to eight devices
    • Reversible software write protection for four individual 128-byte blocks
    • Voltage range: 1.7V to 3.6V
    • Write current: 1.5 mA at 3.6V
    • Read current: 200 μA at 3.6V, 400 kHz
    • Standby current: 1 μA at 3.6V
    • More than one million erase/write cycles
    • Data retention: > 200 years
    • 8-lead PDIP, SOIC, TSSOP, TDFN, and UDFN Packages
    • Industrial (I): -40°C to +85°C
    • Automotive (E): -40°C to +125°C
Parametrics
Name
Value
Density
4K bits (x8)
Op. Volt Range (V)
1.7 to 3.6
Max. Clock Freq.
1 MHz
Page Size (bytes)
16
Write Protect
Quarter Array
Temp Range (°C)
-40°C to +125°C
Endurance
1000000
Data Retention (Years)
200

Documents

Jump to:

Board Design Files

Development Environment

  • Integrated Development Environments
  • Programmers
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164365   PartNo: 34AA04 (8ST)
  • Socket: AC164364   PartNo: 34AA04 (8MN)
  • Socket: AC164364   PartNo: 34AA04 (8MNY)
  • Socket: AC164344   PartNo: 34AA04 (8P)
  • Socket: AC164344   PartNo: 34AA04 (8SN)
Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
4K bits (x8)
1 MHz
PDIP-8, SOIC-8, TDFN-8, TSSOP-8, UDFN-8
$0.21

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
34AA04T-E/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
34AA04T-I/MNY
0.014300
0.248485
8
TDFN
2x3x0.8mm
NiPdAu
e4
34AA04T-E/MUY
0.007900
0.139394
8
UDFN
2x3x0.5mm
NiPdAu
e4
34AA04T-I/MUY
0.007900
0.139394
8
UDFN
2x3x0.5mm
NiPdAu
e4
34AA04-E/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
34AA04T-E/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
34AA04T-I/ST
0.033000
0.215600
8
TSSOP
4.4mm
Matte Tin
e3
34AA04-I/ST
0.033000
0.090000
8
TSSOP
4.4mm
Matte Tin
e3
34AA04-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
34AA04-I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
34AA04T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
34AA04T-I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
34AA04-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
34AA04-I/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
