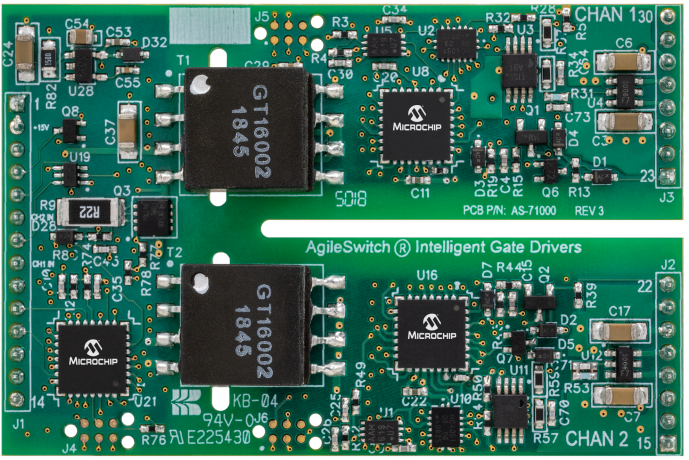

product primary image

AgileSwitch® High Performance SiC Gate Driver Core

2ASC

AgileSwitch® High Performance SiC Gate Driver

Status: In Production

Features:

  • Intelligent Configuration Tool (ICT) Compatible
  • Software Configurable +/- Vgs Gate Voltages
  • Patented Augmented Switching tm
  • Patented Robust Short Circuit Protection
  • Advanced Monitoring & Fault Reporting
  • High Temperature Operation
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

AgileSwitch® High Performance SiC Gate Driver Core

The High Performance SiC Gate Driver Core is a 2-Channel Gate Driver Core for 1.2kV and 1.7kV SiC modules. These Gate Driver Cores feature Augmented Switching™ control, robust short circuit protection,  and are fully software configurable, including +/- Vgs Gate Voltages.

Optimized for Electric Vehicles, Auxiliary Power Unit, Charging, Storage and Inverter applications, these Gate Driver Cores are UL compliant for up to 1.2kV and 1.7kV rated modules (and below), can switch up to 150 kHZ and provide up to 7 unique fault and monitoring conditions, including Temperature and High Voltage Monitoring.

These Cores can be mated to Module Adapter Boards for immediate evaluation of Module and Gate Driver, and are production qualified to enable rapid time to market.

For more information please contact us at: info@AgileSwitch.com

Additional Features
  • Intelligent Configuration Tool (ICT) Compatible
  • Software Configurable +/- Vgs Gate Voltages
  • Patented Augmented Switching tm
  • Patented Robust Short Circuit Protection
  • Advanced Monitoring & Fault Reporting
  • High Temperature Operation
  • 15 Software Configurable Features
  • Programmable +/- Vgs Gate Voltages
  • DC/DC Converter
  • Temperature & DC Link Monitors
  • Up to 150 kHz switching
  • Up to 7 unique faults
Parametrics
Name
Value
Software Configurable
Yes
Usable Device Voltage(V)
1200-1700
Output Current(A)
10
Short-Circuit Protection
Yes
Short-Circuit Response Time
<2µs
Integrated DC-DC Converter
Yes

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Software Configurable
Usable Device Voltage
Yes
1200-1700
Yes
1200-1700
No
1200-1700

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
2ASC-12A1HP
0.014000
0.479000
N/A
N/A
6.1x4.0x1.2 cm
N/A
N/A
2ASC-17A1HP
0.014000
0.479000
N/A
N/A
6.5x4.4x1.2 cm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
