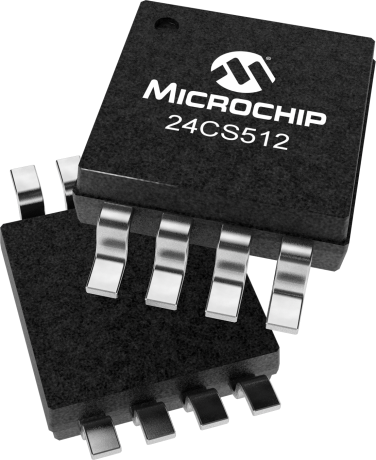

product primary image

512Kbit 3.4MHz I2C Serial EEPROM with Error Correction

512Kb I2C compatible 2-wire Serial EEPROM with 1MHz clock compatibility

Status: Future Product

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The Microchip Technology Inc. 24CS512 is a 512Kb (64K x 8) I2C Serial Electrically Erasable PROM (EEPROM), capable of speeds up to 3.4Mhz and operation across a broad voltage range (1.7V to 5.5V). This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4 Mbit address space. This device is available in PDIP-8, SOIC-8, SOIJ-8, UDFN-8, SOT-23-5, TSSOP-8, MSOP-8 and WLCSP-8 packages.

For product comparison, please consider: 24FC512

Additional Features
  • 64K x 8 (512 Kbit)
  • 2-Wire Serial Interface, I2C™ Compatible
  • 3.4MHz High Speed Mode Capable
  • Operating voltage 1.7V to 5.5V
  • Pre-programmed 128-bit serial number
  • User-programmable, lockable 128-byte ID page
  • Enhanced Software Write Protection
  • Hardware Write-Protect Pin
  • Built-in Error Correction Code (ECC) Logic
  • Page Write Time 5 ms Max.
  • Standby current 1 uA, max.
  • Cascadable up to Eight Devices
  • Pb-Free and RoHS Compliant
  • Factory Programming Available
Parametrics
Name
Value
Density
512K bits (x8)
Op. Volt Range (V)
1.7 to 5.5
Max. Clock Freq.
3.4 MHz
Page Size (bytes)
128
Write Protect
Full Array
Temp Range (°C)
-40°C to +125°C
Endurance
1,000,000
Data Retention (Years)
200

Documents

Jump to:

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Serial EEPROM PIM PICtail Pack
Serial EEPROM PIM PICtail Pack ( AC243003 )

The Serial EEPROM PIM PICtail™ Modules are a series of boards designed around Microchip Serial EEPROM devices. The boards are designed to interface with the PICtail Plus connector as well as the MPLAB® Starter Kit for Serial Memory Products and the PICkit™ 2, allowing you to get started right out of the box.

Learn More
Add To Cart
MPLAB Starter Kit for Memory Products
MPLAB Starter Kit for Memory Products ( DV243003 )

Designers of Serial EEPROM applications can enjoy the increased productivity, reduced time to market and rock-solid design that only a well thought out development system can provide. Microchip's MPLAB® Starter Kit for Serial Memory Products includes everything necessary to quickly develop a robust and reliable Serial EEPROM design, and greatly reduces the time required for system

...

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
512K
400 kHz
CSP-8, DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
400 kHz
PDIP-8, SOIJ-8
$2.19
512K
3.4 MHz


512K
1 MHz
DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
1 MHz
PDIP-8, SOIJ-8
$2.22
512K
400 kHz
DFN-S-8, PDIP-8, SOIC-8, SOIJ-8, TSSOP-14, TSSOP-8
$0.99
512K
400 kHz
PDIP-8, SOIJ-8
$2.19
