The Microchip Technology Inc. 23A1024/23LC1024 are 1 Mbit Serial SRAM devices. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Additionally, SDI (Serial Dual Interface) and SQI (Serial Quad Interface) is supported if your application needs faster data rates. This device also supports unlimited reads and writes to the memory array.

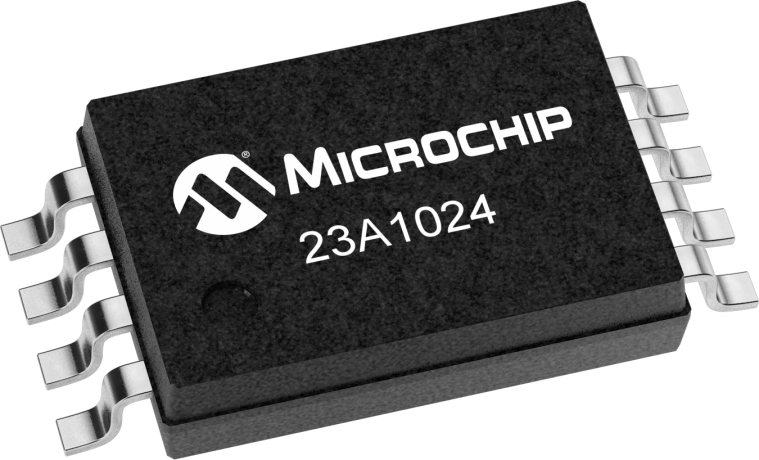

The 23A1024/23LC1024 is available in standard packages including 8-lead SOIC, PDIP and 8-lead TSSOP.
SPI-Compatible Bus Interface:- 20 MHz Clock rate- SPI/SDI/SQI mode
Low-Power CMOS Technology:
Read Current: 3 mA at 5.5V, 20 MHz
Standby Current: 4 µA at +85°C
Unlimited Read and Write Cycles
Zero Write Time
128K x 8-bit Organization:- 32-byte page
Byte, Page and Sequential mode for Reads andWrites
