Ideal for a variety of automotive applications such as Advanced Driver Assistance Systems (ADAS), Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) powertrains, in-vehicle networking and infotainment, devices in our large portfolio of automotive-grade EEPROMs are AEC-Q100 qualified and ISO/TS16949 compliant to meet the rigorous quality, reliability and long product lifecycle requirements of automotive designers.

For design flexibility, we offer EEPROMs with densities ranging from 128 bits up to 1 Mbit that support industry-standard buses including two-wire I2C, three-wire Microwire, four-wire Serial Peripheral Interface (SPI), and our proprietary one-wire UNI/O® bus. These devices also feature operating voltages ranging from 1.7V up to 5.5V and operating temperatures ranging from −40°C to 150°C.

Why use Microchip’s serial EEPROMs?

I2C Serial EEPROM

  • 128 bit to 1 Mbit densities
  • Single supply with operation down to 1.7V
  • 100 kHz, 400 kHz, and 1 MHz compatibility
  • More than one million erase/write cycles
  • Data retention > 200 years
  • 8-lead SOIC, 8-lead TSSOP, 8-lead 2 × 3 mm UDFN, 8-lead MSOP and 5-lead SOT-23 packages
  • −40°C to 125°C temperature range

SPI Serial EEPROM

  • 1 Kbit to 1 Mbit densities
  • SPI- compatible modes 0 and 3
  • Up to 20 MHz clock frequency
  • More than one million erase/write cycles
  • Data retention > 200 years
  • 8-lead SOIC, 8-lead TSSOP, 8-lead 2 × 3 mm DFN, 8-lead MSOP and 5-lead SOT-23 packages
  • −40°C to 150°C  temperature range

UNI/O Bus Serial EEPROM

  • Innovative 1-wire I/O interface
  • 1 Kbit to 16 Kbit densities
  • Combined clock and data
  • 100 kHz clock frequency
  • Software write protect
  • More than one million erase/write cycles
  • Data retention > 200 years
  • 8-lead SOIC, 3-lead SOT-23, 3-lead TO-92, 8-lead TDFN and 8-lead MSOP packages
  • −40°C to 125°C temperature range

Pre-Programmed MAC Address and Unique ID EEPROMs


Do you need a MAC address but don’t want to buy in bulk? Or do you need a generic unique ID for your application? We make serialization easy with our pre-programmed EEPROMs that are available with IEEE EUI-48™ and EUI-64™ addresses or unique 32-bit and 128-bit Microchip-defined serial numbers.

Memory Products

View All Parametrics
Product Density (Organization) Voltage Range ORGPin Temperature Range Automotive Qualified
93AA76A 8K bits (x8) 1.8 - 5.5 No -40°C to +125°C Yes
93AA76B 8K bits (x8) 1.8 - 5.5 No -40°C to +125°C Yes
93AA76C 8K bits (x8) 1.8 - 5.5 Yes -40°C to +125°C Yes
93C46A 1K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C46B 1K bits (x16) 4.5 - 5.5 No -40°C to +125°C Yes
93C46C 1K bits (x8 or x16) 4.5 - 5.5 Yes -40°C to +125°C Yes
93C56A 2K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C56B 2K bits (x16) 4.5 - 5.5 No -40°C to +125°C Yes
93C56C 2K bits (x8) 4.5 - 5.5 Yes -40°C to +125°C Yes
93C66A 4K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C66B 4K bits (x16) 4.5 - 5.5 No -40°C to +125°C Yes
93C66C 4K bits (x8 or x16) 4.5 - 5.5 Yes -40°C to +125°C Yes
93C76A 8K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C76B 8K Bits (X8) 4.5 - 5.5 No -40°C to +125°C Yes
93C76C 8K Bits(x8) 4.5 - 5.5 Yes -40°C to +125°C Yes
93C86A 16K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C86B 16K bits (x8) 4.5 - 5.5 No -40°C to +125°C Yes
93C86C 16K bits (x8) 4.5 - 5.5 Yes -40°C to +125°C Yes
93LC46A 1K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC46B 1K bits (x16) 2.5 - 5.5 No -40°C to +125°C Yes
93LC46C 1K bits (x8 or x16) 2.5 - 5.5 Yes -40°C to +125°C Yes
93LC56A 2K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC56B 2K bits (x16) 2.5 - 5.5 No -40°C to +125°C Yes
93LC56C 2K bits (x8 or x16) 2.5 - 5.5 Yes -40°C to +125°C Yes
93LC66A 4K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC66B 4K bits (x16) 2.5 - 5.5 No -40°C to +125°C Yes
93LC66C 4K bits (x8 or x16) 2.5 - 5.5 Yes -40°C to +125°C Yes
93LC76A 8K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC76B 8K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC76C 8K bits (x8) 2.5 - 5.5 Yes -40°C to +125°C Yes
93LC86A 16K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC86B 16K bits (x8) 2.5 - 5.5 No -40°C to +125°C Yes
93LC86C 16K bits (x8 or x16) 2.5 - 5.5 Yes -40°C to +125°C Yes
AT93C46D 1K bits (x8 or x16) 1.8 - 5.5 Yes -40°C to +125°C Yes
AT93C56B 2K bits (x8 or x16) 1.7 - 5.5 Yes -40°C to +125°C Yes
AT93C66B 4K bits (x8 or x16) 1.7 - 5.5 Yes -40°C to +125°C Yes
AT93C86A 16K bits (x8 or x16) 1.8 - 5.5 Yes -40°C to +125°C Yes
View All Parametrics
Product Density (Organization) Voltage Range Page Size (bytes) Max. Clock Freq. Temperature Range Automotive Qualified
24AA00 128 bits (x8) 1.8 - 5.5 0 400 kHz -40°C to +85°C Yes
24AA01 1K bits (x8) 1.7 - 5.5 8 400 kHz -40°C to +85°C Yes
24AA02 2K bits (x8) 1.7 - 5.5 8 400 kHz -40°C to +85°C Yes
24AA04 4K bits (x8) 1.7 - 5.5 16 400 kHz -40°C to +85°C Yes
24AA08 8K bits (x8) 1.7 - 5.5 16 400 kHz -40°C to +85°C Yes
24AA1025 1024K bit (x8) 1.7 - 5.5 128 400 kHz -40°C to +85°C Yes
24AA128 128K bits (x8) 1.7 - 5.5 64 400 kHz -40°C to +85°C Yes
24AA16 16K bits (x8) 1.7 - 5.5 16 400 kHz -40°C to +125°C Yes
24AA256 256K bits (x8) 1.7 - 5.5 64 400 kHz -40°C to +125°C Yes
24AA32A 32K bits (x8) 1.7 - 5.5 32 400 kHz -40°C to +85°C Yes
24AA512 512K bits (x8) 1.7 - 5.5 128 400 kHz -40°C to +85°C Yes
24AA64 64K bits (x8) 1.7 - 5.5 32 400 kHz -40°C to +125°C Yes
24C00 128 bits (x8) 4.5 - 5.5 0 400 kHz -40°C to +125°C Yes
24C01C 1K bits (x8) 4.5 - 5.5 16 400 kHz -40°C to +125°C Yes
24C02C 2K bits (x8) 4.5 - 5.5 16 400 kHz -40°C to +125°C Yes
24FC01 1K bits (x8) 1.7 - 5.5 8 1 MHz -40°C to +125°C Yes
24FC02 2K bits (x8) 1.7 - 5.5 8 1 MHz -40°C to +125°C Yes
24FC04 4K bits (x8) 1.7 - 5.5 16 1 MHz -40°C to +125°C Yes
24FC1025 1024K bit (x8) 1.8 - 5.5 128 1 MHz -40°C to +85°C Yes
24FC256 256K bits (x8) 1.7 - 5.5 64 1 MHz -40°C to +85°C Yes
24LC00 128 bits (x8) 2.5 - 5.5 0 400 kHz -40°C to +85°C Yes
24LC014 1K bits (x8) 2.5 - 5.5 16 400 kHz -40°C to +85°C Yes
24LC01B 1K bits (x8) 2.5 - 5.5 8 400 kHz -40°C to +125°C Yes
24LC02B 2K bits (x8) 2.5 - 5.5 8 400 kHz -40°C to +125°C Yes
24LC04B 4K bits (x8) 2.5 - 5.5 16 400 kHz -40°C to +125°C Yes
24LC08B 8K bits (x8) 2.5 - 5.5 16 400 kHz -40°C to +125°C Yes
24LC1025 1024K bits (x8) 2.5 - 5.5 128 400 kHz -40°C to +125°C Yes
24LC128 128K bits (x8) 2.5 - 5.5 64 400 kHz -40°C to +125°C Yes
24LC16B 16K bits (x8) 2.5 - 5.5 16 400 kHz -40°C to +125°C Yes
24LC256 256K bits (x8) 2.5 - 5.5 64 400 kHz -40°C to +125°C Yes
24LC32A 32K bits (x8) 2.5 - 5.5 32 400 kHz -40°C to +125°C Yes
24LC512 512K bits (x8) 2.5 - 5.5 128 400 kHz -40°C to +125°C Yes
24LC64 64K bits (x8) 2.5 - 5.5 32 400 kHz -40°C to +125°C Yes
24LC64F 64K bits (x8) 2.5 - 5.5 32 400 kHz -40°C to +125°C Yes
AT24C01C 1K bits 1.7 - 5.5 8 1 MHz -40°C to +125°C Yes
AT24C02C 2K bits 1.7 - 5.5 8 1 MHz -40°C to +125°C Yes
AT24C04C 4K bits 1.7 - 5.5 16 1 MHz -40°C to +125°C Yes
AT24C08C 8K bits 1.7 - 5.5 16 1 MHz -40°C to +125°C Yes
AT24C128C 128K bits 1.7 - 5.5 64 1 MHz -40°C to +125°C Yes
AT24C16C 16K bits 1.7 - 5.5 16 1 MHz -40°C to +125°C Yes
AT24C256C 256K bits 1.7 - 5.5 64 1 MHz -40°C to +125°C Yes
AT24C32D 32K bits 1.7 - 5.5 32 1 MHz -40°C to +125°C Yes
AT24C64B 64K bits 1.8 - 5.5 32 400 kHz -40°C to +125°C Yes
AT24C64D 64K bits 1.7 - 5.5 32 1 MHz -40°C to +125°C Yes
AT24HC04B 4K bits 1.8 - 5.5 16 1 MHz -40°C to +125°C Yes
View All Parametrics
Product Density (Organization) Voltage Range Max. Clock Freq. Endurance Temperature Range Automotive Qualified
25AA020A 2 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +85°C Yes
25AA080C 8 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +85°C Yes
25AA128 128 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +85°C Yes
25AA160C 16 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +85°C Yes
25AA160D 16 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +125°C Yes
25AA256 256 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +125°C Yes
25AA512 512 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +85°C Yes
25AA640A 64 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +125°C Yes
25LC010A 1 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC020A 2 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC040A 4K bits 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC080C 8 Kbit 1.8 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC080D 8 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC1024 1024 Kbit 2.5 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
25LC128 128 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC160C 16 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC160D 16 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC256 256 Kbit 2.5 - 5.5 10 MHz 1,000,000 -55°C to +125°C Yes
25LC320A 32 Kbit 2.5 - 5.5 10 MHz 1,000,000 -40°C to +150°C Yes
25LC512 512 Kbit 2.5 - 5.5 20 MHz 1,000,000 -55°C to +125°C Yes
25LC640A 64 Kbit 2.5 - 5.5 10 MHz 1,000,000 -55°C to +125°C Yes
AT25010B 1 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25020B 2 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25040B 4K bits 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25080B 8 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25128B 128 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25160B 16 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25256B 256 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25320B 32 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
AT25640B 64 Kbit 1.8 - 5.5 20 MHz 1,000,000 -40°C to +125°C Yes
View All Parametrics
Product Density (Organization) Voltage Range Page Size (bytes) Cascade Temperature Range Automotive Qualified
11AA010 1K bit (x8) 1.8 - 5.5 16 0 -40°C to +85°C Yes
11AA020 2K bit (x8) 1.8 - 5.5 16 0 -40°C to +85°C Yes
11AA040 4K bit (x8) 1.8 - 5.5 16 0 -40°C to +85°C Yes
11AA080 8K bit (x8) 1.8 - 5.5 16 0 -40°C to +85°C Yes
11AA160 16K bit (x8) 1.8 - 5.5 16 0 -40°C to +85°C Yes
11AA161 16K bit (x8) 1.8 - 5.5 16 2 -40°C to +85°C Yes
11LC010 1K bit (x8) 2.5 - 5.5 16 0 -40°C to +125°C Yes
11LC020 2K bit (x8) 2.5 - 5.5 16 0 -40°C to +125°C Yes
11LC040 4K bit (x8) 2.5 - 5.5 16 0 -40°C to +125°C Yes
11LC080 8K bit (x8) 2.5 - 5.5 16 0 -40°C to +125°C Yes
11LC160 16K bit (x8) 2.5 - 5.5 16 0 -40°C to +125°C Yes
11LC161 16K bit (x8) 2.5 - 5.5 16 2 -40°C to +125°C Yes

Development Tools

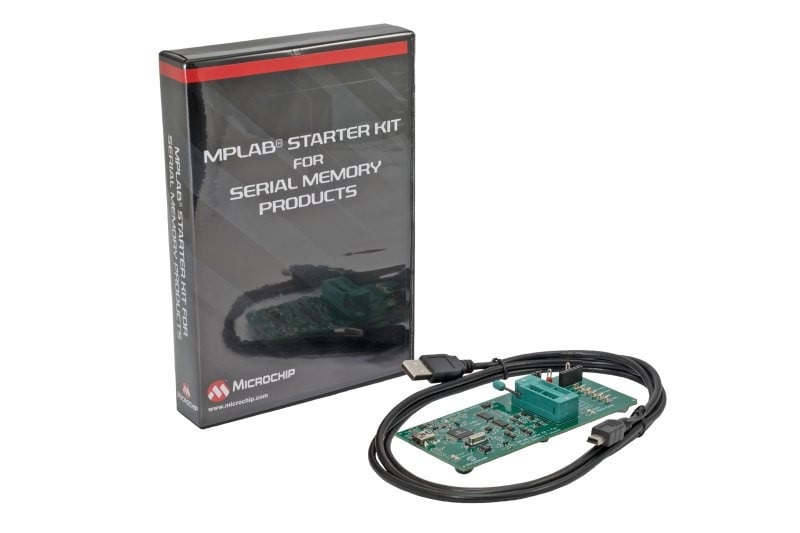

MPLAB® Starter Kit for Serial Memory Products

Part Number: DV243003
Reduce time to market and create a rock-solid design using the MPLAB Starter Kit for Serial Memory Products. It includes everything necessary to quickly develop a robust and reliable serial EEPROM design and greatly reduces the time required for system integration and hardware/software fine tuning.
