Two-Wheeler Touch Solutions

Robust Touchscreen Solutions for Two-Wheelers

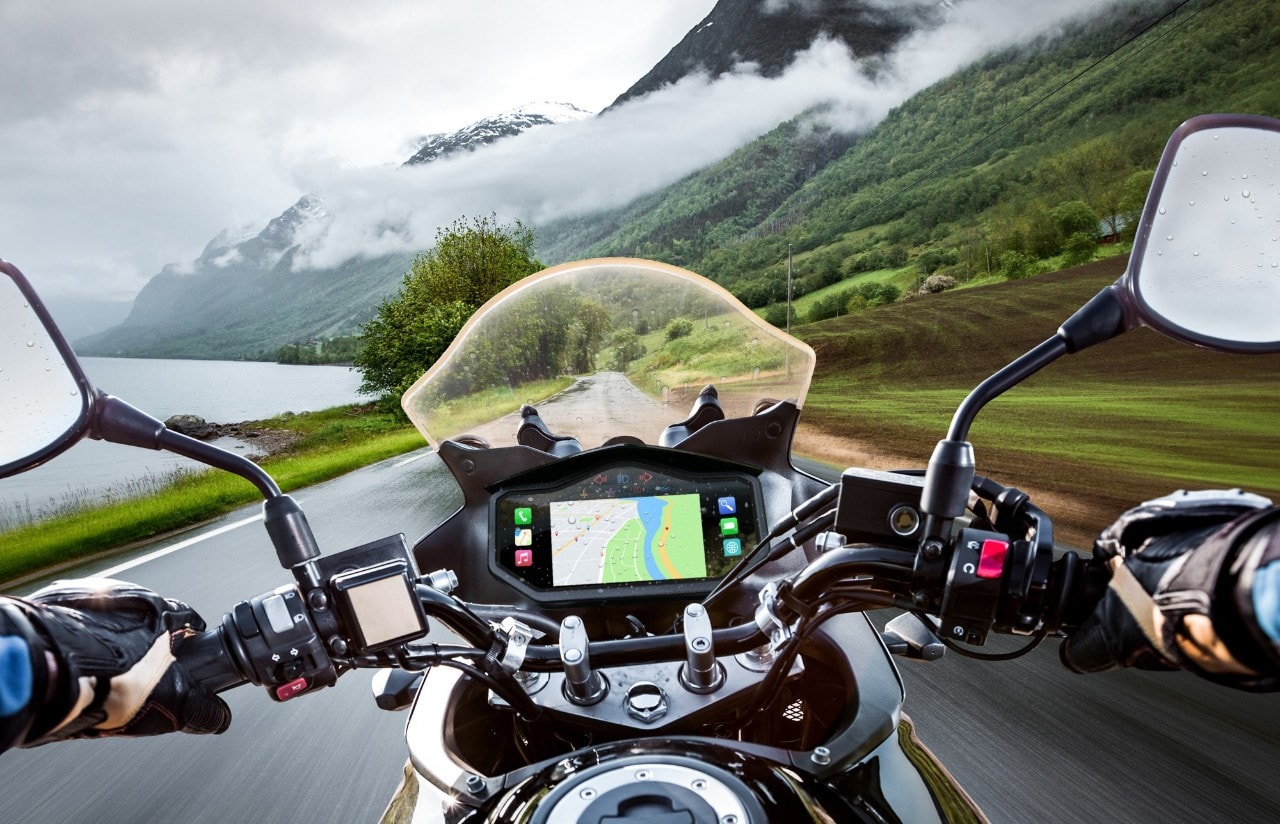

Adding a touchscreen as a user interface on two-wheelers like E-bikes, motorcycles and scooters has become a popular feature. Because two-wheelers are used outdoors, they are exposed to a variety of harsh outdoor conditions including rain, snow, dust, exposure to sunlight and vandalism.

Key features of our two-wheeler touch solutions include:

  • Support for screen sizes of up to 13 inches
  • Cover glass thickness of up to 10 mm
  • Multi-finger support, even with thick gloves
  • Moisture immunity against water drops, moving drops or cleaning liquids
  • Encryption and firmware authentication for secure payment (ATMXT1296M1E only)
  • IEC 61000-4-6, 10 VRMS, Class A conducted noise immunity
  • ASIL-B ready (ATMXT1296M1E only)

E-Motorcycle Instrument Cluster Interactive Block Diagram

Hover and Click for More Information

E-Motorcycle Instrument Cluster Block Diagram

maXTouch® Touchscreen Controllers With Encryption

Product Package Number of X Lines Number of Y Lines Channels Max Number of Nodes (X*Y) Typical Screen Size Max Temp Range
ATMXT1296M1E 2.0 TQFP128
14 mm × 14 mm		 Up to 48 Up to 60 72 1296 14 inches −40°C to 105°C
ATMXT1067TD 2.0 TQFP128
14 mm × 14 mm		 Up to 41 Up to 26 67 1066 10 inches −40°C to 105°C
ATMXT641TD 1.0 TQFP100
14 mm × 14 mm		 Up to 32 Up to 20 52 640 9 inches −40°C to 105°C
ATMXT449TD 1.0 TQFP100
14 mm × 14 mm		 Up to 32 Up to 20 52 448 8 inches −40°C to 105°C
ATMXT288UD 2.0 VQFN56
7 mm × 7 mm		 Up to 12 Up to 24 36 288 6 inches −40°C to 105°C
