SAMA5D3 Series

View All Parametrics

When Performance Meets Power Efficiency

Operating at 850 DMIPS at under 150 mW, the SAMA5D3 microprocessor (MPU) is an excellent solution for any high-performance, low-power and cost-sensitive industrial application. Think of it for control panels, smart grid devices and bar code scanners—anything that needs high levels of connectivity, enhanced user interfaces, robust security or is battery powered. The SAMA5D3 is also a great fit for wearable computing and mobile applications where low power and a small footprint are critical. The SAMA5D3 series includes devices supporting a −40 to 105°C temperature range and options available in a 12 × 12 mm 324 BGA package (in 0.5 mm pitch).

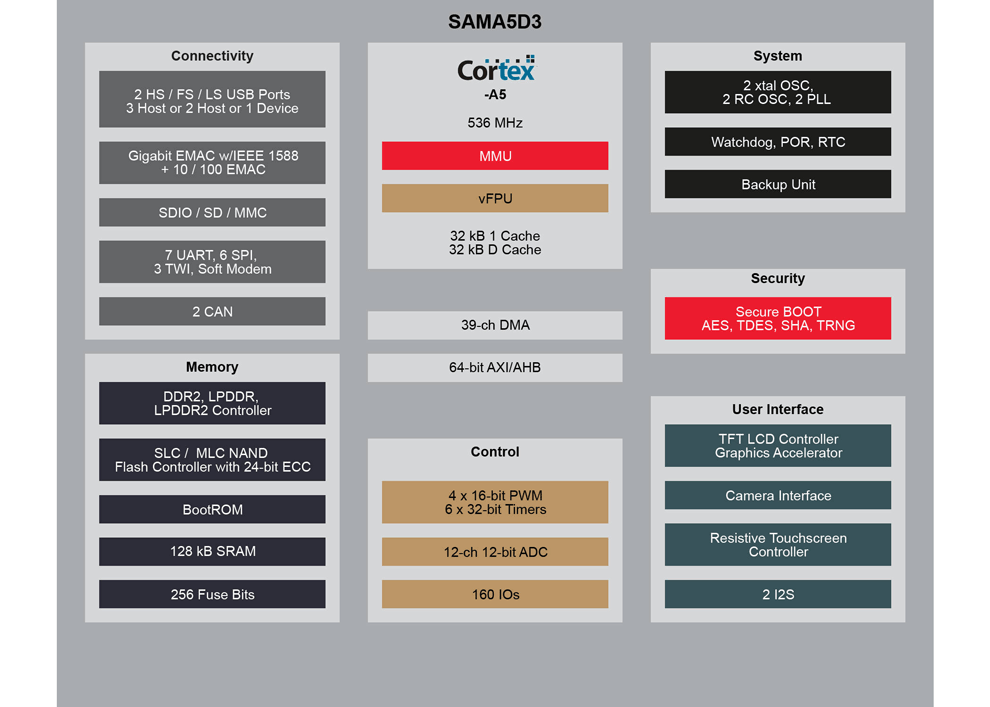

SAMA5D3 Series Overview

Features SAMA5D31 SAMA5D33 SAMA5D34 SAMA5D35 SAMA5D36
Core

CA5, 536 MHZ



CA5, 536 MHZ



CA5, 536 MHZ



CA5, 536 MHZ



CA5, 536 MHZ


LCD Controller Yes Yes Yes - Yes
Camera Interface Yes Yes Yes Yes Yes
(LP)DDR/DDR2

16/32-bit



 16/32-bit 16/32-bit 16/32-bit 16/32-bit
GMAC - Yes Yes Yes Yes

10/100 EMAC



 Yes - - Yes Yes
CAN - - 2 2 2

SD/eMMC



 Yes - Yes Yes Yes

Getting Started

Linux® OS

Explore our mainline Linux distribution, which powers our MPUs and hybrid MCUs, and leverage a vast open-source ecosystem to help you create high-quality solutions.

Learn More
MPLAB Harmony Graphic

MPLAB® Harmony v3

MPLAB Harmony v3 is a fully integrated embedded software development framework that provides flexible and interoperable software modules to simplify the development of value-added features and reduce your product’s time to market.

Learn More

Microchip University Online Learning

Soldering a PCB Board

MPU System and PCB Design Pitfalls and Solutions

This couse covers general system design topics such as hardware design, core, peripherals, bootloaders, clocking and timing, signal integrity and PCB design.

Register for Course
Linux

Building Your Linux Development System

This course leads you through the steps of setting up a Linux® development computer, interfacing to sensors, creating graphics and building your own software distribution.

Register for Course

Solutions

Microchip Graphics Suite Image

Graphics

Differentiate your products with our aesthetically pleasing and feature-rich embedded Graphical User Interfaces (GUIs) that offer intuitive menus, vivid graphics and easy device interaction

Learn More
Automotive Interior Concept Image

Automotive

Our 32-bit MPU-based solutions meet the demands of modern in-car systems, including control panels, gateways, telematics and audio applications. These MPUs are AEC-Q100 Grade 2 qualified and supported by our client-driven obsolescence policy to enable long-term availability and reliability.

Learn More
Industrial Automation Concept Image

Industrial Automation Communications

Accelerate your industrial automation design with robust, real-time Industrial communication stacks that are seamlessly supported on our MPUs.

Learn More

Design Help

Need Help Choosing a Product for Your Design?

Our Client Support team is here to support you. Use the link below to schedule a call with a member of our team, use our live chat widget in the bottom right corner or submit a question for assistance and we will follow up with you as soon as possible.











MPU Design Partners

We partner with design consultants to assist with your MPU-based designs. Learn more about how our design partners can accelerate your time to market.
