6300 Series Modular Signal Switching and Distribution System

Unlock the Power of Modular Distribution

Our intelligent 6300 series modular signal switching and distribution system provides ultra-low phase noise performance for demanding ground station, metrology and national time scale applications. The 6300 series’ modular and flexible distribution architecture enables a wide range of signal formats, including low-noise sine waves, Inter-Range Instrumentation Group (IRIG) timecodes and pulse formats. The 6300 series has a variety of plug-in cards that are hot swappable and customizable.

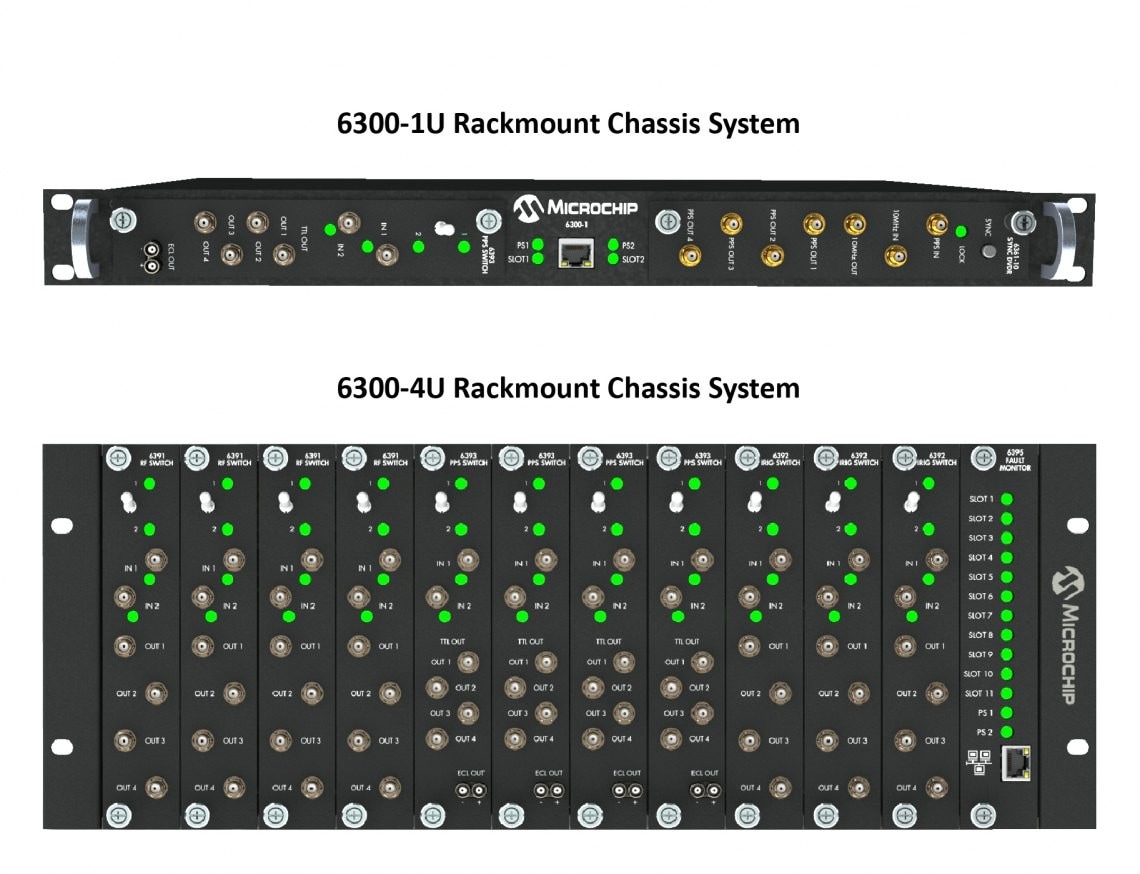

The 6300 series is available in both a 1U and 4U rack-mount chassis. The 1U has two card slots and a built-in management card that provides LED status updates for the card’s input and output ports. The 4U chassis has 11 slots, plus the 6395 fault monitor card slot that displays the status of each card slot on an LED, which indicates a global fault on the card. The 6300’s robust design includes redundant hot-swappable power supplies that can be configured for AC/AC, DC/DC or AC/DC. The unit is accessible remotely from the Ethernet port connection to enable remote monitoring.

6300 Series Rackmount Chassis

Key Features

  • Low additive phase noise
  • High channel isolation
  • Modular design that enables a variety of signal formats
  • LED status indicators for all inputs and outputs
  • Scalable to hundreds of outputs
  • Ethernet interface for management and alarms
  • Redundant AC or DC power or combination of AC and DC
  • Hot-swappable modules and power supplies
  • CE/ROHS compliant

Product Highlights

The 6300 Series’ plug-in cards provide customization and modularity to any signal distribution system. The cards are hot swappable, making it easy to change out a card without pausing the distribution of the other card(s). Signal types on the cards include PPS; IRIG and RF at 1, 5 and 10 MHz. The range of signal types makes the 6300 an excellent choice for a plug-and-play distribution system that can meet a variety of your system requirements.

6300-1

6300-1

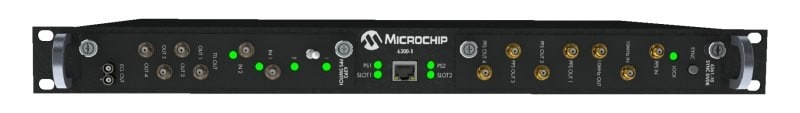

  • 1U form factor
  • Supports two plug-in cards
  • Hot swappable AC/DC power supplies
Download Data Sheet
6300-4

6300-4

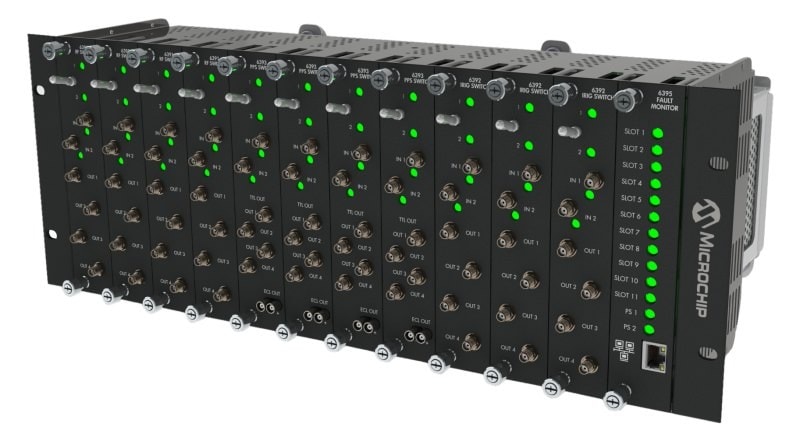

  • 4U form factor
  • Supports 11 plug-in cards
  • Hot swappable AC/DC power supplies
Download Data Sheet
6300 Plug-In Cards

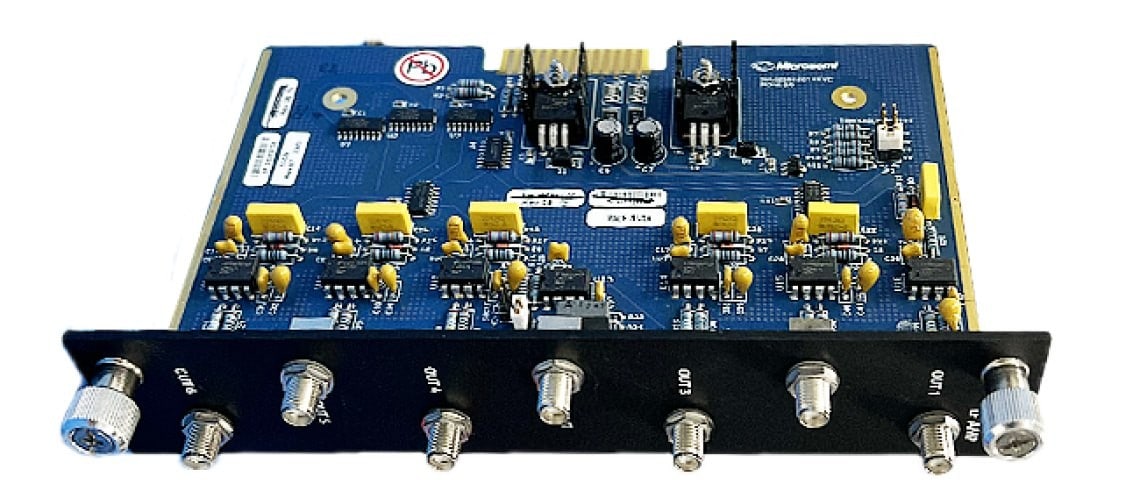

6300 Plug-In Cards

  • Modular design
  • Hot swappable
  • RF, IRIG and PPS signal types
Download Data Sheet

6300 Series Plug-In Cards

Card NumberCard NameConfiguration with 1UConfiguration with 4UInputsOutputsSignal Out
6301Panel Dummy: No Loop BackXXN/AN/AN/A
6302Panel Assembly LoopbackXXN/AN/AN/A
6310BDistribution Module 1 PPS–10 MPPSXX161 PPS–10 MPPS
6312Distribution Module > 1k PPS ECLXX181 PPS
6313Distribution Module TTL-ECL ConverterXX141 PPS ECL
6315Distribution Module 5/10 MHzXX165/10 MHz
63161 MHz to 10 MHz Frequency Multiplier ModuleXX1110 MHz
6320Distribution Module, Pulse, 1 × 6 Differential Out (50Ω in)XX161 PPS–10 MPPS
6321Distribution Module, Pulse, 1 × 6 Differential Out (100Ω in)
XX161 PPS–10 MPPS
6332BDistribution Module TTL 1 PPS to 10 MPPS (5V)XX161 PPS
6340DC Power Supply for 4U Chassis (18–32 VDC, 5A) XN/AN/AN/A
6345AC Power Supply for 4U Chassis (100–240V, ~50/60 Hz, 1 A) XN/AN/AN/A
6350DC Power Supply for 1U Chassis (18–32 VDC, 2A)X N/AN/AN/A
6355AC Power Supply for 1U Chassis (100–240V, ~50/60 Hz, 0.5A)X N/AN/AN/A
6359Distribution Module AM IRIGXX16AM IRIG
6361-1010 MHz Synchronizable DividerXX24Sine Wave, 1 PPS
63912 IN/4 OUT RF Switch ModuleXX245/10 MHz
63922 IN/4 OUT IRIG Switch ModuleXX24AM IRIG
63932 IN/4 OUT PPS Switch ModuleXX241 PPS TTL/ECL
6395Fault Monitor for 4U Chassis XN/AN/AN/A
