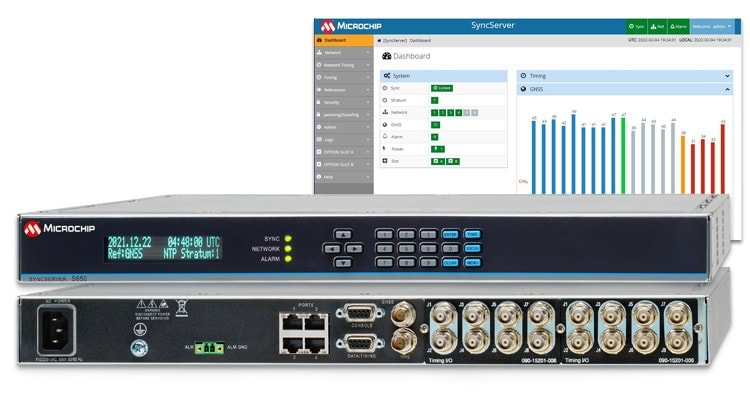

SyncServer® S650 Time and Frequency Instrument
Accurate, Secure and Flexible Time and Frequency
The SyncServer® S650 uses our FlexPort technology to provide unmatched synchronization flexibility and performance. The GNSS-referenced S650 is easily adaptable for modern instrumentation systems and networks that require best-in-class synchronization performance for a wide range of applications.
This modular time server combines the best of time and frequency instrumentation with unique flexibility and powerful network-based and security-hardened features. The timing output flexibility provides easy replication of precise and coherent output signals, eliminating the need for a signal distribution chassis.
Key Features
- < 15 ns RMS to UTC (USNO) through GNSS
- < 1 × 10–12 frequency accuracy
- Modular timing architecture with innovative FlexPort technology
- Popular timing signal inputs/outputs are standard in the base timing I/O module (IRIG B, 10 MHz, 1 PPS)
- Four GbE ports with NTP/PTP hardware timestamping, two additional 10 GbE ports optional
- Secure, hardened, web-based management
- –20°C to 65°C operating temperature, shock and vibration qualified
- Rubidium atomic clock or OCXO oscillator upgrade
- Additional timecode I/O including IRIG A/B/C37/E/G/NASA/2137/XR3/HaveQuick/PTTI available
- T1/E1 telecom I/O available
- Superior 10 MHz low phase noise options
- Galileo/GLONASS/BeiDou/SBAS/QZSS option
- PTP multi-port/profile output option
- S650i model with no GNSS
- DISA/DoDIN approved product
Product Highlights

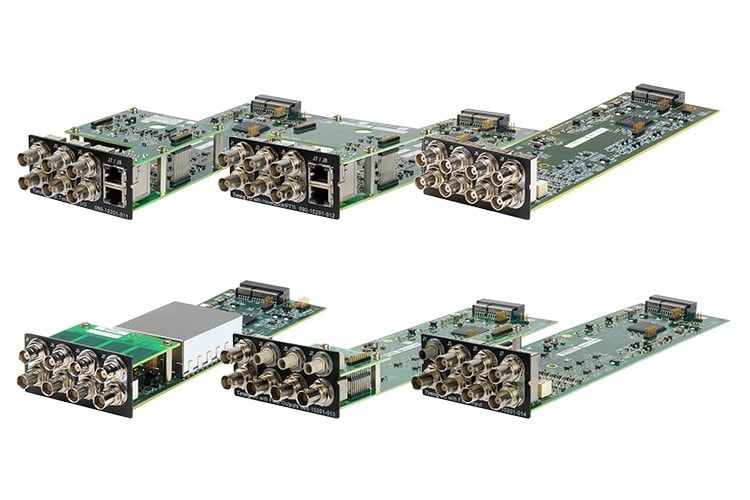

Timing I/O Modules
The timing I/O modules are exceedingly versatile time and frequency input and output options. They support the most popular input and output time codes, sine waves, and rates (IRIG A, IRIG B, IRIG E, IRIG G, 10 MHz, 1 PPS, T1/E1 and more).

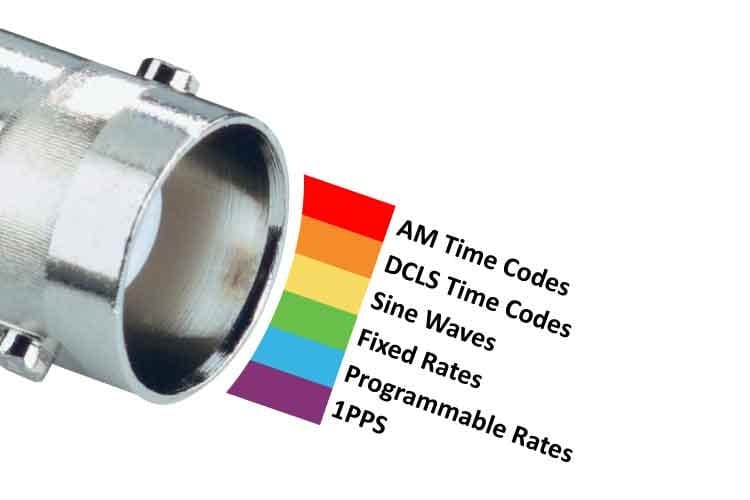

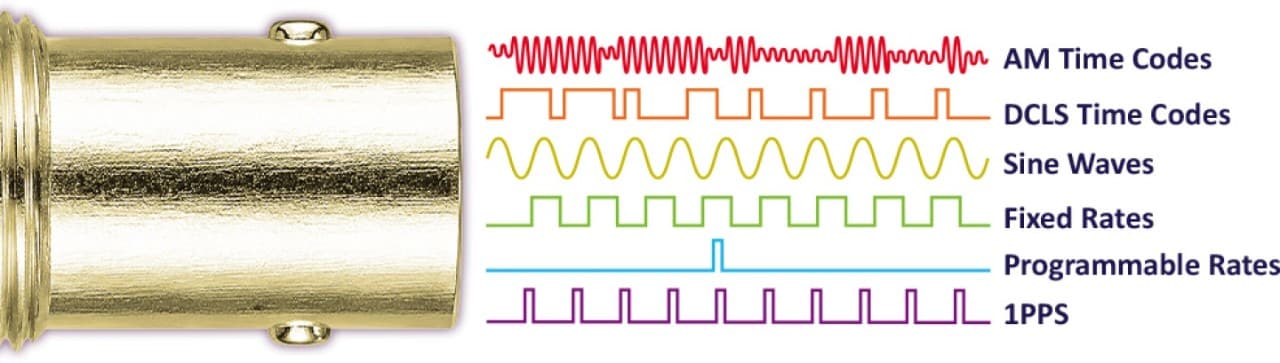

FlexPorts for Any Signal, Any Connector Flexibility
Our FlexPort technology efficiently and cost effectively adds innovative any-signal, any-connector technology to the timing I/O modules, eliminating the wasted space inherent with legacy-style, fixed-signal modules/BNCs.

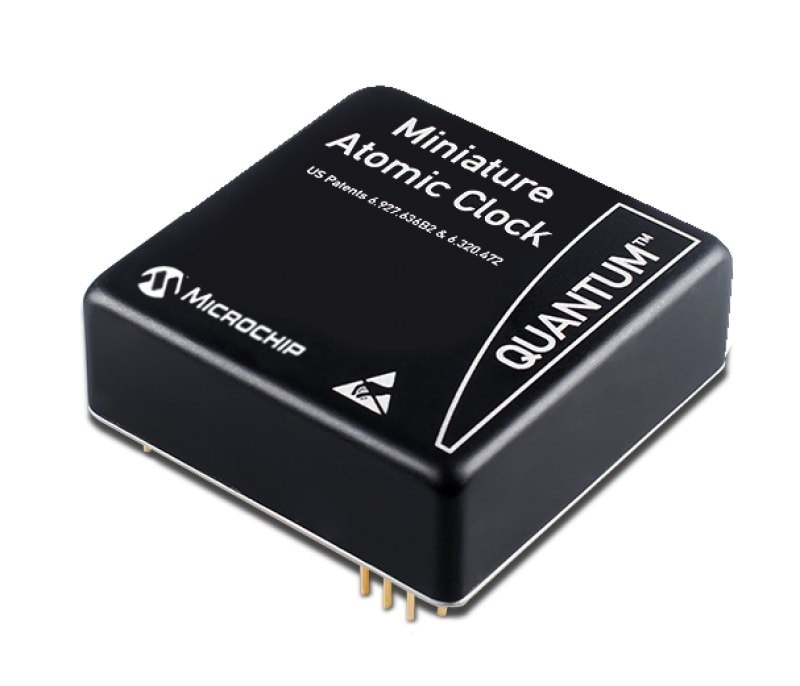

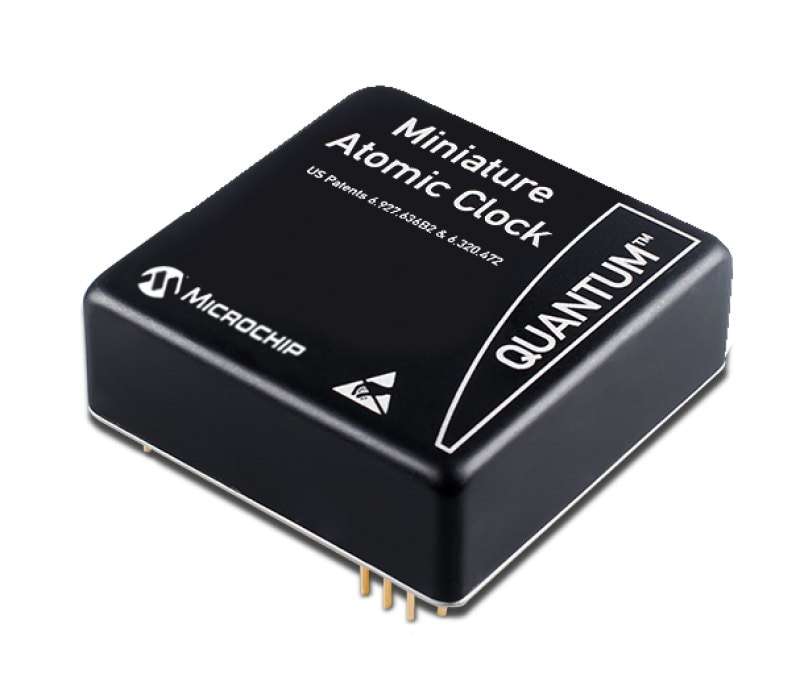

Rubidium Atomic Clock for Holdover
The rubidium atomic clock upgrade improves the stability and ongoing accuracy, as well as the holdover accuracy, of the SyncServer S650 M-Code time server to possibly save the user valuable time. If the GPS signal is lost, which places the unit in holdover, the rubidium atomic clock significantly improves the clock accuracy during the holdover period.
Security Hardening
Some applications require security enhancements above and beyond what might otherwise be acceptable. In addition to supporting the standard network security protocols, the SyncServer S650 M-Code time server can be configured to provide additional timing, operational and authentication security to create the most hardened NTP/PTP server. This makes the S650 M-Code an excellent choice for Zero Trust networks.

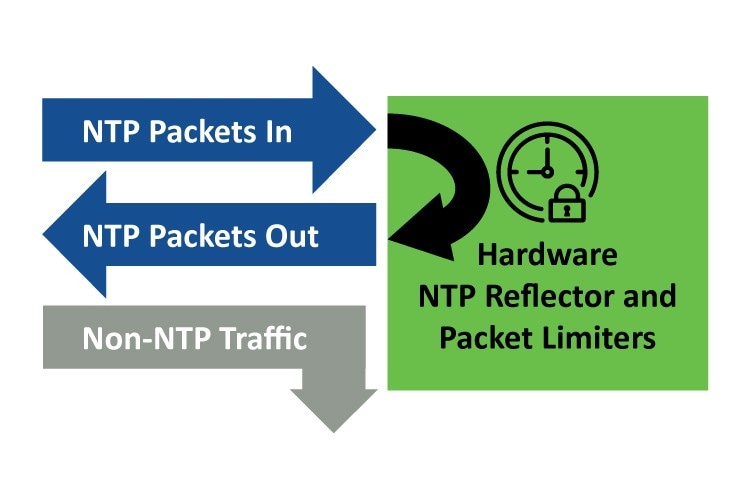

NTP Reflector Security
The SyncServer S650 time server implements real-time, hardware-based network packet processing in tandem with accurate hardware-based NTP timestamping, general packet limiting and alarming. This protects the S650’s CPU from excessive network traffic Denial-of-Service (DoS) attacks and provides extremely high-bandwidth, high-accuracy NTP operations.

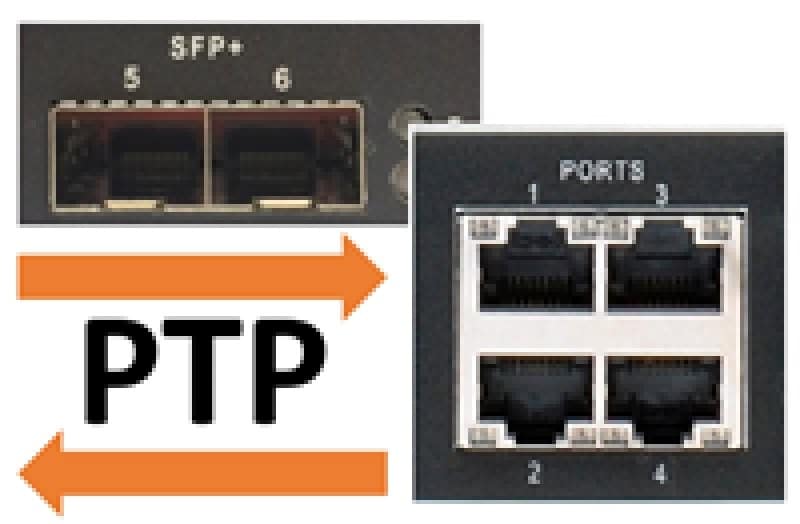

Multi-Port PTP Operations
The IEEE® 1588 PTP output license enables PTP grandmaster operations that leverage the built-in hardware timestamping available in all SyncServer time servers. This single-option license allows the LAN 2, 3 and 4 ports, as well as the optional 10 GbE LAN 5 and 6 ports, to be uniquely configured as PTP grandmasters. This is a very cost-effective solution for scaling PTP grandmaster operations and increasing configuration flexibility. PTP can also be configured as an input time reference.

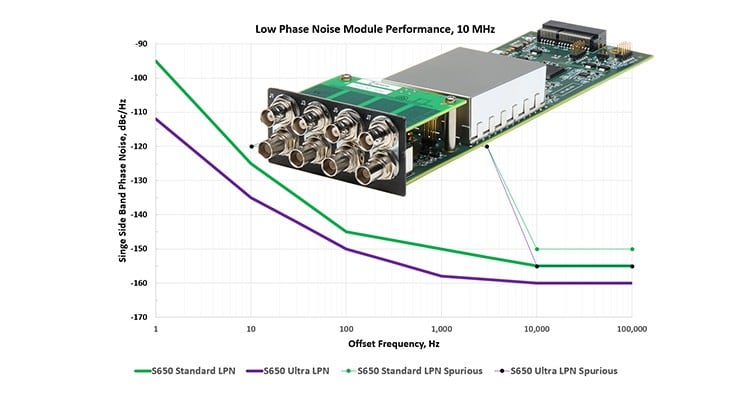

10 MHz, Low-Phase-Noise Signals
Two Low-Phase-Noise (LPN) modules are available for applications requiring superior 10 MHz LPN signals. Each module has eight extremely isolated, phase-coherent, 10 MHz LPN outputs to offer excellent LPN or ultra-LPN performance with low-spurious-noise characteristics.

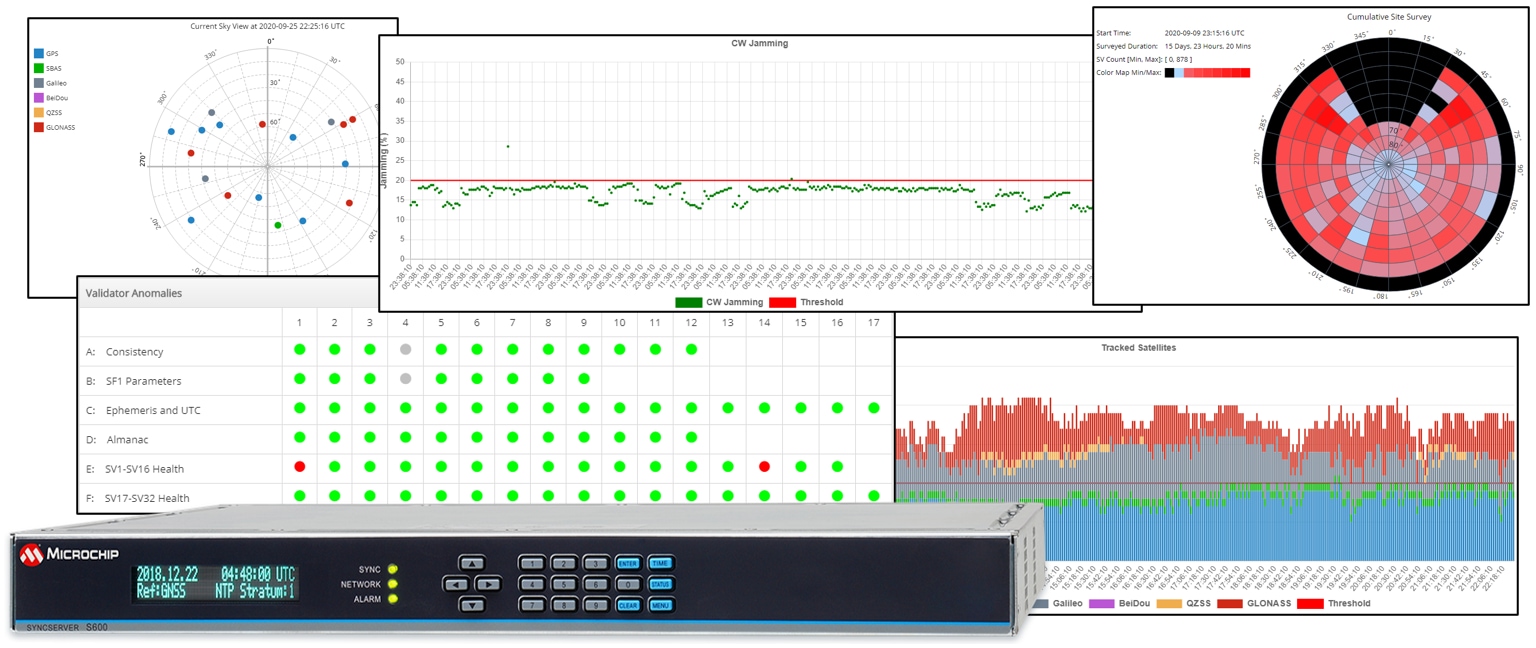

GPS Jamming and Spoofing Detection, Protection, Analysis
The SyncServer S650 time server’s BlueSky® technology option detects GPS jamming- and spoofing-related anomalies in real time to protect essential time and frequency outputs. Alarms are triggered when unexpected changes are detected and trust is compromised. The BlueSky technology detectors respond to protect the integrity of the SyncServer S650’s time and frequency outputs.

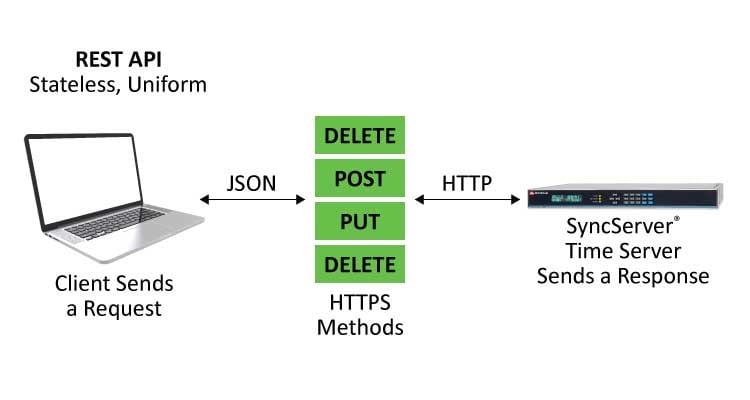

Extensive REST API
The SyncServer S650 time server’s REST API follows the industry-standard OpenAPI specification 3.0 to provide full-featured status and control of the S650. The easy-to-use interface allows users to program their applications to automate configuration tasks, get status information and customize monitoring of specific parameters to meet their unique requirements.
The REST API is included with the SyncServer S650 time server.
Next Steps

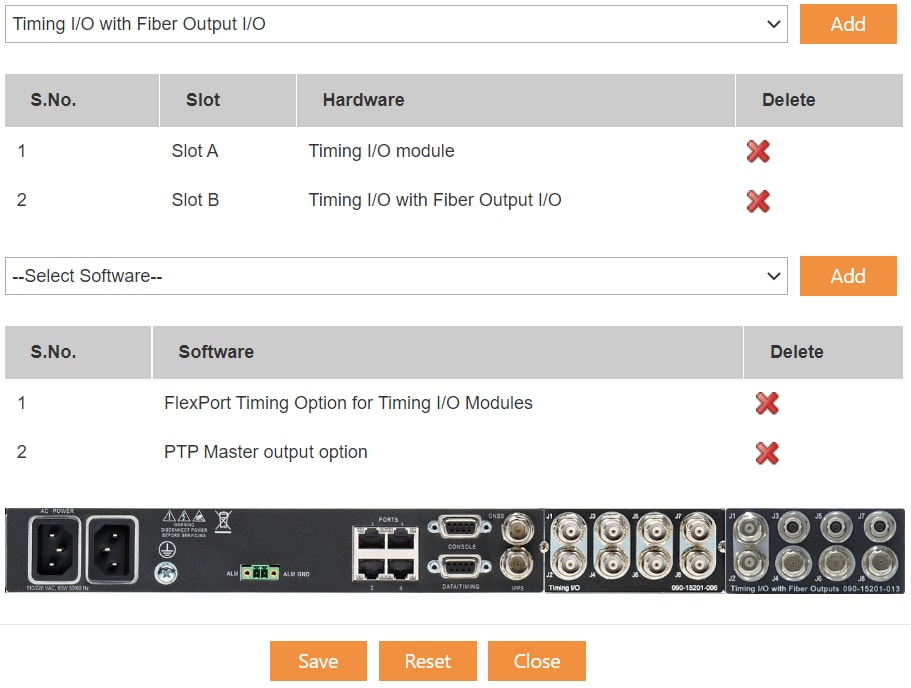

Custom Configure Your SyncServer S650
