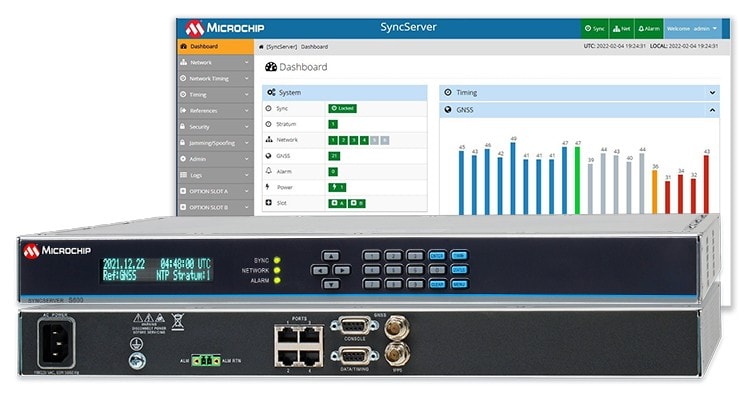

SyncServer® S600 Enterprise NTP/PTP Time Server
Learn About Our SyncServer® S600 Time Server
Modern networks require accurate, secure and reliable time services. The security-hardened SyncServer S600 network time server delivers exact hardware-based Network Time Protocol (NTP) and Precise Time Protocol (PTP) timestamps. In addition to its unparalleled accuracy and security, the S600 offers outstanding and easy-to-use features for reliable network time services to meet the needs of networks and business operations today and into the future.
Key Features
- Ultra-high-bandwidth NTP time server
- Stratum 1 operation
- Four standard GbE ports, all with patented NTP hardware timestamping
- Two additional 10 GbE ports (optional)
- Built-in DoS detection and protection
- Security-hardened NTP Reflector with firewall protection
- Web-based management with high-security cipher suite
- NTP monitoring, charting and MRU logging
- < 15 nanoseconds RMS time accuracy to UTC
- TACACS+, RADIUS, LDAP, x.509, Secure Syslog and more
- Rubidium atomic clock or OCXO oscillator upgrades
- Dual power supply option
- Galileo/GLONASS/BeiDou/SBAS/QZSS option
- IEEE® 1588 PTP multi-port/profile output option
- IEEE 1588 PTP input option
- DISA/DoDIN approved product
Product Highlights
Rubidium Atomic Clock
The rubidium atomic clock upgrade improves the stability and ongoing accuracy, as well as the holdover accuracy, of the SyncServer S600 time server to possibly save the user valuable time. If the GNSS signal is ever lost, which places the unit in holdover, the rubidium atomic clock significantly improves the clock accuracy during the holdover period.

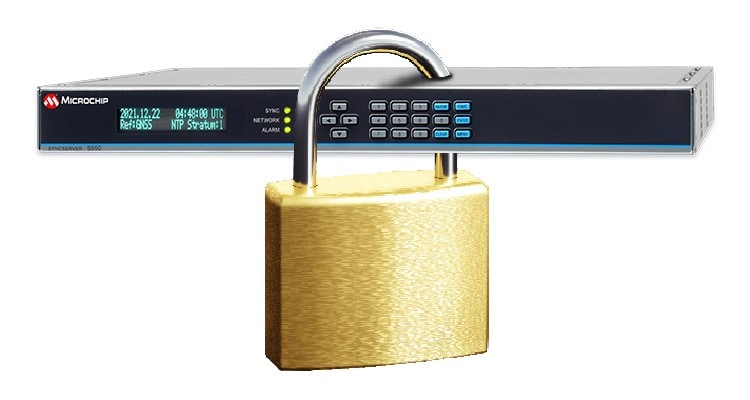

Security Hardening
Some applications require security enhancements above and beyond what might otherwise be acceptable. In addition to supporting the standard network security protocols, the SyncServer S600 time server can be configured to provide additional timing, operational and authentication security to create the most hardened NTP/PTP server. This makes the S600 an excellent choice for Zero Trust networks.

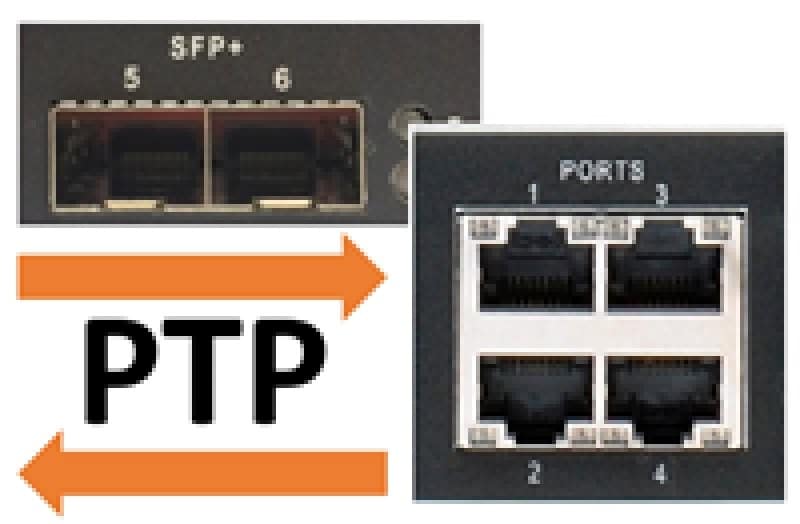

Multi-Port PTP Operations
The IEEE 1588 PTP output license enables PTP grandmaster operations that leverage the built-in hardware timestamping available in all SyncServer time servers. This single-option license allows the LAN 2, 3 and 4 ports, as well as the optional 10 GbE LAN 5 and 6 ports, to be uniquely configured as PTP grandmasters. This is a very cost-effective solution for scaling PTP grandmaster operations and increasing configuration flexibility. PTP can also be configured as an input time reference.

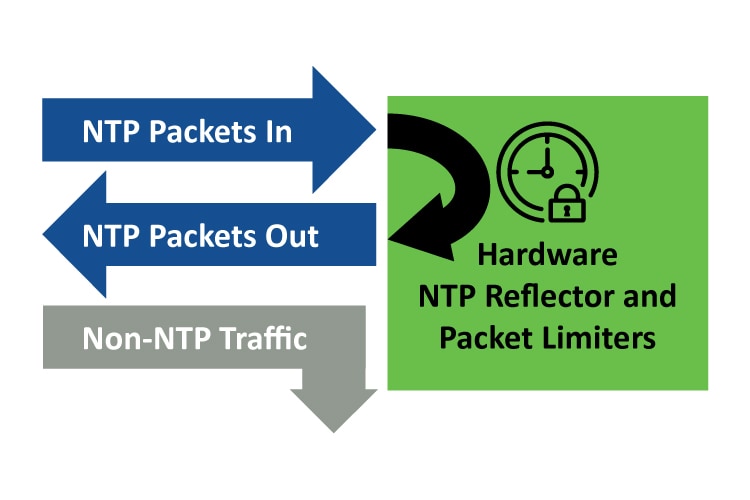

NTP Reflector Security
The SyncServer S600 time server implements real-time, hardware-based network packet processing in tandem with accurate hardware-based NTP timestamping, general packet limiting and alarming. This protects the S600’s CPU from excessive network traffic Denial-of-Service (DoS) attacks and provides extremely high-bandwidth, high-accuracy NTP operations.

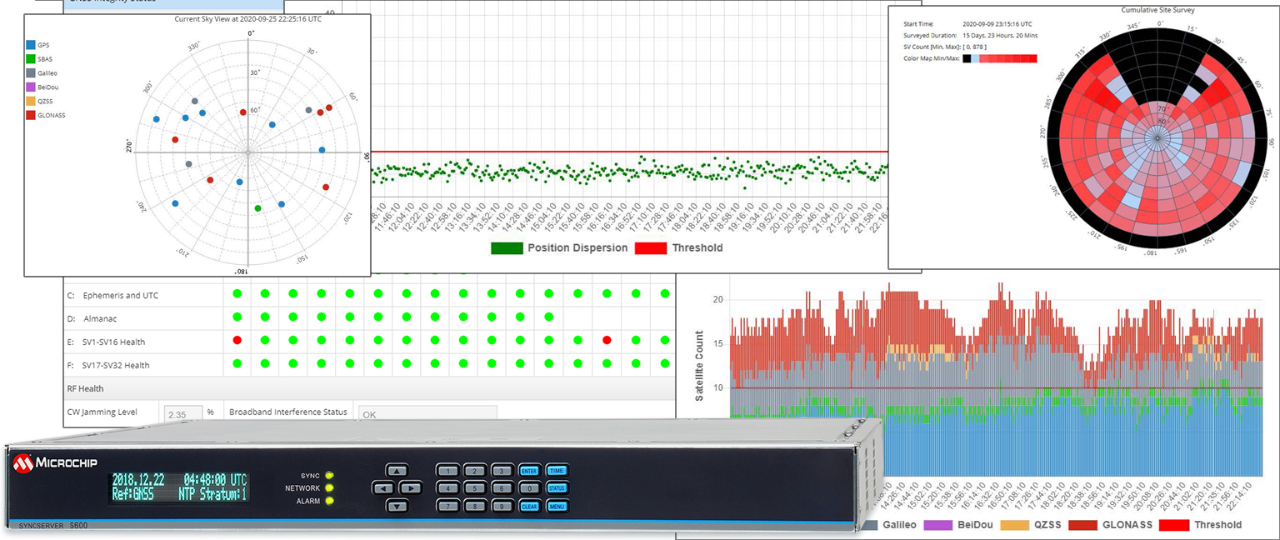

GPS Jamming and Spoofing Detection, Protection, Analysis
The SyncServer S600 time server’s BlueSky® technology option detects GPS jamming and spoofing related anomalies in real time to protect essential time and frequency outputs. Alarms are triggered when unexpected changes are detected and trust is compromised. The BlueSky technology detectors respond to protect the integrity of the S600’s time and frequency outputs.

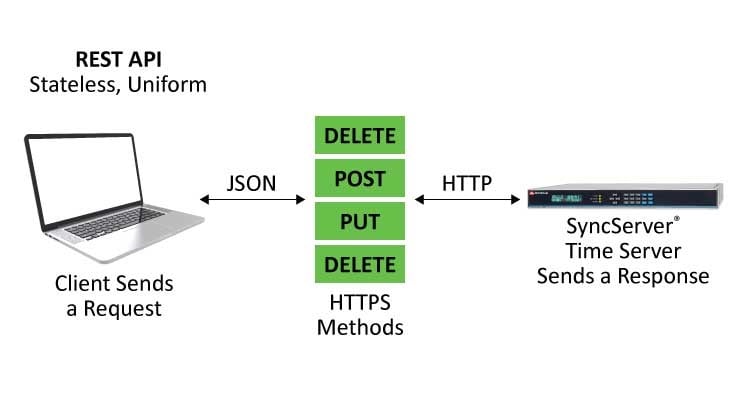

Extensive REST API
The SyncServer S600 time server’s REST API follows the industry-standard OpenAPI specification 3.0 to provide full-featured status and control of the S600. The easy-to-use interface allows users to program their applications to automate configuration tasks, get status information and customize monitoring of specific parameters to meet their unique requirements.
The REST API is included with the SyncServer S600.
Next Steps

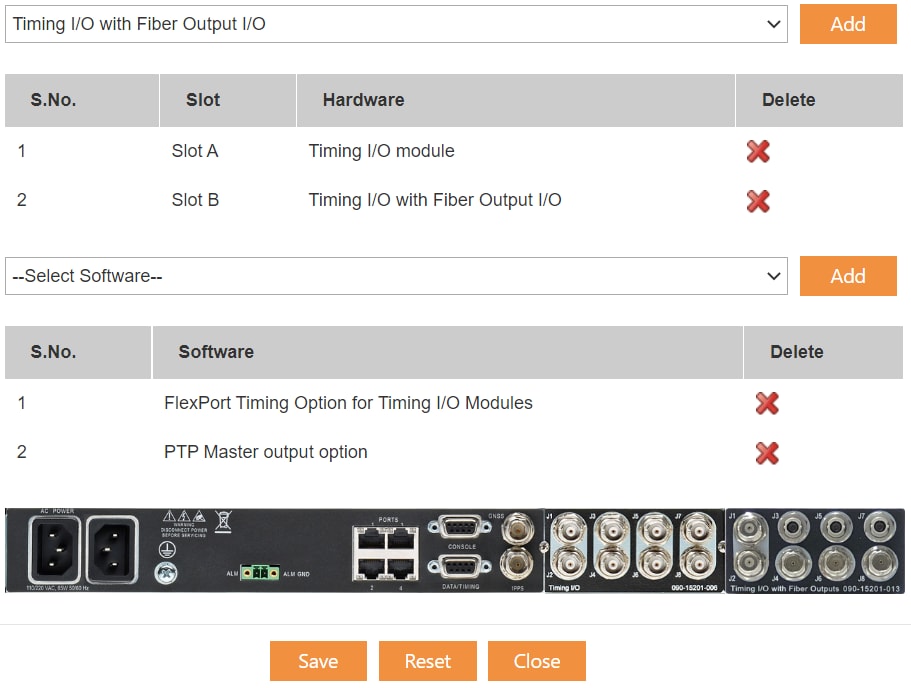

Custom Configure Your S600
- Visually configure your own S600
- Request/manage configurations and quotes
- Store configurations
- And much more
The S600 configurator is available on the myMicrochip portal. Simply register for immediate access or log in.
Request a Quote
Use the link below to get accurate price information quickly from our knowledgeable technical experts.
Documentation
Data Sheets
Application Notes
User Guides
Supporting Collateral
Trusted Time Technology for Zero Trust Networks
As the most secure Trusted Time technology network device, the SyncServer® S600 time server supports Zero Trust initiatives. It ensures the security of time and its sources and also complies with the fundamental pillars of Zero Trust including users, devices, networks and analytics.
