Timing for Intel^® FPGAs

Advanced Timing Solutions for Intel^®FPGA Applications

Our clock generators and crystal oscillators (XOs) deliver timing for Intel^® FPGAs, including the Arria^® 10 family of FPGAs. Explore the interactive diagram below to see how the SM806 clock generator and VC-711 oscillator enable SmartNICs for network acceleration. The SM806 clock generator provides multiple frequency outputs for Ethernet, PCIe^® and other system clocks with low jitter. You can customize our clock generators to provide the frequency plan you need in your design.

Interactive Block Diagram

Featured Products

VC-711

This quartz-stabilized, differential output oscillator operates off a 1.8-LVDS, 2.5V or 3.3V power supply in a hermetically sealed 7.0 × 5.0 mm ceramic package.

Explore VC-711

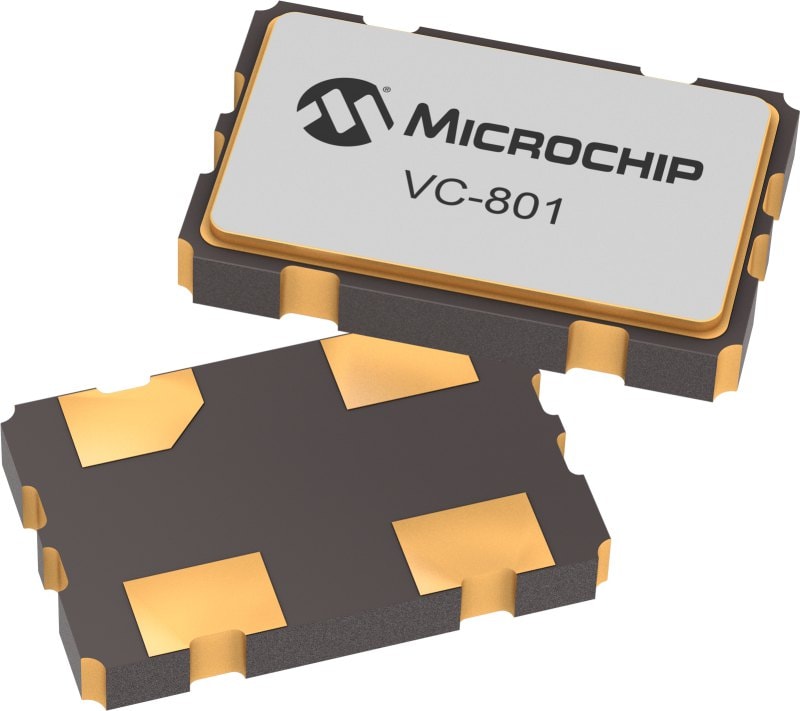

VC-801

The VC-801 XO is a quartz-stabilized square wave generator with a CMOS output. It uses fundamental or third overtone crystals, resulting in very low jitter performance and a monolithic IC that improves reliability and reduces cost.

Explore VC-801

VC-806

The VC-806 XO is a quartz-stabilized, low jitter differential output oscillator that operates off a 2.5V or 3.3V supply in a hermetically sealed 5 × 3.2 mm-ceramic package.

Explore VC-806

Documentation

Brochures

Intel Quick Reference Guide

PDF
